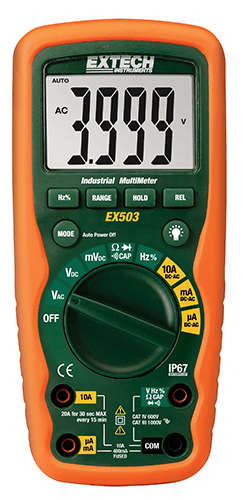

Extech EX503 Multimetru indistrial robus solid cu 10 functii

Cod: Extech EX503




Brosura produs PDF, 0.36 Mb

Descriere

Averaging DMM with 4,000 count large LCD display and waterproof housing

The EX503 offers an array of must-have multimeter measurements including capacitance, frequency (dual sensitivity for electrical and electronic applications), diode test and continuity. Other features include Data Hold and Relative Hold, and manual- or auto-ranging modes. The latter automatically adjusts the measurement range based on the detected source such as electrical components and electronic equipment. The meter features 0.5 percent accuracy and a CAT IV-600-volt safety rating, protecting users even on outdoor wiring. Includes EX503 heavy-duty digital multimeter, double-molded test leads, magnetic hanging strap, 9-volt battery, carrying case, and user manual.



Features:

  • Averaging DMM with 10 functions and 0.5% basic accuracy
  • AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode/Continuity
  • Dual sensitivity frequency functions (electrical/electronic)
  • 1000V input protection on all functions
  • 10A max Current
  • Data hold, Relative, Auto power off
  • 4,000 count large backlit LCD
  • Double molded housing for waterproof protection
  • Complete with double molded test leads, magnetic hanging strap, carrying case and 9V battery
