Multiplexed Communication Trainer ED-2990

Cod: ED-2990




Brosura produs PDF, 0.87 Mb

Descriere

EXPERIMENTS

  • PHASE LOCKED LOOP CIRCUIT
  • » Voltage Controled Oscillator
  • » Study of Phase Locked Condition
  • » Phase Detector & Low Pass Filter
  • DIGITAL SYNTHESIZER
  • » Error Signal Detector
  • » Study of Phase Comparator
  • » Programmable Division Circuit
  • » Transitory Response of Synthesizer
  • PAM(TDM) TRANSMITTER / RECEIVER
  • » Input Amp. Characteristics
  • » Transmission Timing
  • » Study of the PAM Multiplexer
  • » Study of the PAM Demultiplexer
  • » Characteristics of the PAM System Noise
  • PCM TRANSMITTER / RECEIVER
  • » Channel Circuit of the Transmitter
  • » Reception Synchronization & Alignment
  • » A/D Converter & Quantization Characteristics
  • » D/A Converter & Demultiplexer
  • » Characteristics of the PCM System Noise
  • FDM MULTIPLEXER / DEMULTIPLEXER
  • » Input Amp. & Balanced Modulator
  • » Study of the SSB Demodulator
  • » Study of the System Global Response
  • » Crosstalk Response



Features:

  • PLL and Digital Synthesizer
  • PAM, PCM, FDM and FSK Modem
  • 10types of module including DC Power Supply

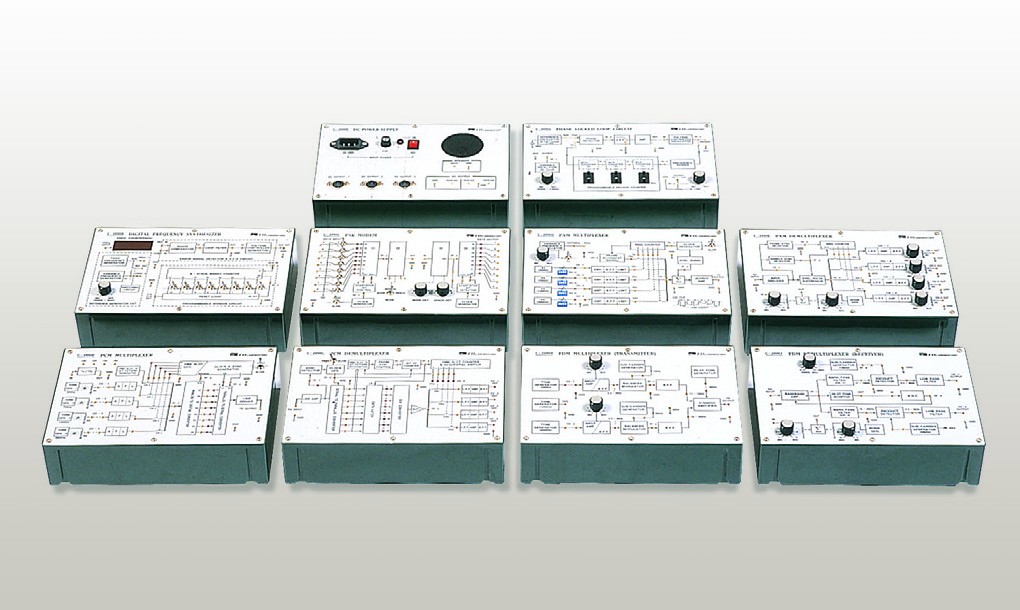

EXPERIMENTAL MODULES

  • U-2990A - Phase Locked Loop Circuit
  • U-2990B - Digital Synthesizer Circuit
  • U-2990C - MODEM Circuit(FSK, PSK)
  • U-2990D - PAM Multiplexer
  • U-2990E - PAM Demultiplexer
  • U-2990F - PCM Multiplexer
  • U-2990G - PCM Demultiplexer
  • U-2990H - FDM Multiplexer
  • U-2990J - FDM Demultiplexer
  • U-2990P - DC Power Supply
