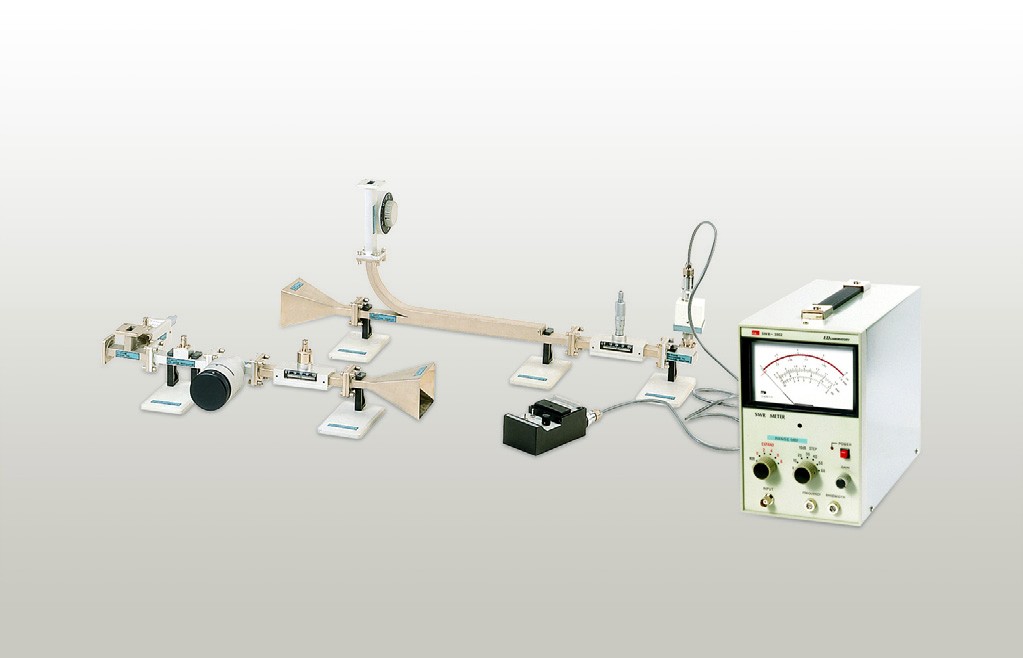

Microwave Trainer ED-3000

Cod: ED-3000




Brosura produs PDF, 0.74 Mb

Descriere

EXPERIMENTS

  • The Gunn Oscillator
  • Square-law Characteristics of Microwave Crystal Detector
  • Frequency Wavelength and Phase Velocity Measurements
  • Q and Bandwidth Measurements in Cavity Resonator
  • Power Measurement and Associated Errors
  • Measurement of Impedance
  • Measurement of Standing Wave Ratio(SWR)
  • Attenuation Measurements
  • Directional Coupler's Basic Properties
  • Study of a Waveguide Hybrid-T



COMPONENT LIST

  • Gunn Oscillator
  • Fixed Attenuator
  • Reflector with Stand
  • Slide Screw Tuner
  • Terminator
  • Supporter and Holder(7ea)
  • Slotted Line
  • Directional Coupler
  • Power Supply
  • Pin Modulator
  • Horn Antenna(2ea)
  • Coaxial Cable with Connector
  • Crystal Detector
  • Hybrid Tee
  • Square-wave generator
  • Frequency Meter
  • Wave to Coax Adapter
  • Variable Attenuator
  • Wave-guide(2ea)
