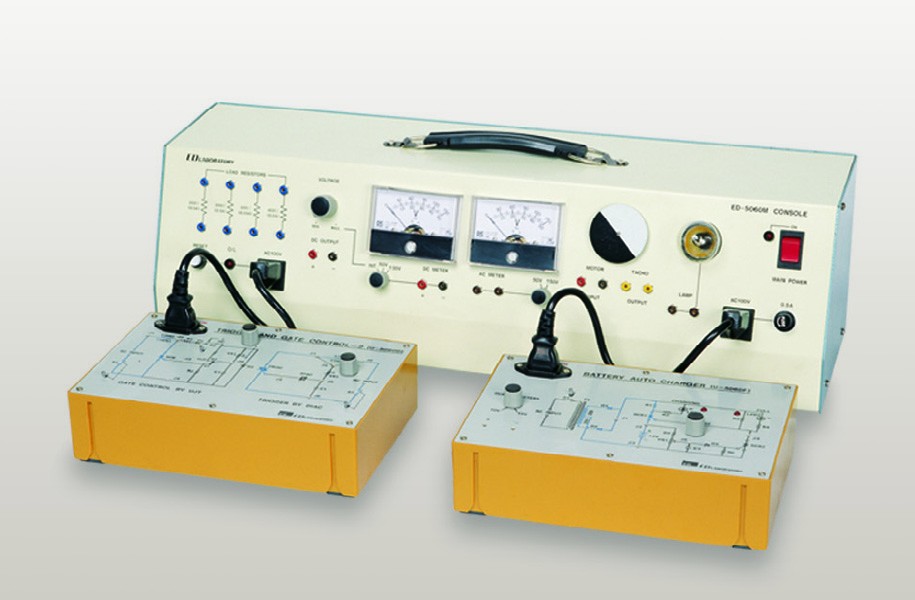

SCR Trainer ED-5060

Cod: U-5060A/U-5060B/U-5060C/U-5060D/U-5060E/U-5060F/U-5060G/U-5060H/U-5060J




Brosura produs PDF, 0.78 Mb

Descriere

SPECIFICATIONS

  • Load Resistor
    • 100?~1100?
    • 200?(50W) : 2ea, 300?(30W) : 1ea, 400?(30W) : 1ea
  • Input Voltage : AC 220V, 50/60Hz
  • Dimension : 610(W) x 210(H) x 195(D)mm
  • Weight : 11.2kg
  • Dimension of Module : 250(W) x 65(H) x 166(D)mm
  • System Weight : 20kg
  • Load Lamp : AC 110V, 10W
  • DC Motor : 12V 4000RPM Max.(Tacho Generator Section)
  • Metering
    • DC Range : INT, 50/150V
    • AC Range : 50/150V
  • DC Output : 0~25V Continuous Variable 1A
  • AC Output : Overload Protection 1A Max.



ACCESSORIES

  • Patch Cord(ø2 Plug) : 1set
  • AC Power Cord : 1ea
  • Module Power Cord : 2ea
  • Experimental Manual : 1ea
