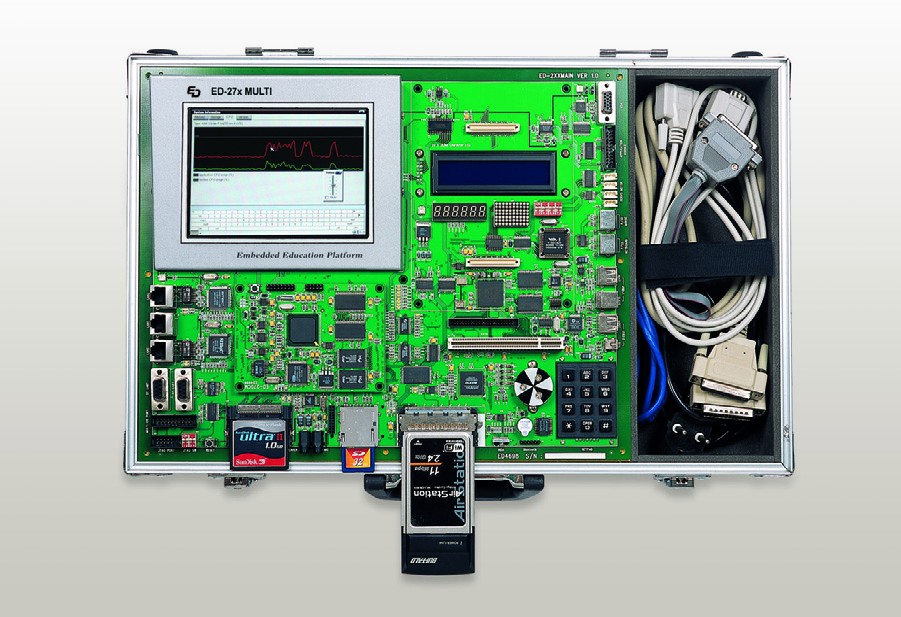

Embedded Software Design Multi Platform ED-270M

Cod: ED-270M




Brosura produs PDF, 0.72 Mb

Descriere

SPECIFICATIONS

Hardware

  • CPU
    • CPU
      • ED-270M : PXA270(520MHz)
  • Memory
    • FLASH
      • ED-270M : 32MByte
    • SDRAM : 128MByte(32bits Access)
    • SRAM : 1MByte(32bits Access)
  • Display
    • TFT LCD : Touch Pad(6.4inch), 16bits Color, 640x480
  • Interface
    • Ethernet
      • 10/100Mbps Ethernet(SMSC LAN91C111)-2port
      • 10Mbps Ethernet(CS8900A)-1port
    • Serial Port
      • Full Function UART-1port, Standard UART-1port
      • Bluetooth UART-1port
    • USB 1.1 : Host(SL811HST), Client
    • USB 2.0 : TD242LP(HOST, OTG)
    • PS/2 Port : Keyboard, Mouse
    • Touch-Screen : ADS7846
    • Slot : PCMCIA - 1slot, CF-1slot, MMC/SD-1slot
    • RTC : Epson RTC4513 Real Time Clock
    • IrDA : HDSL3600
    • IDE : 44pin IDE Connector
    • PCI : 32bit PCI-1slot
  • Control
    • LED : Status LED
  • Audio
    • Stereo I/O : Cirrus CS4202
  • Pin
    • Ext. I/O : 80pinx2 Connector
    • App. I/O : 20pin Connector
    • Bluetooth I/O : 6pin Connector
    • Servo Motor : 4port
  • Debug
    • Multi-ICE : Multi-ICE 20Pin Connector
    • JTAG : PC Interface 10Pin Connector
  • Basic Characteristics
    • Input Voltage : 220V
    • Size : 490(W) x 160(H) x 320(D)mm

Software

  • OS
    • Qplus/ESTO : ETRI Linux & Embedded System Tool Kit
    • WinCE, net 4.2 : Window CE
    • Boot Loader : uboot-1.1.4
    • Kernel : Linux-2.6.11
    • File System : Ramdisk(Image, Source)
  • Software
    • Application
      • Network Application Source
      • Qt/Embedded Image
      • Graphic & Text Display Control
      • Application Source
      • I/O Interface Application Source
    • Device Driver
      • 8 bits LED
      • 7-Segment Control Source
      • UART Application Source(Bootloader)
      • Web Service & Remote Control Source
      • AC97 Audio Codec Driver Source
      • ADS7846 Touch-screen Driver Source
      • PCMCIA Device Driver Source
      • RTC4513 Device Driver Source
      • IrDA Device Driver Source
      • MMC/SD Device Driver Source
      • CF Card Device Driver Source
      • LAN91C111 Device Driver Source
      • LAN CS8900A Device Driver Source
