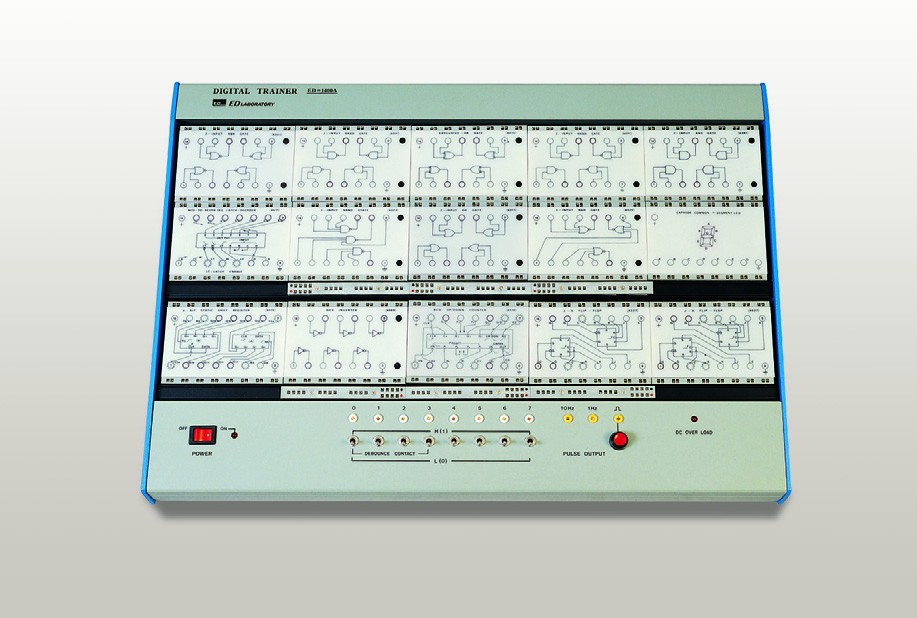

Logic/Digital Circuit Trainer ED-1400A

Cod: ED-1400A




Brosura produs PDF, 0.59 Mb

Descriere

SPECIFICATIONS

  • Logic Function
    • AND, NAND, OR, NOR, INVERTER, EXCLUSIVE OR, J-K
  • FLIP-FLOP, D-FLIP-FLOP, SHIFT REGISTER, DECODER, BCD
  • COUNTER, 7-SEG DISPLAY
  • Operating Temperature : 0~45°C, below 80% R.H.
  • Input Voltage : AC 220V 50Hz/60Hz
  • Dimension
    • Module : 98(W) x 24(H) x 67(D)mm
    • Main Frame : 510(W) x 110(H) x 360(D)mm
  • Weight : 7kg
  • Logic Display
    • Logic Output : Red LED
    • Logic Input & Control Indicator : Green LED
  • Module Capacity : CMOS or TTL : 15 Modules
  • Clock Pulse Output : 1Hz, 10Hz(Square Wave 4.5V Approx.)
  • DC Output : +5V 1A(for Logic Module)
  • Logic Switch : 8 Toggle Switches(bounceless output)
  • DC Power Bus & Station : 4-Jack x 30 Station
  • Protection : DC overload alarm & indication



ACCESSORIES

  • Jumper Cord(5-color) : 1set
  • AC Power Cord : 1ea
  • Operating Manual : 1ea
