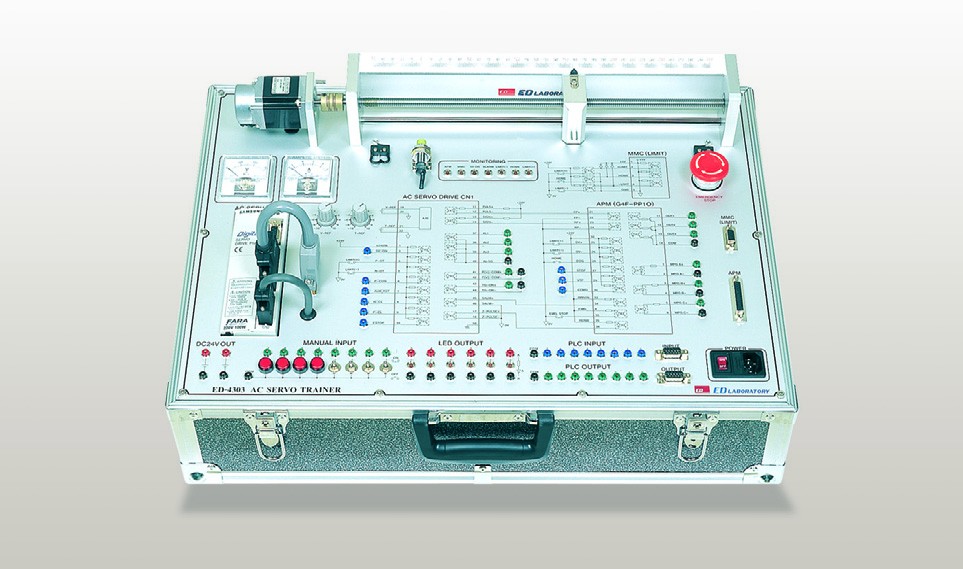

AC Servo Motor Trainer ED-4303

Cod: ED-4303




Brosura produs PDF, 0.57 Mb

Descriere

EXPERIMENTS

  • Uniformity starting point using APM
  • Velocity and position control using APM
  • Operation mode using APM
  • ZONE/POINT operation using APM
  • Limit detection and return to starting point using MMC
  • Velocity and position control using MMC



SPECIFICATIONS

SAMSUNG CSMT (100W CLASS) MOTOR

  • Rated Output
    • Single Phase : AC 220V 100W
    • Rating/Max. Speed : RPM 3000
    • Current (Continuous) : 1.0A, Max. 3.0A
    • Max. Torque : 9.7kgf·cm, 0.95N·m
    • Weight : 0.4 kg
    • Applied Encoder : 17bit Serial Encoder (Incremental, Absolute)



SAMSUNG CSDJ SERIES SERVO DRIVER

  • Small-sized, light-weighted, and power source-integrated product in full digital method using 32-bit high speed DSP
  • Main Circuit Power Source
    • 3-Phase 220V(+10%, -15%, 50/60MHz)
  • Power Source
    • Single Phase 220V(+10%, -15%, 50/60MHz)
  • Control Type : PWM control using IPM
  • Encoder
    • 2048/2500/10000 Pulse/Rev. (Incremental, Absolute)
  • Dynamic Brake
    • Servo/Controller off
    • Operable with the built-in alarm activated



SAMSUNG CSDJ SERIES SERVO DRIVE CONTROL

  • Velocity Control Range : 1 : 5,000
  • Frequency Alteration : 550Hz
  • Acceleration/Deceleration Time Constants Setting
    • 0~60 sec
  • Input Signal : Sine+Pulse, 90° phase difference
  • Pulse Types : 2-phase Pulse (A+B), CCW Pulse, CW Pulse
  • Pulse Forms
    • Line Drive(+5V), Open Collector(+5, +12V, +24V)



ACCESSORIES

  • APM Cable : 1ea
  • PLC I/O Cable : 2ea
  • TIP Jack Connection Cable : 1set (Black : 20ea, red : 20ea)
  • JOG Operator : 1ea
  • Program CD : 1ea
  • AC Power Cord : 1ea
  • Operating Manual : 1ea
