Basic Electricity & Electronics Trainer ED-2000E

Cod: ED-2000E




Brosura produs PDF, 1.02 Mb

Descriere

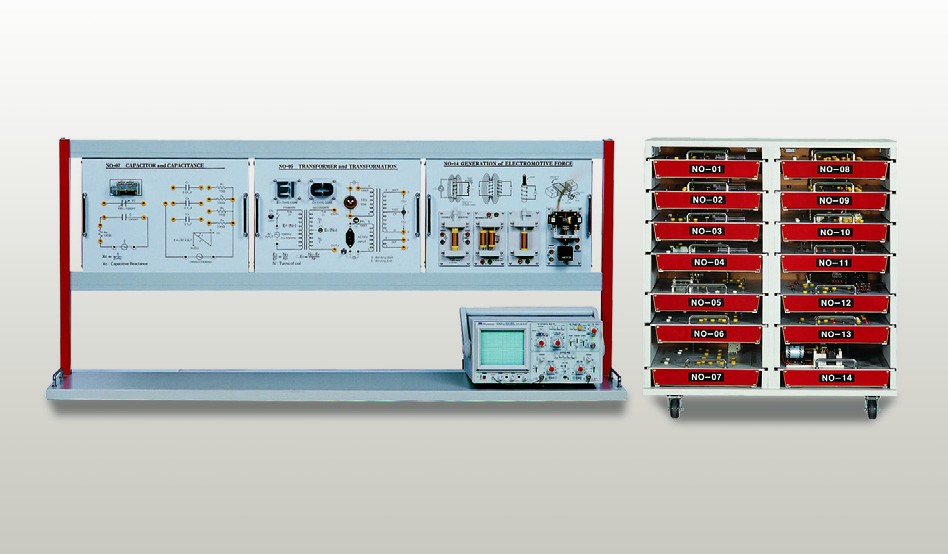

EXPERIMENTAL BOARDS

  • NO-01
    • OHM’s Law
  • NO-02
    • Voltmeter
  • NO-03
    • Amperemeter
  • NO-04
    • Ohmmeter
  • NO-05
    • Transformer & Voltage Transformation
  • NO-06
    • Inductor & Inductance
  • NO-07
    • Capacitor & Capacitance
  • NO-08
    • LC Circuit & Resonance
  • NO-09
    • KIRCHHOFF’s Law
  • NO-10
    • Resistance Bridge
  • NO-11
    • 3-Phase Transformer Connection
  • NO-12
    • Relay & Latch Circuit
  • NO-13
    • ø1 Half & Full Wave Rectifier
  • NO-14
    • Generation of Electromotive Force
    • Mutual Inductance Module : 2ea
    • AC ø1 Generator Module : 1ea



ACCESSORIES

  • Experimental Board Rack(BR-3)
    • 1480(W) x 620(H) x 320(D)mm(Capacity : 3Boards)
  • Board Storage Cabinet(BS-14)
    • 670(W) x 850(H) x 490(D)mm(Capacity : 14Boards)
  • Patch Cord(ø4 Plug) : 1set
  • AC Power Cord : 1ea
  • Experimental Manual : 1ea
  • Option Modules
    • AC ø3 Generator(ACG-03), DC Generator(DCG-02)
