Computer-Integrated Manufacturing Trainer ED-CIM

Cod: ED-CIM




Brosura produs PDF, 1.2 Mb

Descriere

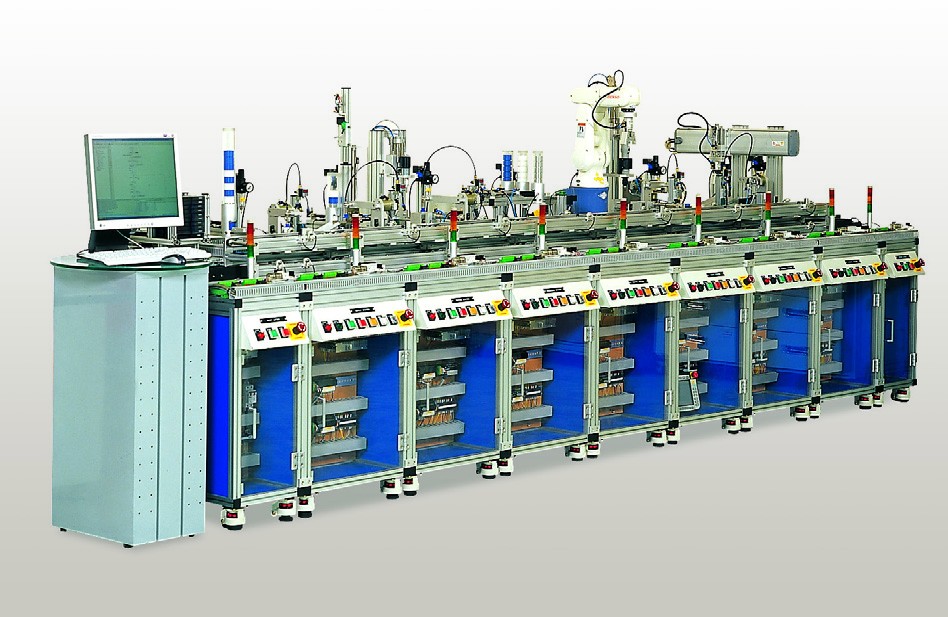

The Computer-Integrated Manufacturing System (ED-CIM) is an educational purpose, training system that demonstrates the logistics system based system approach that is being used currently by industry. Th ED-CIM comes with powerful user friendly software that integrates the Programmable Logic Controller (PLC) related control with the PC to offer real-time system monitoring. This feature allows users to set up experiments that use advanced control methods for controlling mechanical elements in the system. The ED-CIM course materials and experiments are designed to encourage student interested in current manufacturing systems. Students will perform various activities that will guide students on how to set up, control, perform trouble shooting and adapt various command languages to control systems within the CIM. Students will gain a greater understanding of how these systems are used in real world industrial applications.



Features:

  • Computer-Integrated Manufacturing Training System under the application of advanced control technology for real field experiences
  • Capable of "per unit" configuration into the two or more processes, or entire processes for customized experiments by combining each process
  • Gives students an insight into the production mechanism through firsthand practices in disassembly and assembly of hardware components
  • Excellent "per process" configuration(Supply  Inspection  Fabrication  Classification  Robot  Assembly  Storage)
  • Palette transport by conveyors which are the distributional basis of production system
  • Transport and supply by an industrial robot in the robot processing
