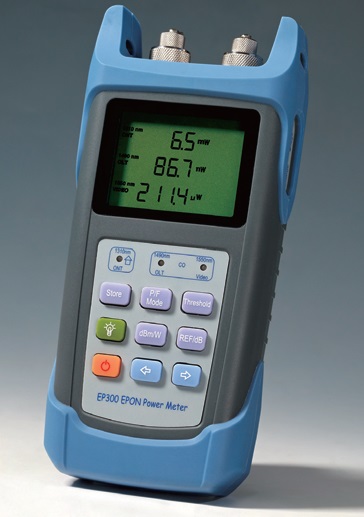

Power metru PON fibra optica Deviser EP300

Cod: Deviser EP300




Brosura produs PDF, 0.34 Mb

Descriere

The EP300 enables quick testing of all PON signals on the network. It features pass/warning/LED indicators with user-defined thresholds.The test result can be store and analysis by PC software. EP300 is the best choice for your business and maintenance of FTTX.



  • Simultaneous measurement of all EPON signal(1310 nm, 1490 nm and 1550 nm) on the fiber.
  • Store up to 1800 test results, which are downloadable via USB interface.
  • Pass/Warning/Fail LED indicators (12 threshold values).
  • Compact, Waterproof & shockproof.



Optical index

1310

1490

1550

Measurement  range(dBm)

CW

10 ~ -40

14 ~ -40

26 ~ -40

BW

8 ~ -30

Pass-through insert loss

<  0.4

Spectral passband nm

1260-1360

1480-1500

1540-1560

Wave Isolation (dB)

1490

>50

1310

> 40

1310

> 40

1550

>50

1550

> 40

1490

> 40

ORL   ( dB )

-55

Fiber Type

Single-mode fiber

Connector Type

FC/PC    SC/PC

Common index

Precision

±0.21dB@(22±2.5)?@1300nm/1490nm/1550nm

Power  uncertainty

0.5  dB

unit

dBm    dB    mW

Resolution

0.1  dB

power

3.6V battery /  5vadapter

display

LED

Threshold sets

12 configurable threshold sets with toolbox software

Data storage

Store up to 1800 test results and built-in USB interface for file transfer and download
