Analizor OTDR locator defecte fibra optica Deviser AE2300

Cod: Deviser AE2300




Brosura produs PDF, 0.72 Mb

Descriere

Model Guide

Type

Wavelength (nm)

Dynamic

Range (dB)

Event Dead Zone (m)

ATT Dead Zone (m)

AE2300

1310±20/1550±20

33/31

1.5

<10

AE2300H

1310±20/1550±20

36/34

0.8

<4

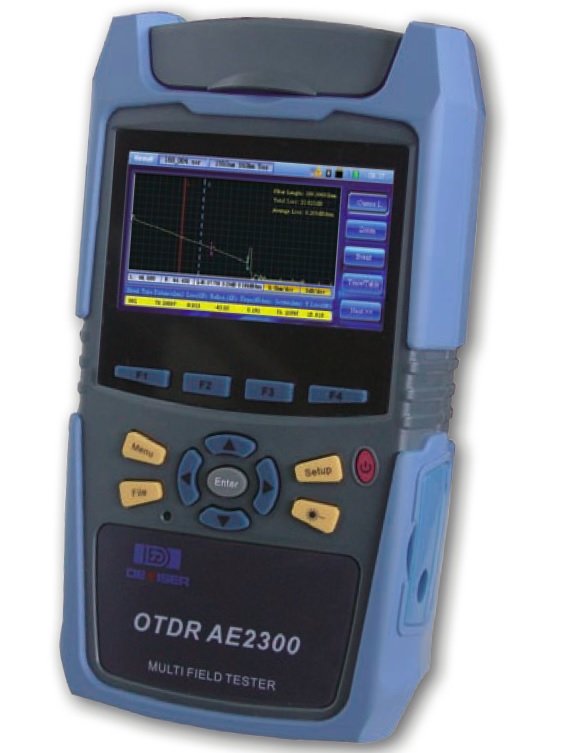

      AE2300L este un ODTR portabil de înalta performan?a, conceput pentru instalarea ?i între?inerea re?elelor de fibra optica. Acest OTDR u?or ?i robust include un VFL, care sa permita utilizatorului sa gaseasca rapid deteriorarile ?i sa localizeze defectele.

Beneficii cheie

·         Butonul pentru testare automata simplifica localizarea defectelor

·         Analiza Admis/ Respins  accelereaza interpretarea rezultatelor ?i asigura rezultate consistente

·         Masurarea foarte precisa cu zona moarta minima <0.8m

·         Viteza de masurare rapida, care poate masura o fibra de 100 km în 30 de secunde

·         Design robust rezistent la vibra?ii, praf ?i umiditate având un ecran tactil TFT de 4.3 inch

·         Durata de via?a lunga a bateriei permite utilizatorului sa testeze toata ziua, fara reîncarcarea bateriilor

·         Detectare de fibre live pentru avertizarea utilizatorului cu privire existen?a unei fibre live
Detalii complete si preturi gasiti pe www.testmag.ro

High Accuracy
Minimum Dead Zone < 0.8m
Fast Test
Minimum Test Time can be set as 5s and the 100km test can be completed in 30s.
Easy Operation
4.3 Inch TFT Color Touch Screen. One-button Operation to complete the test and locate the event.
Small Size and ideal for field
Handle design. Shock proof, water proof and resistant to dust.
Long Working Time
Changeable High Capability Li-Ion Battery with more than 8 hours operation time.



Multiple Interfaces
RJ45: Remote Control via PC and data-share
USB: Easy data transfer to U-disk and PC
Memory: Maximum 3000pcs testing result
Removable Fiber Adapter and Easy to clean



Efficient Workbench PC Software
The software is designed for offline analysis and printing the test report whose format is *.SOR. The flexible configuration of the software makes it easy to generate complete professional OTDR report. It has unique remote network data control function and cab easily gather internal data from the remote equipment.





Specifications

Distance

5m-200km

Pulse Width

5ns-20µs

Measurement Time

User Defined

Distance Accuracy

±(0.5m+0.0001%×Distance+Sampling Resolution)

Attenuation Accuracy

0.005dB

Loss Threshold

0.001dB

Loss Resolution

0.001dB

Distance Resolution

0.03m

Sampling Quantity

128000

Linearity

0.05dB/dB(AE2300)  0.03dB/dB(AE2300H)

Data Storage

3000pcs

VFL

10mW    AE2300(Option), AE2300H(Standard)

LCD

4.3 Inch, 16:9 480*272 Dot-Matrix TFT Touch Screen

Fiber Adapter

FC/PC, SC/PC

Interface

USB(Principal and subordinate each), RJ45

Dimension(L*W*H)

135mm*250mm*70mm

Power

AC/DC Adapter (Input AC 90-240V±10%, Output 12V)

Working Temperature

? ~ 40 ?

Storage Temperature

 -20 ? ~ 70 ?

Relative Humidity (RH)

<80%

Weight

<1kg

Battery

Rechargeable Li-Ion Battery Inside (Charging Time< 4hours, Working Time> 8hours)
