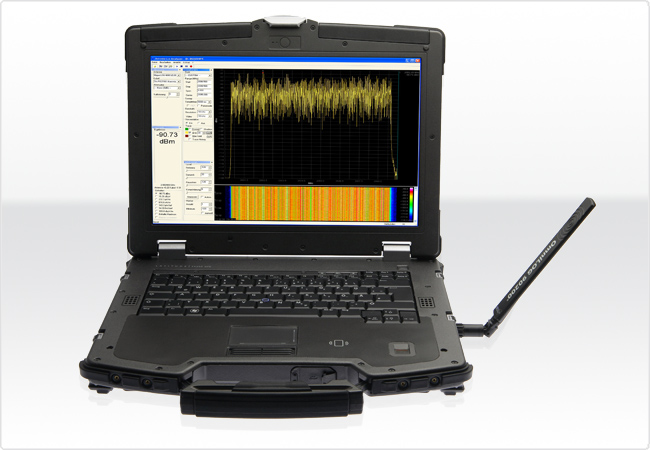

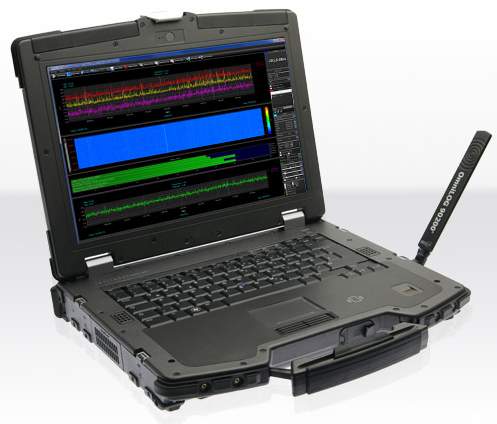

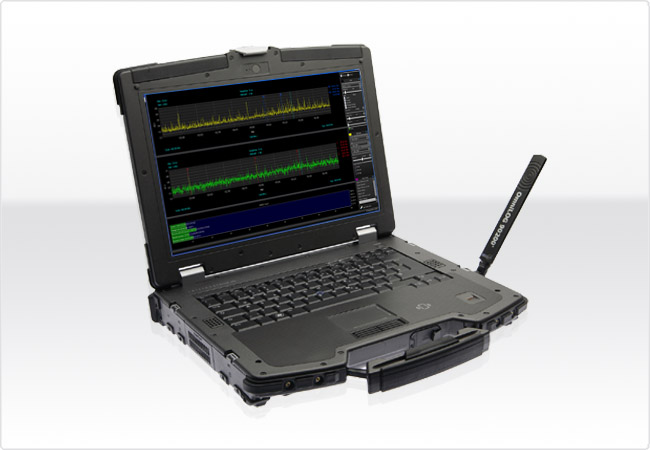

Analizor spectru frecvente inalte cf. standarde militare pentru armata 1MHz..9.4GHz Aaronia HF-XFR

Cod: Aaronia HF-XFR



Brosura produs PDF, 0.68 Mb


Descriere

  • Frequency range: 1MHz to 9,4GHz
  • DANL: -170dBm(1Hz)
  • Max. power: +20dBm (opt. +40dBm)
  • Lowest sample time: 5mS
  • Resolution (RBW): 200Hz to 50MHz
  • EMC filter: 200Hz, 9kHz, 120kHz, 200kHz, 1,5MHz, 5MHz
  • Units: dBm, dBµV, V/m, A/m, W/m², dBµV/m, W/cm² etc.
  • Detectors: RMS, Min/Max
  • Demodulator: AM, FM, PM, GSM
  • Low noise Preamp: Integrated
  • Input: 50 Ohm SMA RF-input (f)
  • Accuracy: +/- 1dB (typ.)
  • Dimensions (L/W/D): 257x353x56 mm
  • Weight: 5kg
  • Warranty: 2 years



Highlights integrated Spectrum Analyzer:

  • Including Option 002 (high accurate 0,5ppm TCXO timebase)
  • Including Option 020 (15dB internal low noise preamplifier, switchable)
  • 14Bit Dual-ADC
  • DDC Hardware-Filter
  • 150 MIPS DSP (CPU)
  • Vector (I/Q) measurement
  • Real-time Peak Power Detector (option)
  • Internal speaker
  • Included HyperLOG 60100 EMC directional antenna
  • Included OmniLOG 90200 radial isotropic antenna

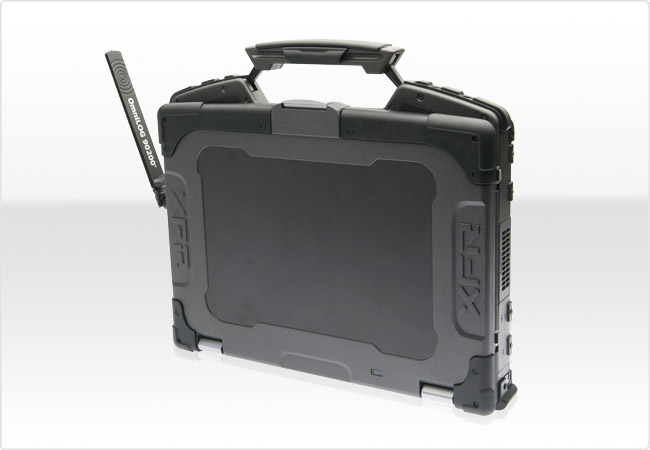

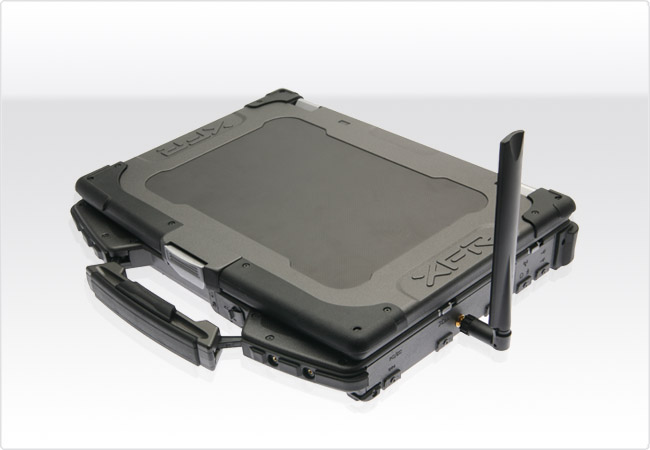

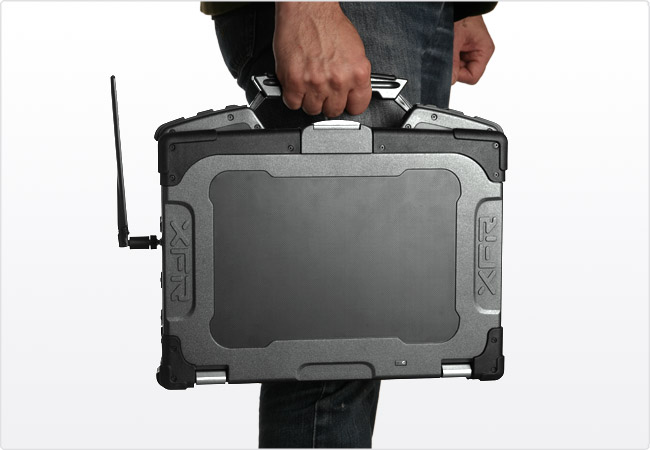

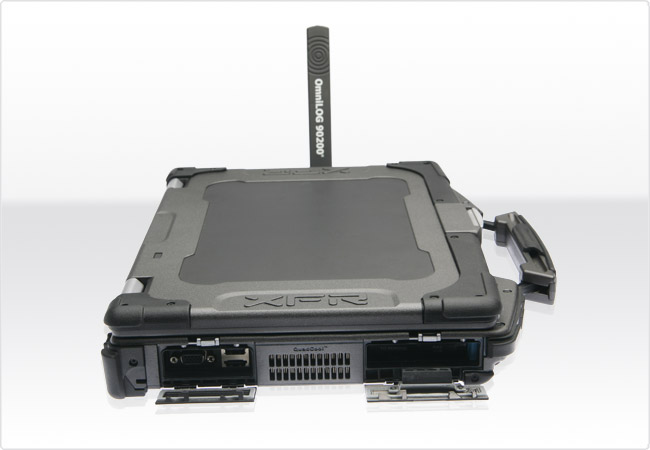

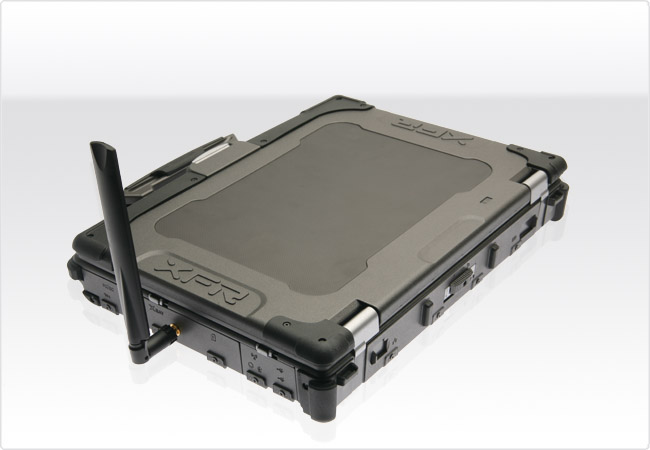

Highlights Outdoor Notebook:

  • Exclusive Ballistic Armor Protection System to meet and exceed real world and military standards MIL-STD-810F
  • PrimoSeal technology with highest Ingress protection rating (IP65)
  • Prozessor: Intel Core 2 Duo P8700(2,53GHz,1.066MHz,3MB) with Intel GMA X4500HD and fingerprint-reader
  • Monitor: 14,1" widescreen WXGA (1280x800)
  • Memory: 4096MB (2x2048) 800MHz DDR2 Dual Channel
  • Hard Disk: 64GB shock absorbance (5400 1/min) drive
  • Battery: primary 6 cell 54Wh LI-ION
  • Operating system: Windows 7





Examples for possible analysis and measurements within frequency range (1MHz - 9,4GHz):

  • Pre-Compliance-Test
  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • Directional Radio
  • 5GHz WLAN
  • PAR Radar
  • etc.


Accesorii standard

  • HF-XFR RF Outdoor Spectrum Analyzer
  • incl. Option 002 (high accurate 0,5ppm TCXO timebase)
  • incl. Option 020 (15dB internal low noise preamplifier, switchable)
  • LCS & MCS Spectrum Analysis Software (installed)
  • HyperLOG 60100 EMC directional antenna (black)
  • OmniLOG 90200 radial isotropic antenna
  • Pistol grip with mini tripod function
  • 1m SMA cable
  • SMA tool
  • Rechargeable battery (installed)
  • Battery charger
  • English manual (on CD)
