Set antene EMC masura camp electric si magnetic apropiat DC..6GHz Aaronia PBS1/ PBS2

Cod: Aaronia PBS1/ PBS2



Brosura produs PDF, 0.88 Mb


Descriere

  • Near Field Probes compatible with any Spectrum Analyzer or Measurement Receiver
  • Design: Active E & H near field probes
  • Frequency range: DC (1Hz) to 6GHz
  • Nominal impedance: 50 Ohm
  • Preamplifier: UBBV2 (40dB, DC to 8GHz)
  • Gain: Diff. Depending on probe (see data sheets)
  • Antenna factor: Depending on probe (see data sheets)
  • RF connection: SMB (m) or SMA (see optional adapter)
  • Tripod connection: 1/4"
  • Warranty: 10 years



Highlights:

  • 5 different near field probes to measure H and E fields offer optimum sensitivity and spatial resolution at different frequencies
  • Passive or active mode by removing/adding included preamplifier
  • Preamplifier with integrated LiPo battery (up to 3,5h run time)
  • Covered with insulating layer for safe measurements
  • Very handy design incl. rubber coated grip
  • Very small size. Perfect for exact locating of interference sources. Offers access to tight spaces
  • Integrated electrostatic shield eliminates common-mode pickup
  • Can be driven by a signal source to generate fields for electromagnetic susceptibility testing
  • Gain rises very linear with frequency which offers high accuracy
  • Preamplifier offers integrated calibration data on EEprom (readout via integrated USB interface)
  • Typical standard calibration data and Excel sheet for dBm to V/m and A/m conversion (on CD)
  • Extra wide frequency range up to 6GHz
  • Suitable for field-strength and EMC measurements due to high precision
  • Including tripod connector for perfect adjustment and reproducibility





Examples for possible analysis and measurements within frequency range (DC - 6GHz):

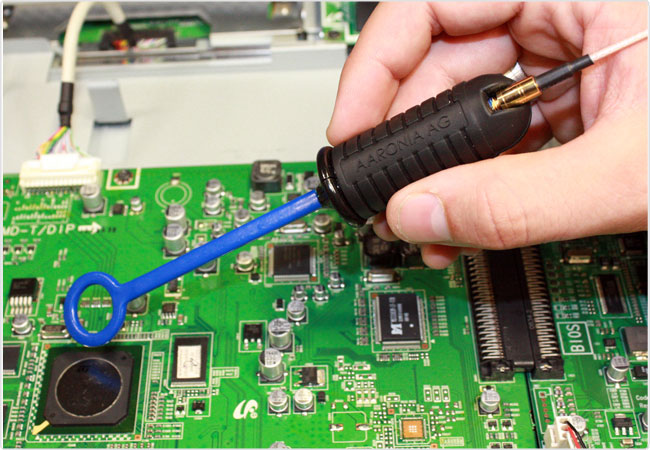

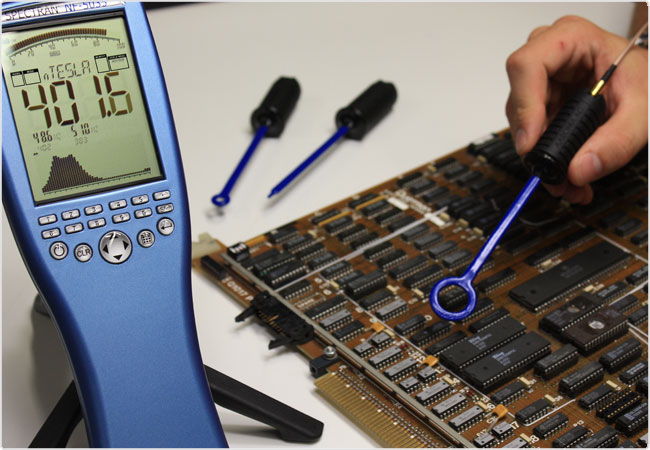

  • Finding sources of EMC emissions problems or injecting fields into circuits to identify those which are EMC-susceptible.
  • Pre-Compliance-Test
  • Traction power
  • Power lines and cables
  • Transformer
  • Power supplies and harmonics
  • Energy saving light bulbs
  • Switching power supplies
  • TFT and LCD monitors and TVs
  • 135kHz RFID
  • DSL
  • ADSL
  • VDSL
  • 13,56MHz RFID
  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • 5GHz WLAN
  • etc.

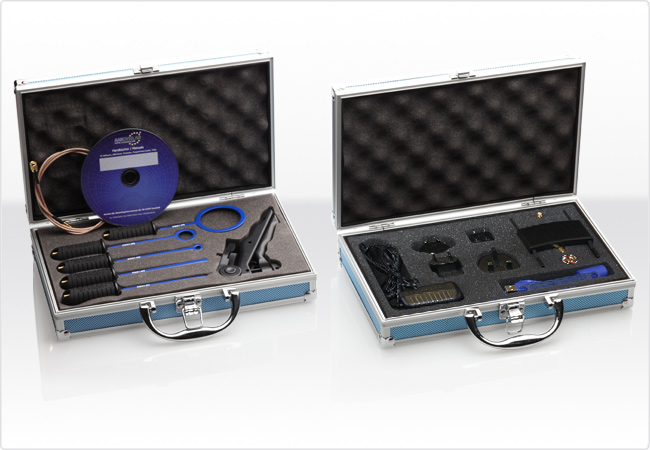

Accesorii standard

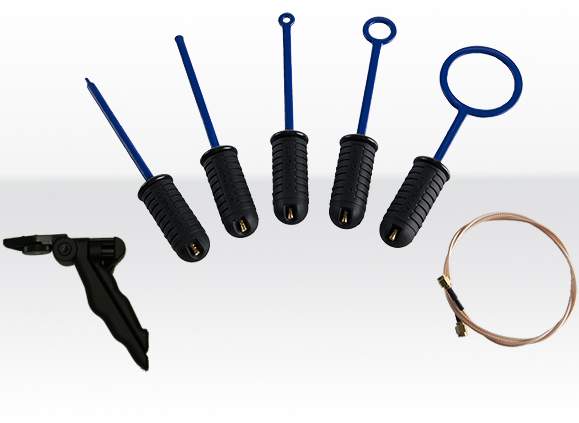

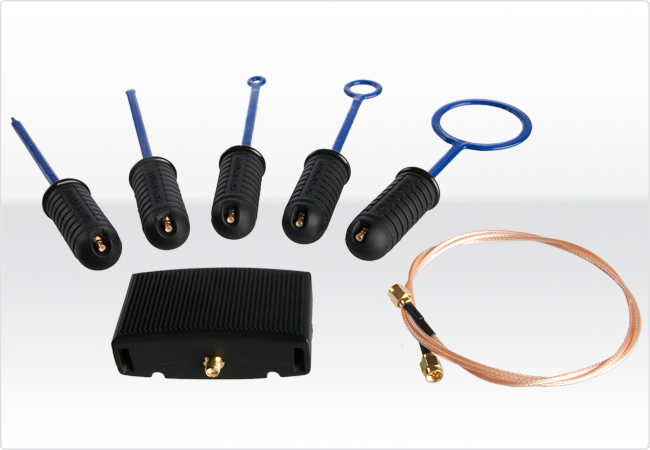

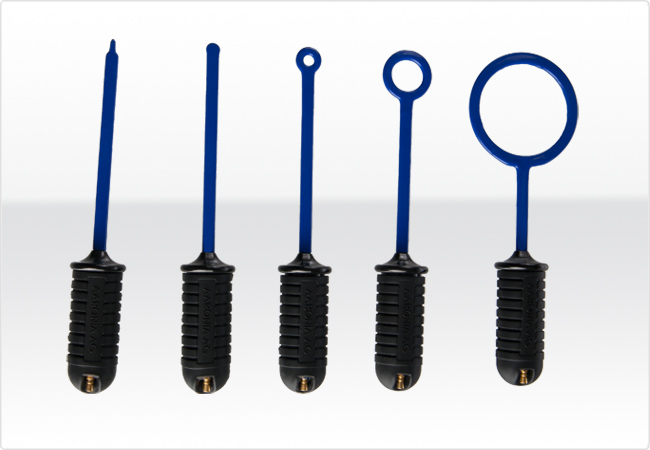

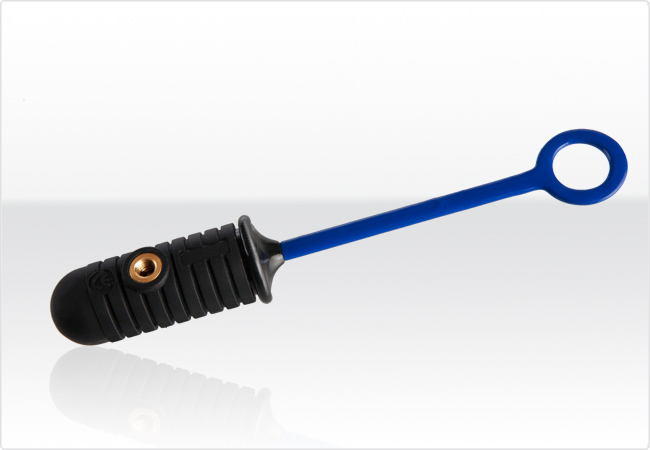

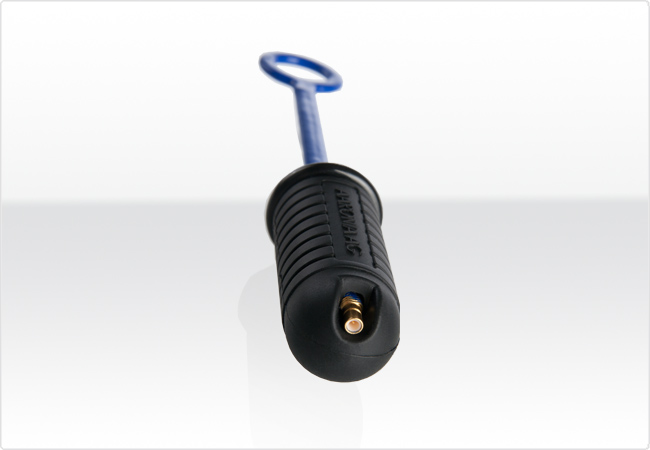

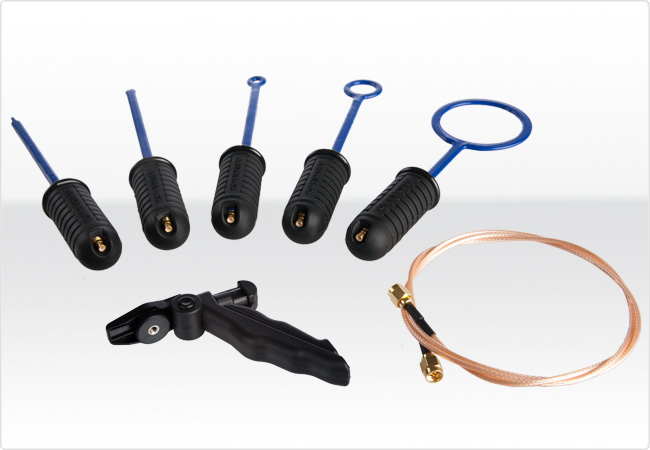

  • 1 x 50mm magnetic (H) field probe PBS-H4
  • 1 x 25mm magnetic (H) field probe PBS-H3
  • 1 x 12mm magnetic (H) field probe PBS-H2
  • 1 x 6mm magnetic (H) field probe PBS-H1
  • 1 x stub electric (E) field probe PBS-E1
  • UBBV2 EMC broad band RF Preamplifier
  • 2 mounting brackets for SPECTRAN
  • LiPo-Battery (integrated in UBBV2)
  • Battery charger and power supply for UBBV2 broad band PreAmp incl. international adapter set
  • SMA tool
  • Cleaning brush

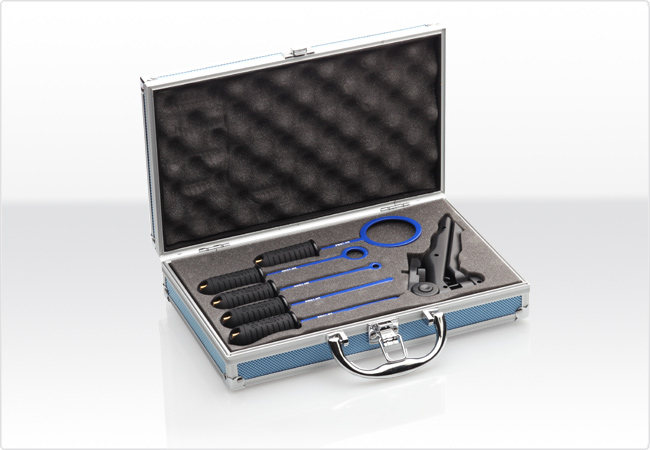

  • Aluminum carrying case with foam protection

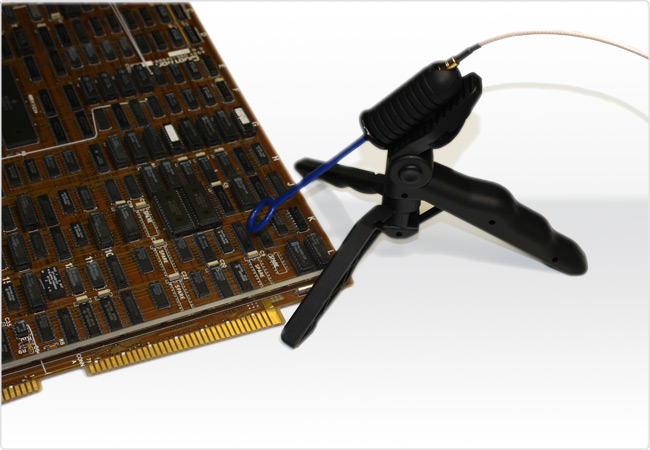

  • Pistol grip with mini tripod function
  • SMB to SMA cable (1m)
  • Typical calibration data and Excel sheet for dBm to V/m (electric field), A/m, T and G (magnetic field) conversion (on CD)
