AARONIA BPSG4 OEM Generator RF 35MHz..4.4GHz

Cod: AARONIA BPSG4 OEM




Brosura produs PDF, 0.68 Mb


Descriere

  • Frequency range: 35 MHz to 4,4 GHz
  • Up to +17dBm output power (female SMA-connector)
  • Smallest power level: -48dBm
  • Up to 65dB dynamic range
  • Frequency accuracy: 15Hz (<100MHz), 150Hz (<1GHz), 600Hz (<4GHz)
  • Modulations: AM, FM, PM

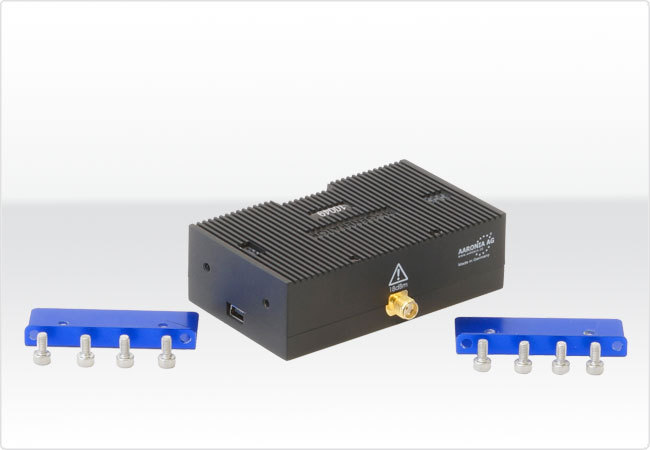

  • Mounting drillings from all sides. Perfect for OEM installation
  • Onboard TCXO for very high frequency accuracy

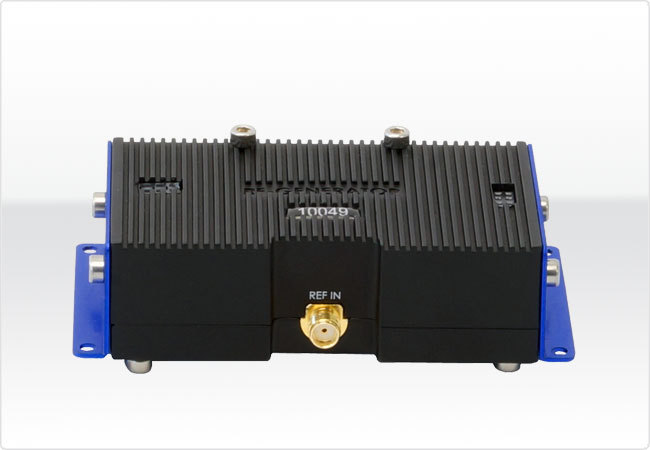

  • Can be connected to external reference clock for even higher accuracy (female SMA-connector)
  • Onboard CPU and memory for intelligent self-running profiles
  • Stand alone operation (no PC or USB connection required)
  • Battery operation up to 4h
  • USB connector for realtime PC control or for storing programs
  • Incl. 12V power supply for continuous operation
  • Can be operated from 12V Car and Truck power system
  • Very small form factor, 81x49x24mm only
  • Very lightweight, only 150gr incl. battery

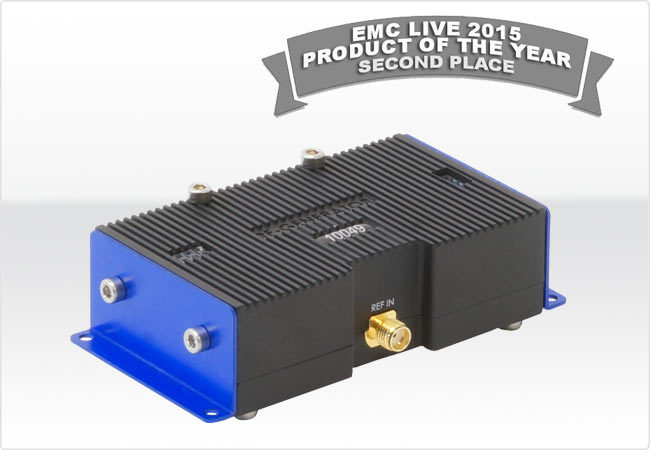

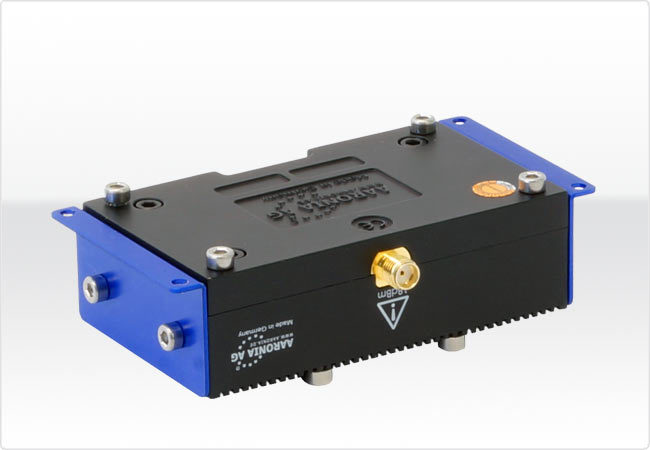

RF Signal Generator BPSG4 OEM





The new signal generator series BPSG from Aaronia offer an unprecedented mix of performance, design and functions, especially in its price category.



Due to the OEM housing the BPSG4 OEM is perfect for installation in existing systems. The provided screw holes make installation here immensely.



The BPSG4 OEM offers to adjust the frequency (between 35MHz to 4,4GHz) and power level (-48dBm to +17dBm, 0,5dB steps) freely.



Highlights



World smallest battery powered and intelligent stand alone RF generator up to 4,4GHz



Generator can be programmed with simple or very complex batch programs which start automatically after every power on (e.g. generate a fixed frequency and level OR start a specific sweep etc. )



Can be used as mini RF frequency and power level calibrator



 Stable frequency generation, thanks to the internal TCXO timebase



Extremely compact and lightweight (150g)



Incl. PC control software



Accesorii standard

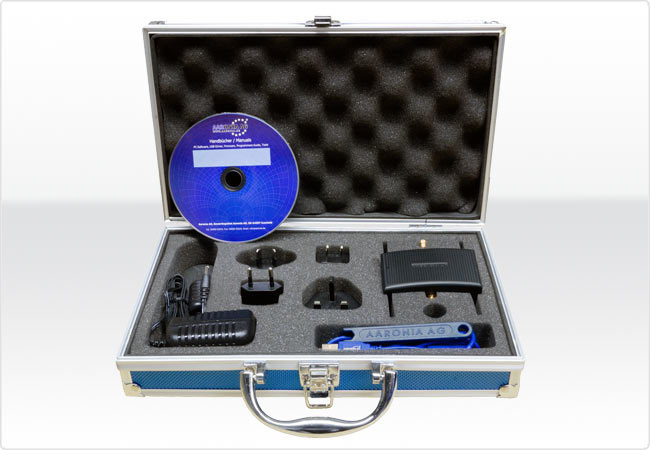

  • BPSG4 OEM Signal Generator with integrated battery
  • transport case
  • International Charger/Power Supply
  • SMA Tool
  • USB-Cable
  • Control Software
