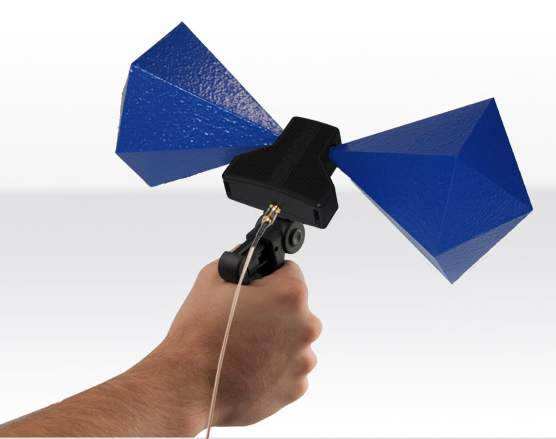

Antena activa biconica radiala izotropa banda larga 50MHz..700MHz Aaronia BicoLOG 5070X

Cod: Aaronia BicoLOG 5070X



Brosura produs PDF, 0.53 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: Biconical (radial isotropic)
  • Frequency range: 50MHz to 700MHz
  • Max. Output power: 100mW AM
  • Nominal impedance: 50 Ohm
  • Gain: 11dBi to 41dBi
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Calibration points: 70 (5MHz and 10MHz-steps)
  • Dimensions (L/W/D): 350x160x140mm
  • Weight: 500gr
  • Warranty: 10 years



Highlights:

  • Excellent cost effective choice for low frequency measurements down to 50MHz
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact design
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (50MHz - 700MHz):

  • Radio & TV
  • Tetra/BOS
  • ISM434
  • etc.


Accesorii standard

  • BicoLOG 5070 X radial isotropic biconical antenna with preamlifier
  • Typical calibration data with 70 calibration points (5MHz and 10MHz steps!) on CD
  • transport case
  • SMA tool
