AARONIA BicoLOG XL Antena biconica Ultra EMC 20MHz..1GHz

Cod: AARONIA BicoLOG XL Ultra EMC






Descriere

Technical data

  • Compatible with any Spectrum Analyzer brand
  • Design: Biconical (radial isotropic)
  • Frequency range: 20MHz to 1GHz
  • Max. out power: 30W
  • Nominal impedance: 50 Ohm
  • Gain: -26dBi to 1dBi
  • Antenna factor: See data sheet graph
  • RF connection: N socket
  • Dimensions (L/W/D):
    990x380x380mm
  • Weight: 3950gr
  • Warranty: 10 years



Highlights:

  • Excellent gain performance for EMC measurements down to 20MHz
  • Typical standard calibration data (on CD)
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact design
  • Can be used in the lab and for open-field application

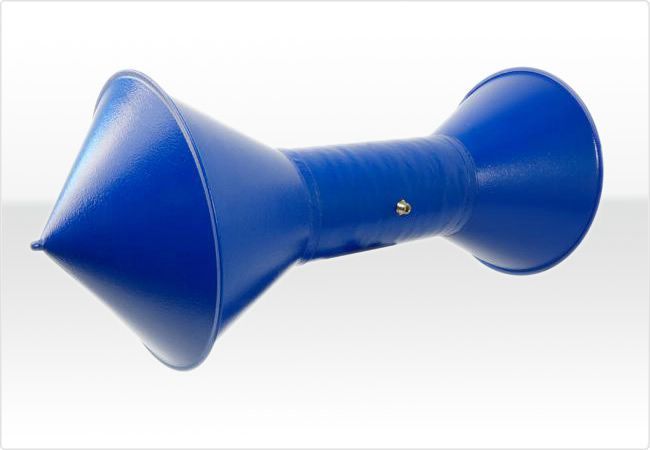

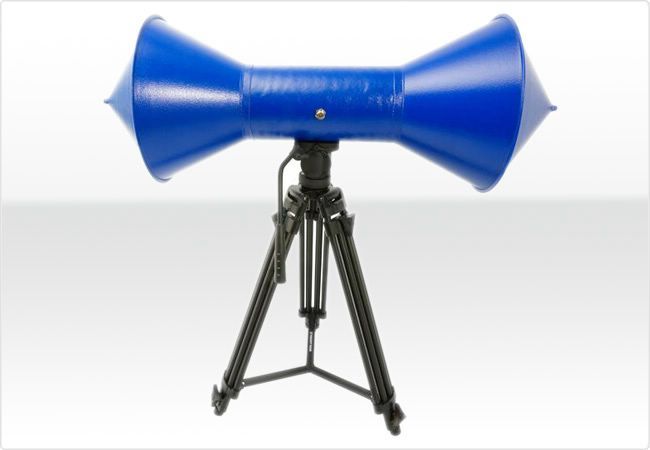

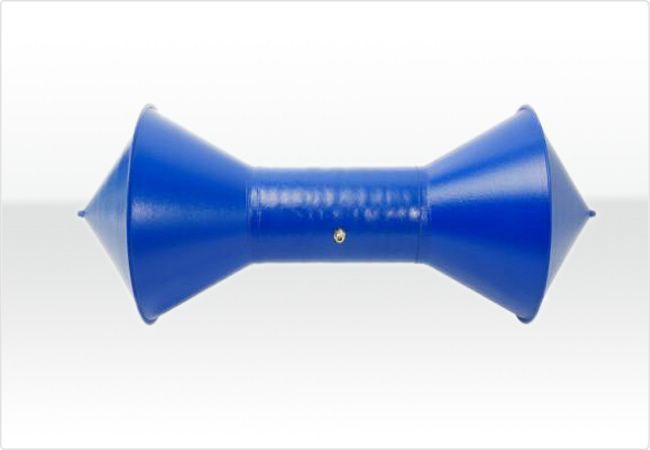

BicoLOG XL



EMC Antenna BicoLOG XL with much higher gain especially in the low frequency range and N-connector. Meets even the most restrictive EMC standards like EN55011, EN55022 etc..



Every BicoLOG EMC Test-Antenna goes through rigorous testing in our laboratories before dispatch and is equipped with a high quality rubber paint which offers protection against mechanical damage and environmental influence, a top-quality integrated tripod connection and a SMA connector.



Made in Germany:

All Aaronia pre compliance antennas are developed, individually produced and calibrated in Germany at the Aaronia factory. This guarantees highest standard so that Aaronia can offer every customer a full 10 years warranty for all EMC antennas.



Exhaustive Calibration data:

All Aaronia EMC Stand Antennas include a complete high resolution (10MHz or even 5MHz steps!) calibration data set with an unmatched number of calibration points (on CD). This offers the ability to make a very accurate EMC measurement with any Spectrum Analyzer.



Optional Accessories:

Each BicoLOG EMC Antenna can be equipped with many accessories. More details can be found at above section "Accessories".





Examples for possible analysis and measurements within frequency range (20MHz - 1GHz):

  • Pre-Compliance-Test even for very low signals
  • Radio & TV
  • Tetra/BOS
  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • etc.


Accesorii standard


Included in delivery

  • EMC Antenna BicoLOG XL
  • Typical calibration data on CD
