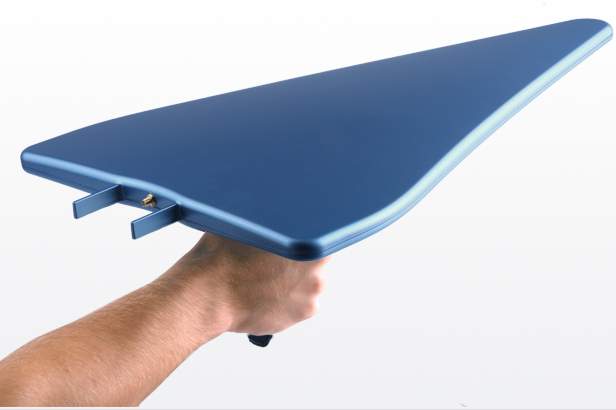

Antena yagi de masura banda larga directiva 400MHz..4GHz Aaronia HyperLOG 4040

Cod: Aaronia HyperLOG 4040



Brosura produs PDF, 0.5 Mb

Descriere

  • Compatible with any Spectrum Analyzer brand
  • Design: Directional Log Periodic
  • Frequency range: 400MHz to 4GHz
  • Max. input power: 100W AM (400MHz)
  • Nominal impedance: 50 Ohm
  • VSWR: <1:2 (typ.)
  • Gain: 4dBi (typ.)
  • Antenna factor: See data sheet graph
  • RF connection: SMA (f) or N (see optional adapter)
  • Tripod connection: 1/4"
  • Calibration points: 361 (10MHz-steps)
  • Dimensions (L/W/D): (590x360x30) mm
  • Weight: 1200gr
  • Warranty: 10 years



Highlights:

  • Includes exhaustive calibration data (on CD)
  • Special designed radome for perfect antenna protection
  • Gold coating for stable performance
  • Wide bandwidth
  • Coverage of various mobile radio frequency ranges
  • Suitable for field-strength and EMC measurements due to high precision
  • Compact and sturdy design
  • Can be used in the lab and for open-field application





Examples for possible analysis and measurements within frequency range (400MHz - 4GHz):

  • ISM434
  • LTE800
  • ISM868
  • GSM900
  • GSM1800
  • GSM1900
  • DECT
  • UMTS
  • WLAN
  • Microwave
  • Bluetooth
  • WiFi
  • LTE2.6
  • WiMAX
  • etc.


Accesorii standard

  • Log Periodic Antenna HyperLOG 4040
  • Typical calibration data with 361 calibration points (10MHz steps!) on CD
  • Large aluminum carrying case with foam protection
  • Pistol grip with mini tripod function
  • Aaronia SMA tool set with over-torque protection
