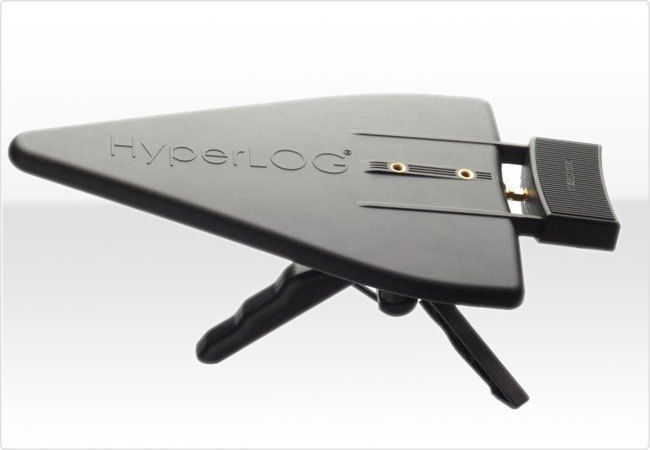

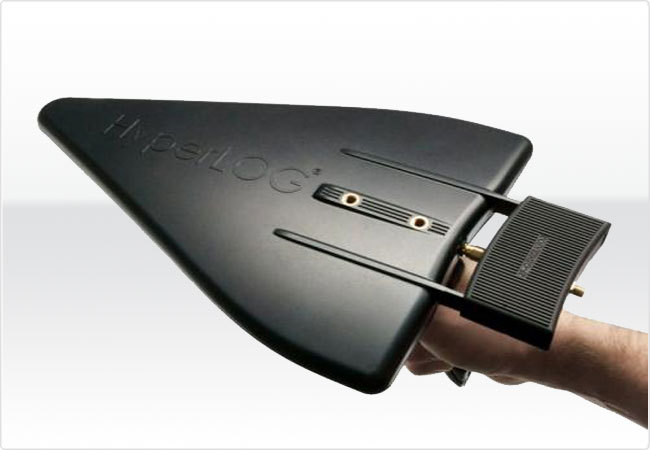

AARONIA DFG7040 Generator de camp radio RF directional 700MHz..4.4GHz

Cod: AARONIA DFG7040





Descriere

  • Frequency range: 700 MHz to 4,4 GHz
  • Up to 3V/m output power (1m distance)
  • Perfect for RF immunity measurements
  • Perfect for RF attenuation measurements
  • Highest power level: +17dBm
  • Smallest power level: -48dBm
  • Up to 65dB dynamic range
  • Frequency accuracy: 150Hz (<1GHz), 600Hz (<4GHz)
  • Modulations: AM, FM, PM
  • Onboard TCXO for very high frequency accuracy
  • Can be connected to external reference clock for even higher accuracy (female SMA-connector)
  • Onboard CPU and memory for intelligent self-running profiles
  • Stand alone operation (no PC or USB connection required)
  • Battery operation up to 4h
  • USB connector for realtime PC control or for storing programs
  • Incl. 12V power supply for continuous operation
  • Can be operated from 12V Car and Truck power system
  • Dimensions: 340 x 200 x 25mm
  • Small Weight, 400grams incl. battery



Application examples

  • Perfect for RF immunity measurements
  • Perfect for RF attenuation tests in combination with SPECTRAN Spectrum Analyzer





Directional Field Generator DFG7040



Portable RF field strength generator DFG7040 with excellent directivity and high output power

The perfect test stations or test transmitter for EMC measurements or the assessment of screening effects (eg shielded rooms or Screen chambers).



Function

The portable, battery-operated field strength generator can be used with simple or complex batch programs that start automatically after power (eg CW signal, sweep, pulse, frequency hopping, etc.). Also, the level can be varied; programmable. A direct control (eg at the laboratory bench) is possible via USB. An appropriate, easy to use software for Mac, Linux and Windows, is included.





Accesorii standard

  • DFG 7040 Field Generator with integrated battery
  • transport case
  • pistol grip
  • International Charger/Power Supply
  • SMA Tool
  • USB-Cable
  • Control Software
