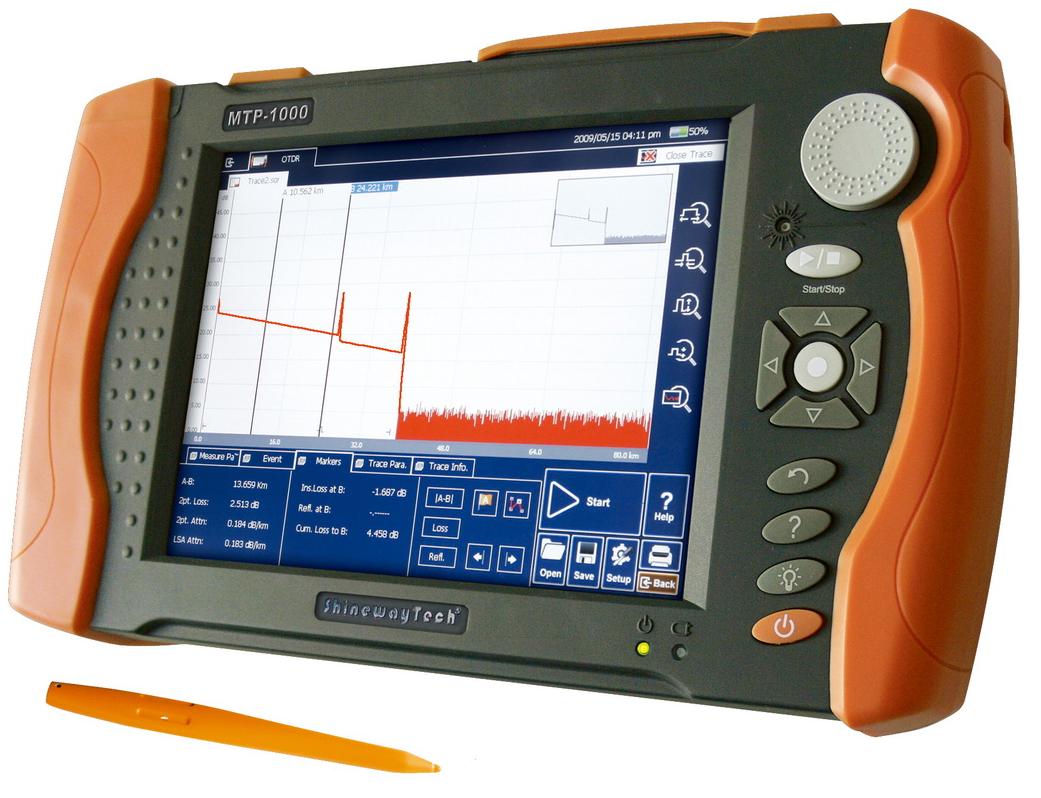

OTDR Platform for Optical Fiber Networks Metro, Access & FTTx Shineway MTP-1000

Code: Shineway MTP-1000




Datasheet PDF, 0.25 Mb


Description

  • up to 3 functional modules, which is specially designed for FTTx/PON applications and can meet all test
  • Flexible wavelength configurations to meet different requirements
  • FTTX in-service testing

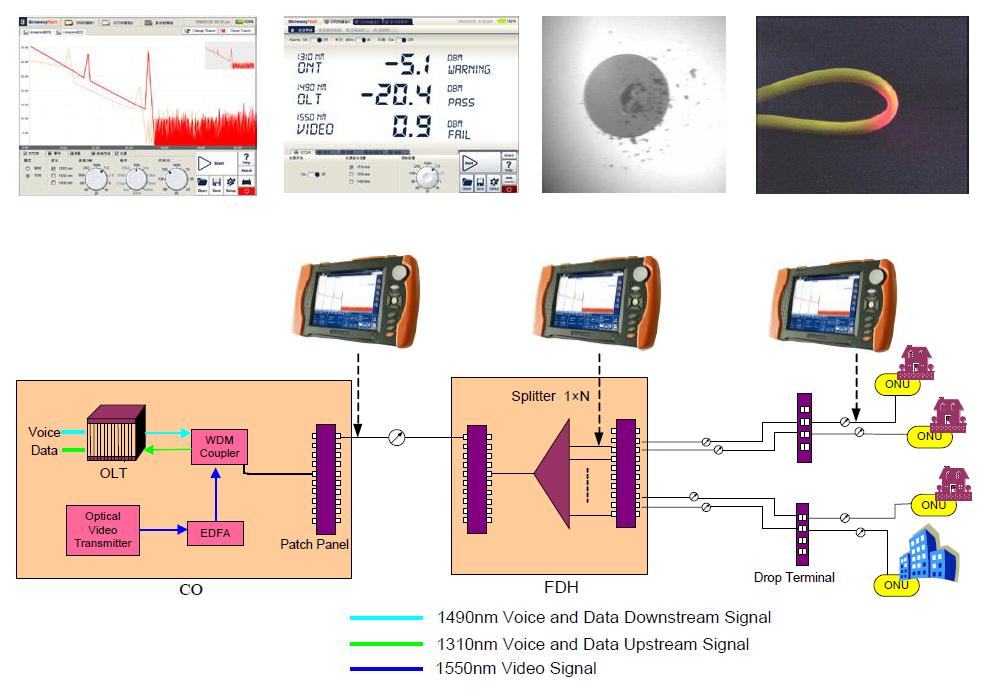

  • PON OTDR identifies splitter and fiber-end
  • Pass-through PON Power Meter simultaneously measures Triple-play PON signals(1310/1490/1550nm)
  • Visible Fault Locator fast locates defective connectors, faults in macrobends, patch cords and patch cord panels
  • Remote control via PC
  • Optical Connector Inspector checks connector and fiber termination for polish quality and cleanliness
  • Lightweight
  • 8.4 inch touch screen
  • Excellent Man-Machine interface for easy operation
  • Damp-dust-shock proof
  • Knob and touchpen combination: Fast and easy handling
  • Optimized power management: 7 hours continuous operation
  • Fast power up with Windows CE


Recommended options

OTDR Module
Wavelength (±20nm)
Dynamic Range (dB)
MOT200-20VD
1310/1550
45/43
MOT200-30VC
1310/1490/1550
38/37/37
MOT200-31VC
1310/1550/1625
38/37/37
MOT200-32VC
1310/1383/1550
38/37/37
MOT200-40VC
850/1300/1310/1550
18/22/38/37
MOT200-41VC
1310/1490/1550/1625
38/37/37/37



MPN200 General Loss Tester Module:

PON Power Meter, Stabilized Laser Source, Optical Power Meter



MCI100 Optical Connector Inspector Module



More products SHINEWAY

INTELLIGENT OPTICAL FIBER LOSS TESTER WITH INTEGRATED POWER METER AND LASER SOURCE SHINEWAY OTL-50

• FTTx/PON applicable
• Optical power monitoring
• Bidirectional loss test on single fiber
• ORL test
• Pass/Fail assessment
• Storage of 1000 test records
• Data transfer to PC via USB
• USB power charging



OPTICAL FIBER FAULT LOCATOR SHINEWAY OFL-100

• Lightweight, portable
• High precise measurement, large memory capacity (200 test curves)
• RS-232/USB data upload port
• PC software for measurement data analyzing and reporting
• Display measurement by graphics curves
• NiMH rechargeable battery support 10 hours continuous operations



OPTICAL FIBER CONNECTOR INSPECTOR SHINEWAY OCI-20A

• Eye-safe video viewing
• Inspect male and female connectors
• Various tips available
• Single-handed operation, quick focus
• Slim to access hard-to-reach connectors



OPTICAL FIBER LOSS TESTER WITH INTEGRATED POWER METER AND LASER SOURCE SHINEWAY OTL-20/ OTM-20

• Support quick test, intelligentized operation
• Graphic interface, large easy to read LCD display
• Measurement units in dB, dBm and W (or mW)
• Large memory capacity (4000 measurements)
• Interchangeable fiber-optic adapters (FC, SC, ST, P/N, E 2000)
• RS-232 data upload port



OPTICAL FIBER FUSION SPLICER SHINEWAY OFS-80

• 5.7" Turn-over LCD screen for clear display Both X and Y axis display
• Fiber core can be display clearly
• Inner light to set fiber in dark environment Auto check fiber end-face
• Auto calculate splicing loss
• 9 seconds splice time and selectable heating mode
• 3 hours fast recharge
• 60 preset/user-definable splicing programs



SHINEWAY OFI-50A CABLE IDENTIFIER

• Easy to use, reliable
• Fast identification of deep buried, overhead and pipe fiber cable
• Built-in intelligent mode, knock in the measured cable screen showed positive and negative Pyramid strength; output the notification sound



SHINEWAY OLT-55 INTELLIGENT OPTICAL LOSS TESTER

• Optical power monitoring (Auto power trace)
• Bidirectional loss test on single fiber
• ORL test
• Pass/Fail assessment



SHINEWAY OPM-15/25 OPTICAL POWER METER

• Interchangeable connectors: FC/SC/ST
• Dual-way power supply: 9V alkaline battery/AC adapter (optional)
• Pocketsize, lightweight and damp-dust-shock proof
• Power saving: Auto-off setting



OPTICAL FIBER INSTALLATION, SERVICE, MAINTENANCE TOOL KITS SHINEWAY FTTX TESTPRO

• FTTx TestPro TK-FTP-102 Installation Stage-Enhanced Tool Kit
• FTTx TestPro TK-FTP-202 Service Activation Stage-Enhanced Tool Kit
• FTTx TestPro TK-FTP-302 Maintenance Stage-Enhanced Tool Kit



OPTICAL CHANNEL CHECKER CWDM SHINEWAY OCC-50

• Clear TFT LCD display (320*240)
• 8-channel measurement (1471-1611 nm)
• Result display in histogram and list
• Data Transfer to PC via USB
• 10 hours continuous operation
