RF Digital Power/Watt Meter Shineway DPM-50

Code: Shineway DPM-50




Datasheet PDF, 0.38 Mb


Description

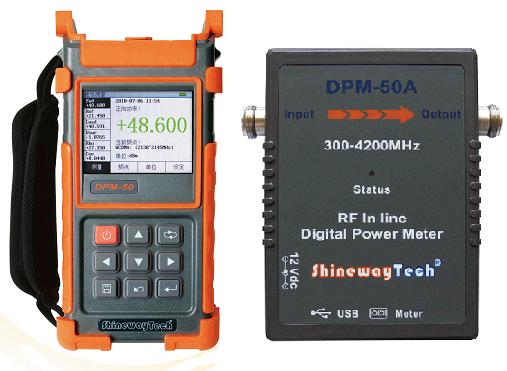

DPM-50-M(Digital Power Meter Monitor)

DPM-50A(Digital Power Meter Sensor 300..4200 MHz, 100mW..200W, >30dB)

DPM-50B(Digital Power Meter Sensor 700..3600 MHz, 20mW..200W, >40dB)
  • Measures 2G/3G wireless network, including
  • GSM900/1800, CDMA800/1900, TD-SCDMA, WCDMA, CDMA2000, WLAN 2.4G & WiMAX or user-defined band

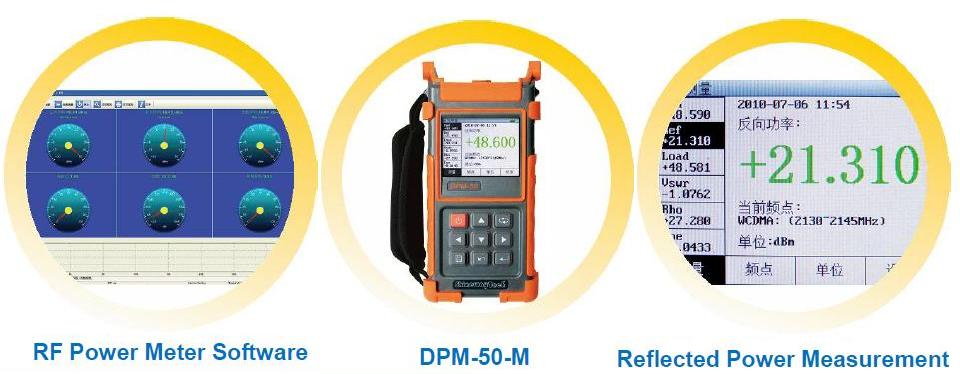

  • High-accuracy forward/reflected power, VSWR, Return Loss & load power measurement
  • Monitor function & test data saving
  • PC monitoring software and main frame for resultdisplay
  • Standard N(F) connector supports various transmission cable & antenna
  • USB & DB9 interface
  • Reverse connection protection



  • Handheld & portable
  • DPM backlight display
  • USB for real-time monitoring & data transfer
  • 320×240 TFT Color LCD
  • Straightforward test result display
  • CE, FCC certificates


Standard accessories

  • DPM sensor
  • USB cable
  • Software CD
  • Soft carry bag
  • Warranty card
  • CE certificate
  • Certificate of calibration
  • User manual
