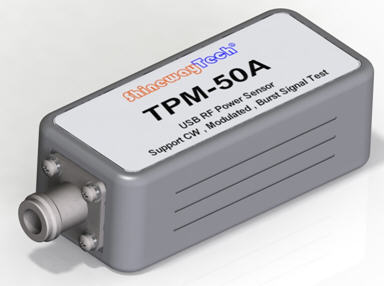

ShinewayTech^@ TPM-50A Terminal Power meter can test (1) Average power range: -40 dBm~+20 dBm;(3) Modulation bandwidth: 5MHz;(3) Continuous signal and burst signal test. Highly accurate power measurement CW and digital modulated signal (For example: GSM/EDGE, CDMA/EV-DO, WCDMA/HSDPA, WiMAX, and TD-SCDMA). It is very important to test that if the transmitter is at a specified level or not. For example, the tester needs to test the output power of base station. Because the lower output power produces the larger coverage area to cause call interruption.

Features:

Measures 2G/3G /4G/ WiMAX wireless network, including GSM900/1800, CDMA800/1900, TD-SCDMA, WCDMA, CDMA2000, WLAN 2.4G & WiMAX or user-defined band
High-accuracy forward power, VSWR, Return Loss & load power measurement
Peak power and Peak/Average Ratio measurement
Burst power measurement
CW power measurement
Monitor function & test data saving
PC monitoring software and handheld monitor for result display
Standard N(Female) connector supports various transmission cable & antenna
USB interface
