Seba digiPHONE+ ESG NT Pinpointing acoustic pinpointing set for steath fault location in underground cables

Code: Seba-KMT digiPHONE+ NT-Set ESG-NT




Datasheet PDF, 0.57 Mb


Description

The allround pinpointing receiver - for easy, fast, and reliable fault location



digiPHONE+ NT Set

With new developments in cable fault location and pinpointing, SebaKMT is continuously striving to offer customers time-saving and cost-effective solutions.

To meet the requirements, SebaKMT combined the two systems digiPHONE+ and ESG NT in one device:

the digiPHONE+ NT Set

The acousto-magnetic cable fault pinpointing and step voltage pinpointing of cable sheath faults can thus be done easily, quickly, and reliably.

The operating mode switches automatically, by identifying the selected sensor.

Benefits:

  • Perfect acoustic quality and noise immunity
  • Automatic filtration of interfering signals
  • Automatic zero calibration, no adjustments necessary
  • History mode





  • Acoustic and step voltage fault location in one device
  • BNR technology for perfect acoustic quality and noise immunity
  • Automatic filtration of interfering signals
  • Automatic setting of all parameters, no adjustments necessary



2 in 1 - Two pinpointing procedures in one device

With new developments in cable fault location and

pinpointing, SebaKMT is continuously striving to offer

customers time-saving and cost-effective solutions.

To meet the requirements, SebaKMT combined two

systems in one device: the digiPHONE+ NT Set.

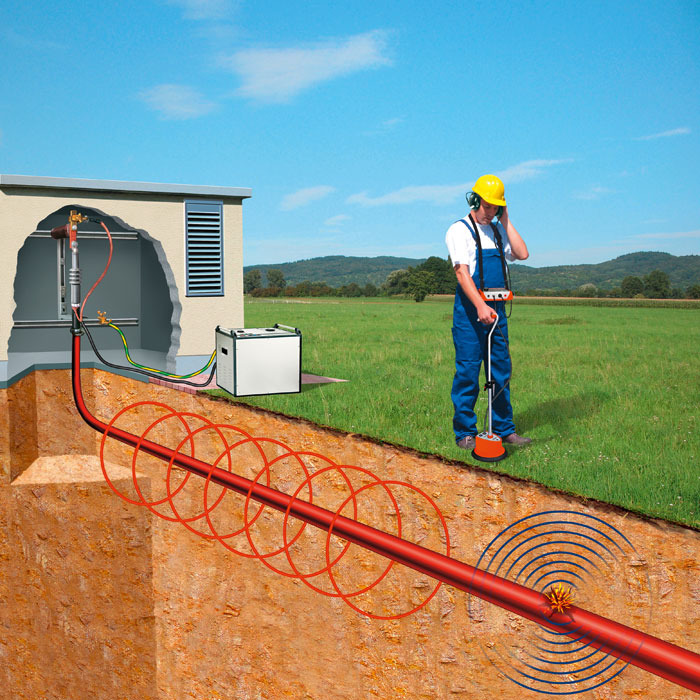

The acousto-magnetic cable fault pinpointing and

step voltage pinpointing of cable sheath faults can

thus be done easily, quickly, and reliably.

The operating mode switches automatically, by

identifying the selected sensor.



All special features at a glance

digiPHONE+

»» Automatic adjustment of values

»» BNR - Background Noise Reduction

»» APM - Auto Proximity Mute when approaching

the handle. (acoustic impact protection)

»» 84 dB(A) limiter (according to noise and

vibration protection laws, e.g. „OSHA")

»» Distance measurement in milliseconds

or meter/feet

»» Easy tracing with left-right indicator

»» „Compass" for fault direction indication

»» High ground stability of the sensor up to 45°



ESG NT

»» Automatic suppression of external potentials

»» Automatic adaptation to the voltage level

»» Automatic detection of the pulse rate

»» Automatic zero adjustment

»» Very high measuring sensitivity in the µV range

»» Very easy operation

»» Cable mounting at the dividable insulated

earth rod



Standard accessories

Scope of delivery

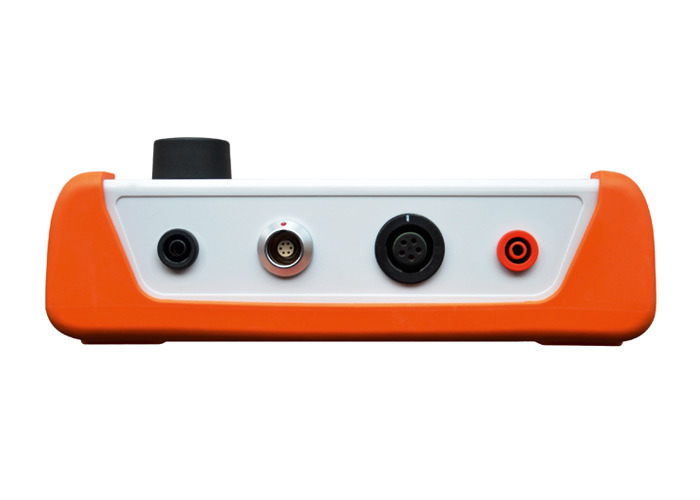

»» Receiver digiPHONE+ NT

»» Set of batteries

»» 2 earth rods

»» Test leads

»» Manual

»» Sensor unit

»» Telescopic handle

»» Tip 18 mm

»» Tip 75 mm

»» Tripod

»» Sensor lead

»» Headset



Recommended options

Options

»» Tip 300 mm

»» Tip 130 mm

»» Ground plate

»» Carrying bag

»» Vehicle installation kit
