SEBAKMT HL7000 Electroacoustic water leak detection

Code: SEBAKMT HL7000 HL-7000 PRO 1011016 HL7000Light HL7000PRO HYDROLUX



Datasheet PDF, 0.29 Mb
Datasheet PDF, 6.85 Mb


Description

HL 7000 Electroacoustic leak detection

The HL7000 ground microphone system from SebaKMT is the top choice for accurately and reliably detecting leaks in a variety of materials. Thanks to its flexible design and automatic 360° sensor detection, the HL7000 offers you various options for quickly and effectively identifying leaks.

Special features
  • Completely wireless thanks to Bluetooth®

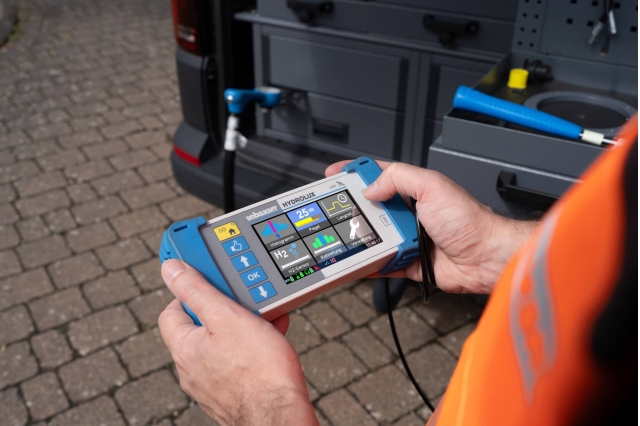

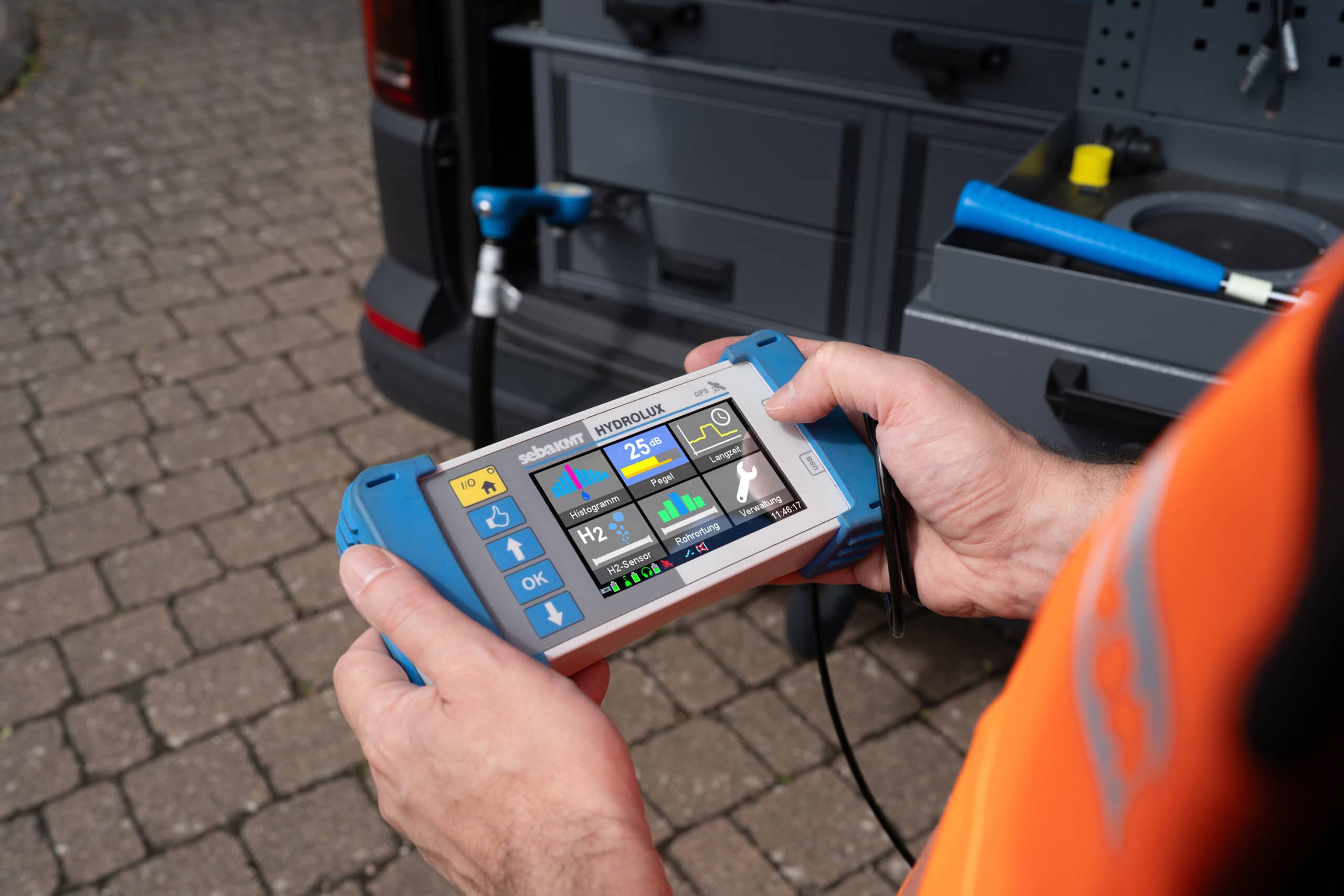

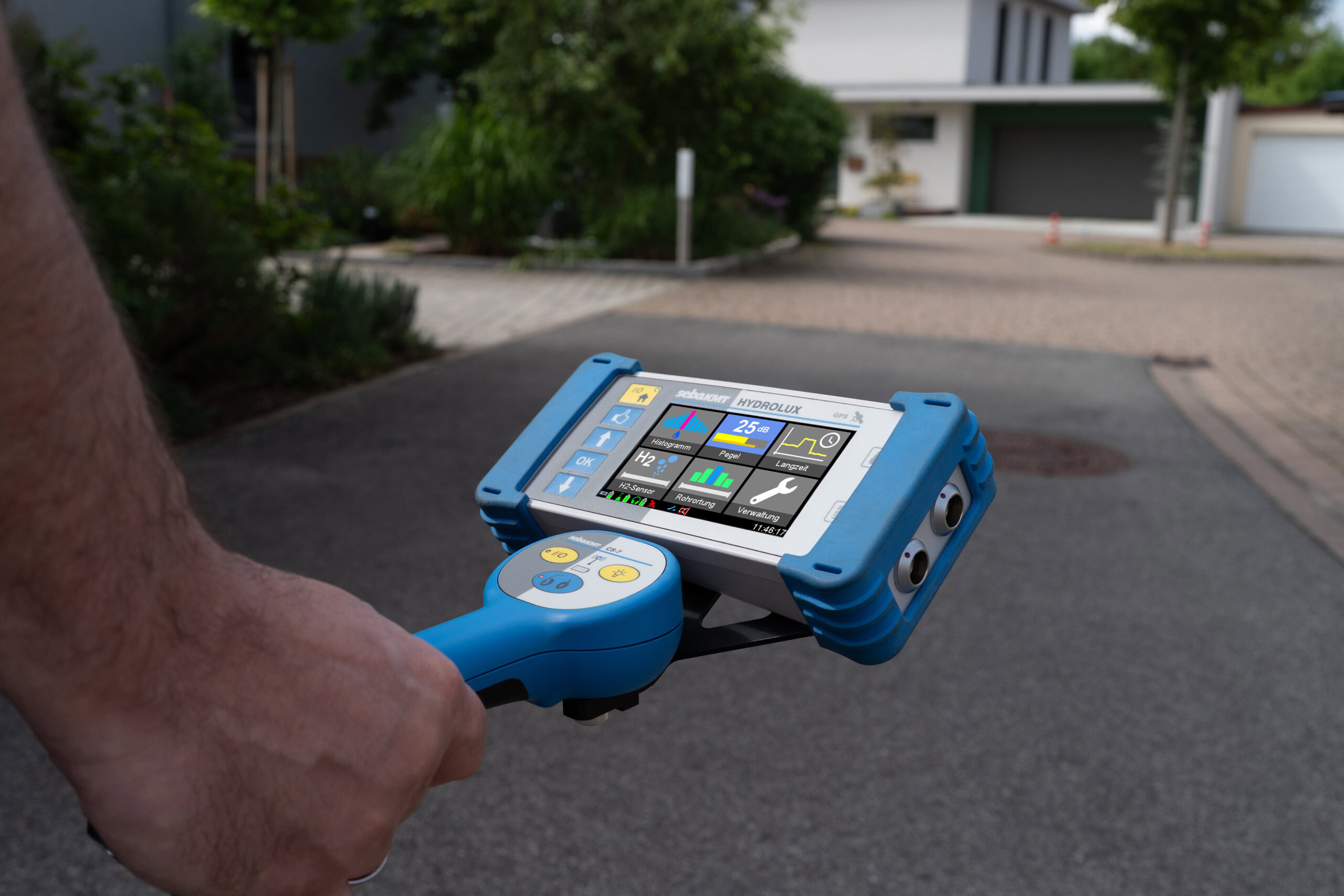

  • Intuitive operation via touch color display
  • Powerful lithium-ion batteries
  • Integrated GPS receiver
  • Ambient/noise cancellation
  • Frequency analysis

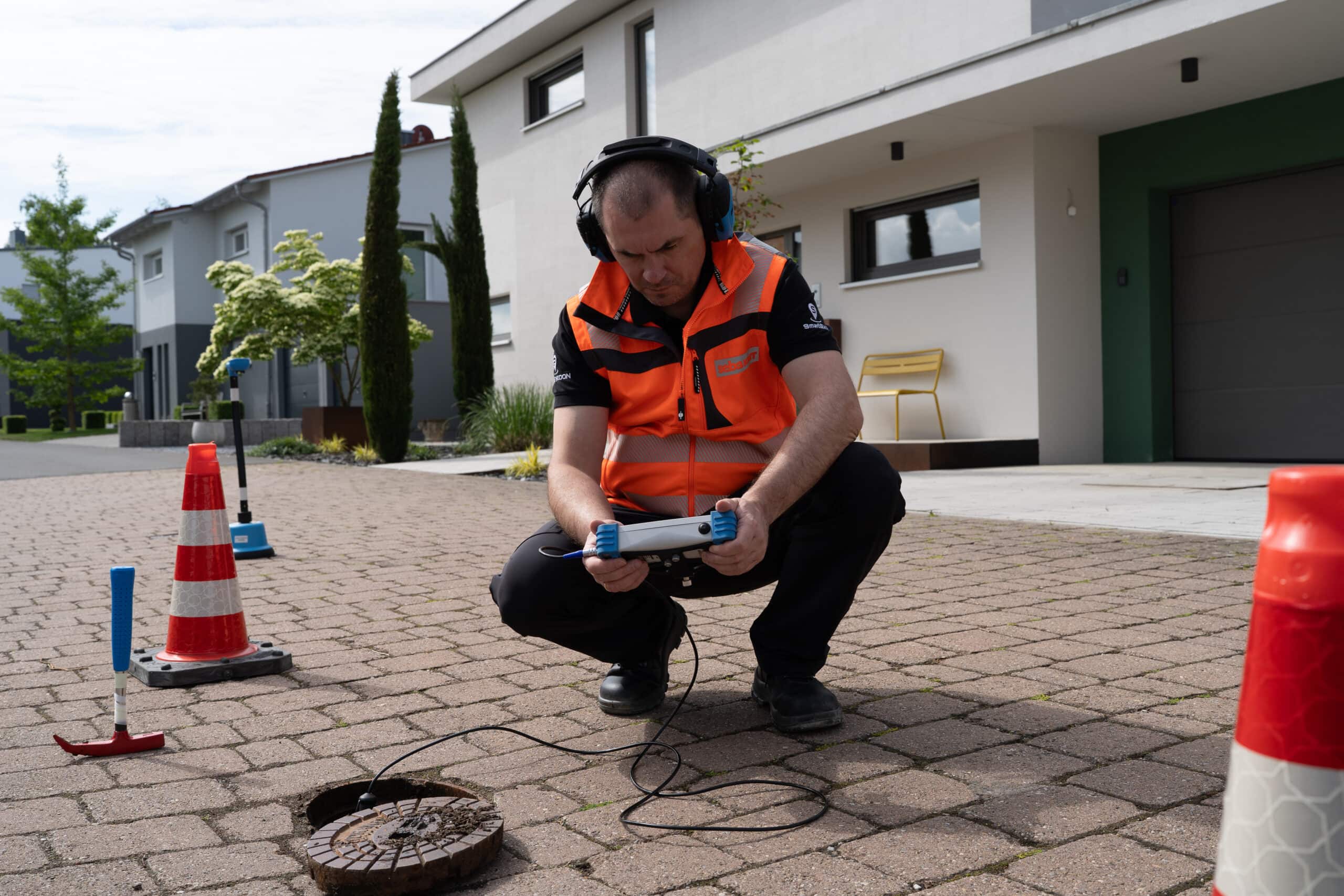

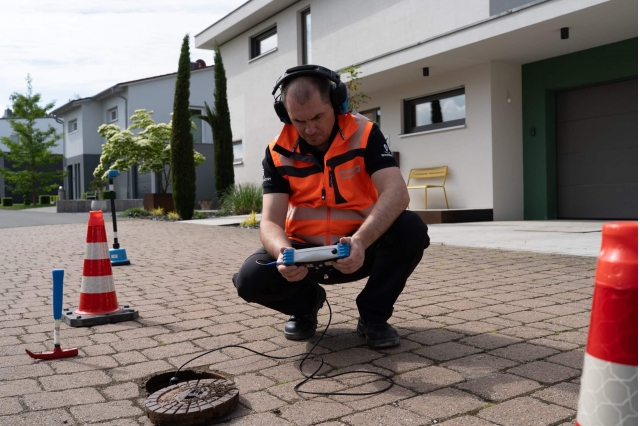

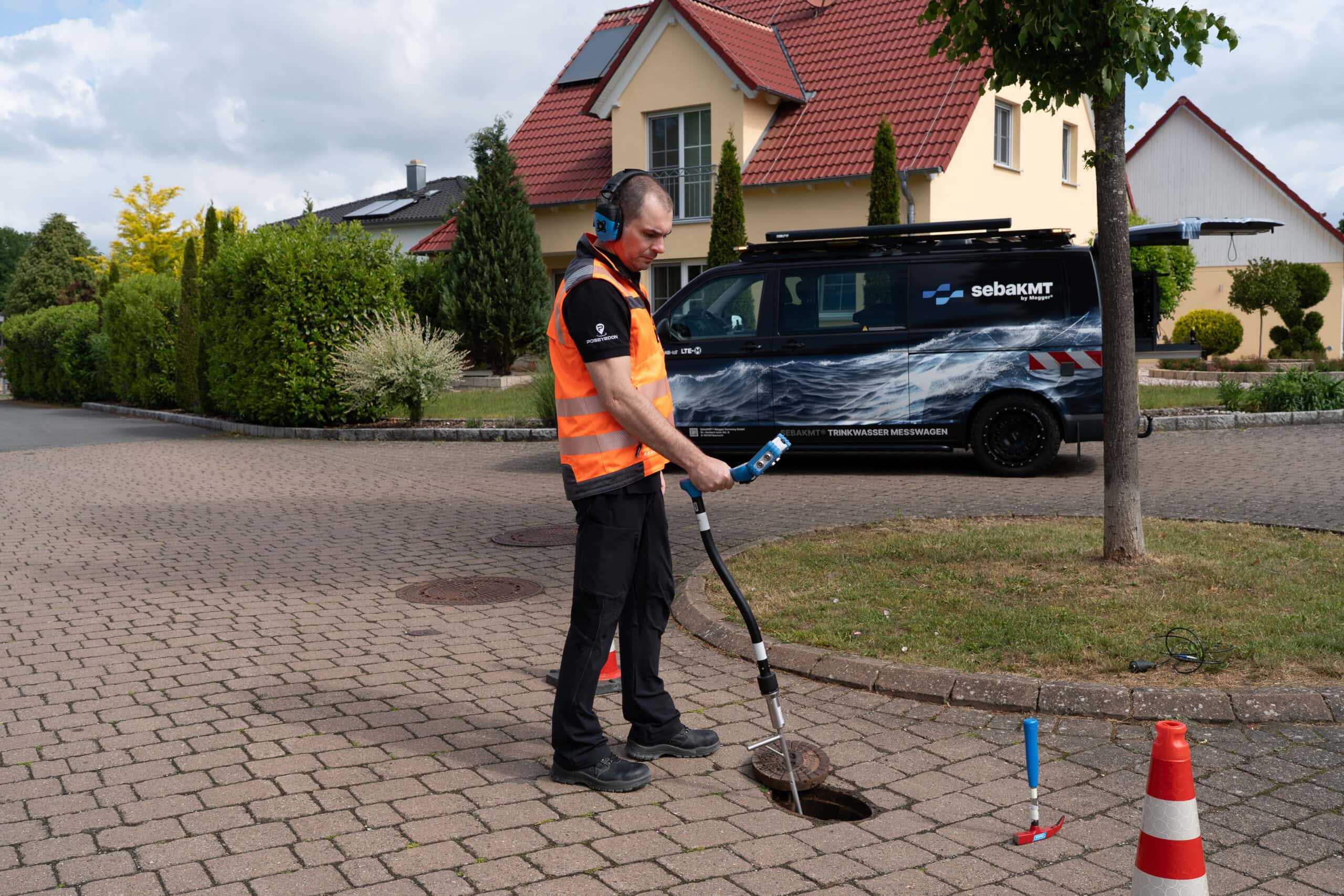

Electroacoustic leak detection using ground microphone, search rod and tracer gas

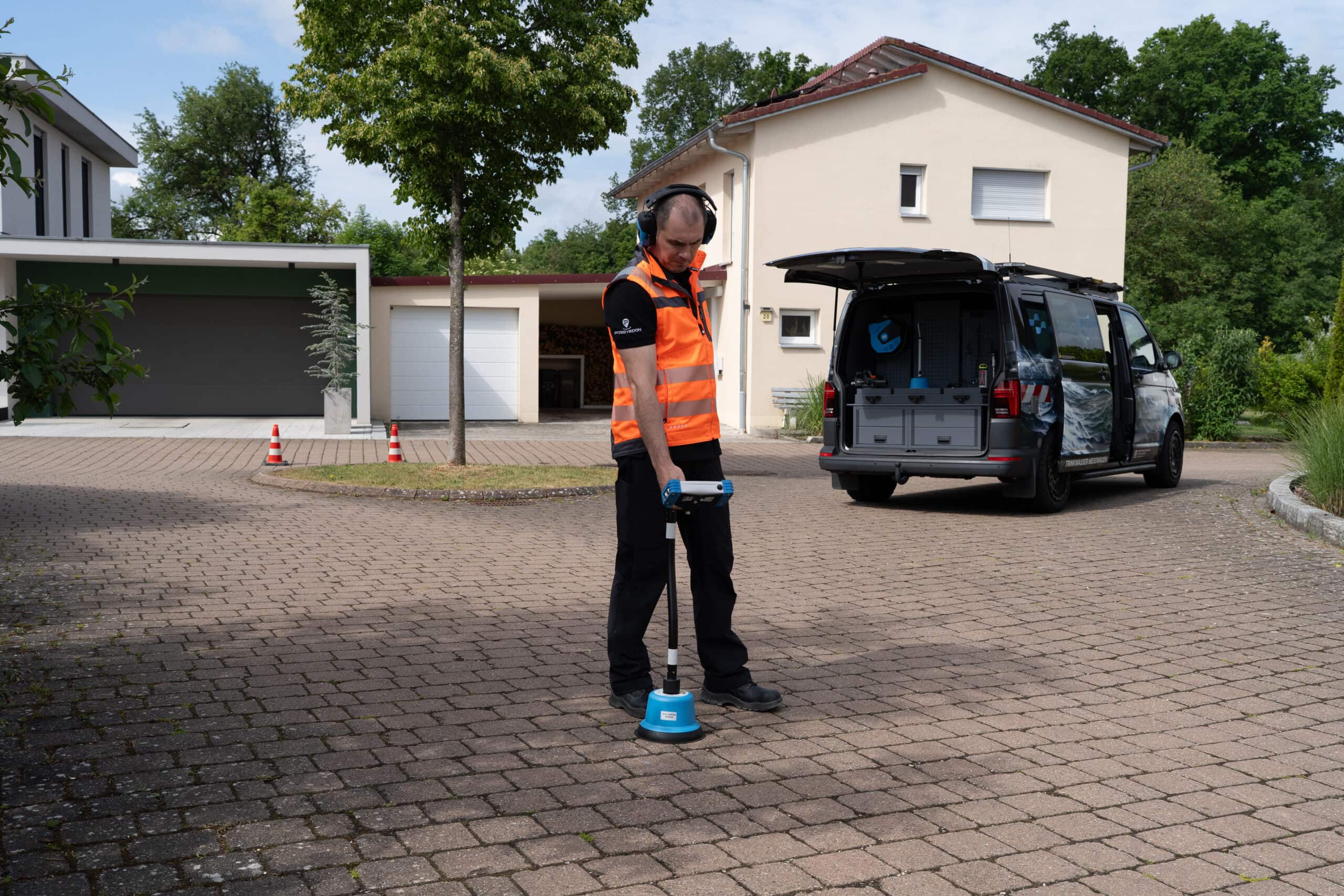

The HL 7000 ground microphone system for electroacoustic leak detection is a modern device for locating leaks in drinking water networks (with a search rod and tracer gas). Its flexible design and automatic 360° sensor detection offer a wide range of applications. This adaptability allows leaks to be located precisely and efficiently in a wide variety of situations. Thanks to its powerful lithium-ion batteries, the system can be used continuously for over 10 hours, making it ideal for extended deployments.
Information about the HL 7000

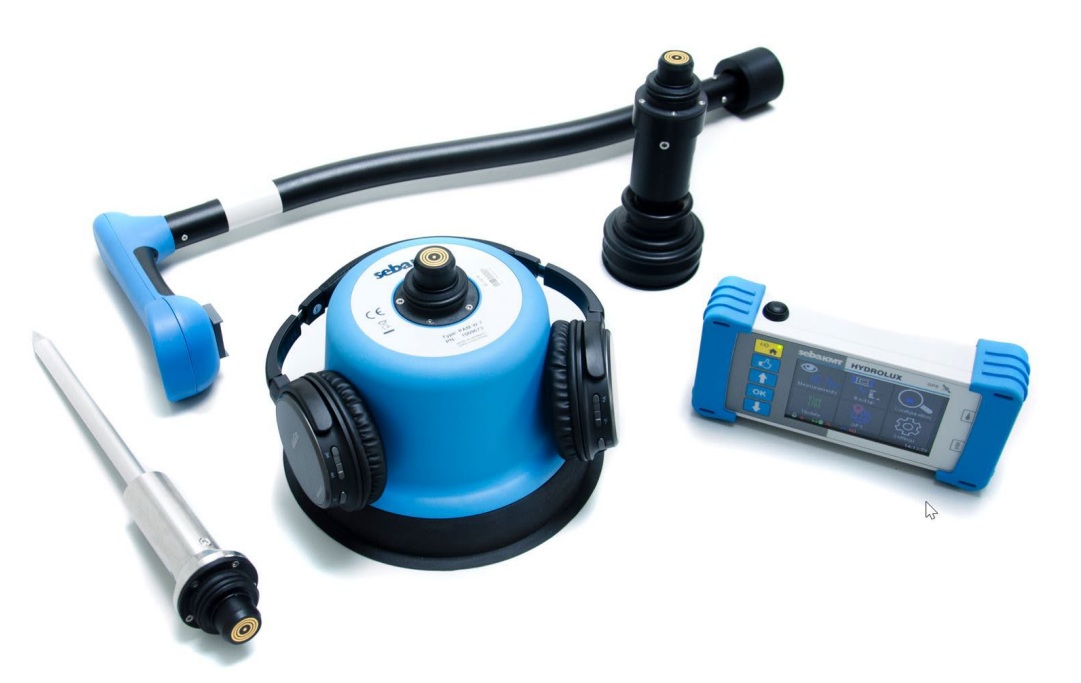

A key feature of the HL 7000 is the Bluetooth®-enabled, wind-protected piezo ground microphone with built-in preamplification. This microphone is specifically designed to capture very low leak frequencies on soft materials like PVC or PE just as clearly as high frequencies on hard materials like steel or cast iron pipes. This versatility and the ability to accurately detect diverse frequency ranges ensure reliable leak detection under a wide range of conditions.

With the HL 7000 ground microphone system, you get a powerful and robust tool that, thanks to its advanced technology and sophisticated design, greatly increases the efficiency and accuracy of your leak detection.

Optionally with tracer gas sensor
Sometimes acoustic means aren't enough for pinpoint leak detection. The HL 7000 offers a flexible solution by allowing the attachment of a tracer gas sensor. Thanks to its 360° sensor coverage, automatic sensor recognition, and Bluetooth® connectivity, this is quick and easy. Simply attach the tracer gas sensor to the sensor rod and detect the hydrogen-nitrogen mixture on the surface.
  • Central data management
  • Proactive problem solving
  • Automated alerting
  • Adaptability and versatility

Latest technology
Thanks to built-in Bluetooth® technology, there are no more annoying cables between the control unit, the headphones, and the individual sensors. Noise from wind and cable contact are a thing of the past. This allows you to concentrate fully on the leak in the drinking water system.
Hear and see leaks: Histogram measurement
Simultaneous display of the current and minimum values
Ambient/noise cancellation
Long-term audio recording
Frequency analysis of the recorded sounds
Versatile filter settings with nine freely adjustable filter curves
Noise logger function: continuous measurement of 3, 15, 30 minutes

Special features of the HL 7000
The HL 7000 from Megger is a state-of-the-art system for pinpointing leaks in underground pipelines. Thanks to its sophisticated technology and straightforward operation, the HL 7000 sets new standards in leak detection.

The highlights of the HL 7000:

Precise leak detection: Thanks to its innovative sensor technology, the HL 7000 enables precise detection of leaks, even in complicated pipe networks and under difficult conditions.
Easy to use: The self-explanatory operating concept with the easy-to-read color display and clear menus simplifies handling and ensures a short training period.
Robust construction: The HL 7000 is designed for use in harsh conditions. Its robust housing protects the sensitive electronics from environmental influences and guarantees a long service life.
Wide range of applications: Whether in the city, in industrial plants or in the countryside "" the HL 7000 can be used flexibly and is suitable for various leak detection tasks.
Data recording and analysis: Thanks to the built-in storage function, measurement data can be recorded and subsequently used for in-depth analysis. This supports the documentation and tracking of leaks over longer periods.
The HL 7000 provides leak detection professionals with a reliable tool that impresses with its precision, ease of use, and robustness. Rely on Megger's quality and expertise to locate and repair leaks quickly and effectively.

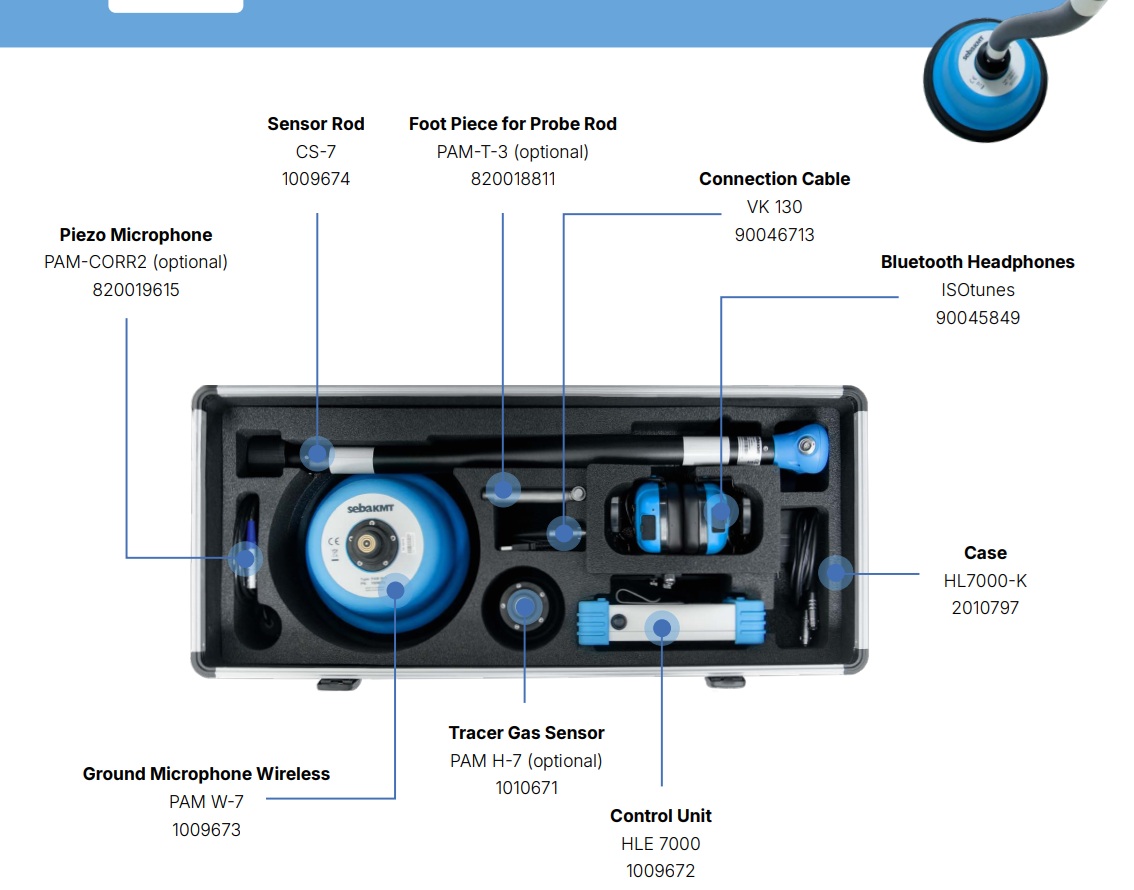

Standard accessories


Scope of delivery
Product Description Order number
HL 7000 set includes 1011016
HLE-7000 Hydrolux receiver 1009672
BT-H Bluetooth® Headphone ISOtunes (IPX4) 90039163
CS-7 Carrying handle 1009674
PAM W-7 Wind protected ground microphon 1009673
Bracket Bracket 90025467
Bracket Moun. Mounting set bracket 2011128
Clip Moun. Mounting set belt clip 2011129
Charger Mains supply, 5V/2,2A 90025102
VK 130 Connection cable 90022223
TP W-7 Tripod adapter 2010837
HL-7000-K Case 2010797
HydroluxView USB Stick w. PC-Software HydroluxView 1011008
Car Charger USB car charger 2.4A 90028407
Multitool Multitool PIVOT w. Logo 90028216




Recommended options


Optional accessories HL 7000
PAM T-7 Feeler rod microphone 1010396
TS Foot traverse 820018811
PAM H-7 Tracer Gas Sensor 1010671
PAM CORR-2 Active universal piezomicrophone 2,5m 820019615
PAM CORR-2-1,5 Active universal piezomicrophone 1,5m 1012410
VST T-7 Extension Rod for PAM T-7 90029964
