Seba KMT Easyloc Cam Location system for location and depth measurement of Sewer TV Cameras

Code: Seba-KMT Easyloc-Cam




Datasheet PDF, 0.29 Mb


Description

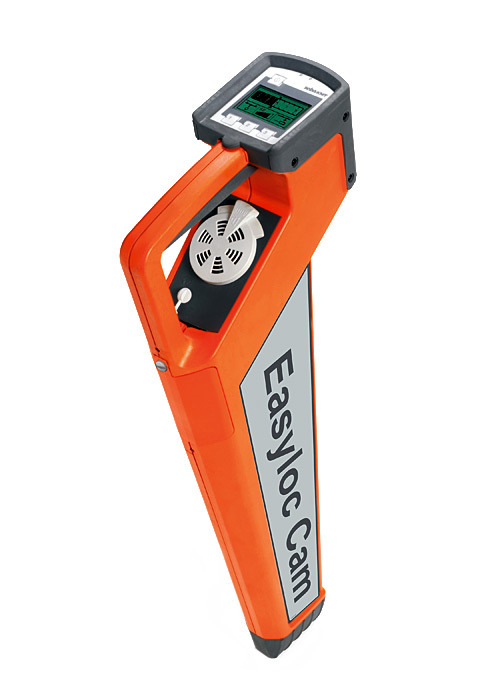

Easyloc Cam

The Easyloc Cam is specially designed for the location of Sewer TV Cameras. The 3 frequencies (512 Hz, 640 Hz and 33 kHz) are the most common and are all supported by the Easyloc Cam.
The large display, the automatic sensivity control and depth measurement makes your daily location work faster and easier.

The Easyloc location system is quick and easy to use. To make best use of all options, we offer seminars both in our training centre and on location.

Key benefits:

  • 3 active frequencies (512 Hz, 640 Hz und 33 kHz)
  • depth measurement at the push of a button
  • Maximum marker to mark the strongest signal
  • optional: Carry Bag - for easy and safe transport of Easyloc Cam
  • optional: Pipeline sonde - for location non-metallic pipes





Standard accessories





Recommended options
