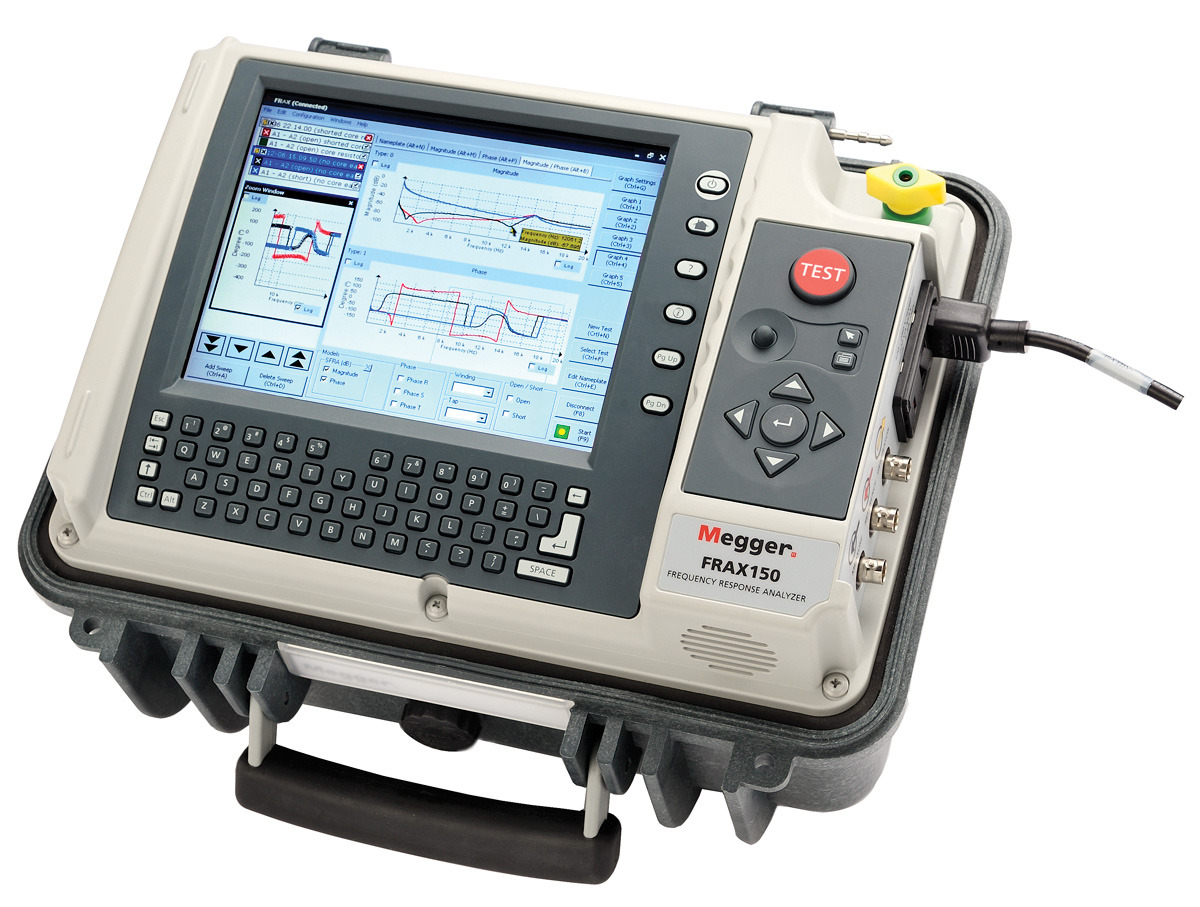

Megger FRAX FRAX-99 FRAX-101 FRAX-150 Frequency Response Analyzer

Code: Megger Megger FRAX FRAX-99 FRAX-101 FRAX-150



Datasheet PDF, 1.04 Mb


Description

• Frequency range 0.1 Hz - 25 MHz, user selectable

• Highest dynamic range and accuracy in the industry
• Smallest and most rugged FRA?instrument in the industry
• Fulfills all international standards for SFRA measurements

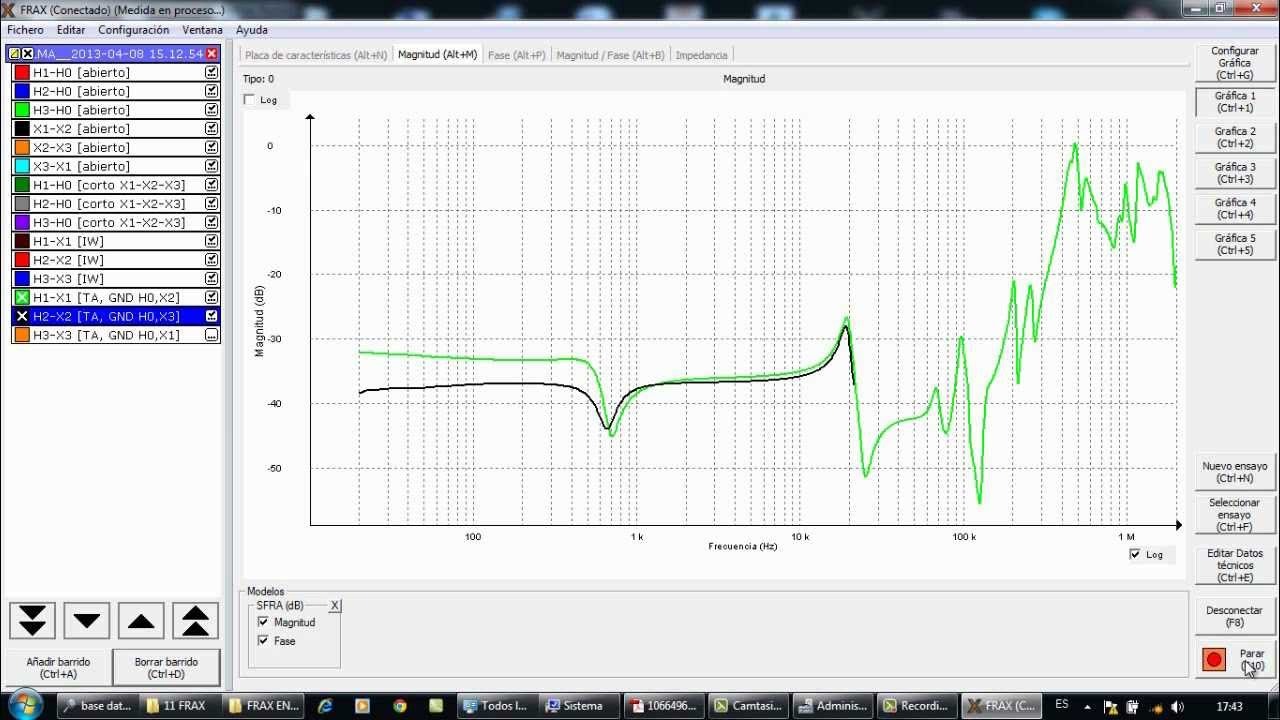

• Advanced analysis and decision support built into the software
• Imports data from other FRA test sets



The FRAX series of sweep frequency response analyzers (SFRA) detects potential mechanical and electrical problems that other methods are unable to detect. Major utilities and service companies have used the FRA method for more than a decade. The measurement is easy to perform and will capture a unique fingerprint of the transformer. The measurement is compared to a reference fingerprint and gives a direct answer if the mechanical parts of the transformer are unchanged or not. Deviations indicate geometrical and/or electrical changes within the transformer.



Standard accessories

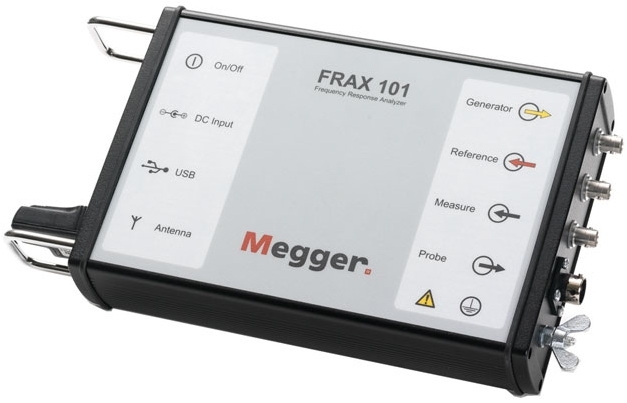

FRAX-101

With accessories, 18 m (60 ft) cable set AC-19090

With accessories incl. battery, 18 m cable set AC-19091

With accessories, 9 m (30 ft) cable set AC-19092

With accessories incl. battery, 9 m cable set AC-19093



FRAX-99

With accessories, 9 m cable set AC-29090

With accessories, 18 m cable set AC-29092

With accessories, incl. battery, 9 m cable set AC-29095

With accessories, incl. battery, 18 m cable set AC-29096



FRAX-150

With accessories, 18 m cable set AC-39090

With accessories, 9 m cable set AC-39092



Included accessories for all models

Generator cable

Measure cable

4 x 3 m (10 ft) ground braid set

2 x 0.3 m (1 ft) braid with clamp

2 x C-clamp (bushing connector clamp)

2 x G-clamp (ground clamp)

Field Test Box FTB101

Ground cable 5 m (15 ft)

Mains cable

FRAX software for Windows

User manual



Additional included accessories for FRAX 99

AC/DC adapter

Light transport case

Canvas carrying bag (for accessories)

USB cable



Additional included accessories for FRAX 101

AC/DC adapter

Transport case

Bluetooth adapter

USB cable



Additional included accessories for FRAX 150

Canvas carrying bag (for accessories)



Recommended options

Optional Accessories

Calibration set AC-90020

FRAX demo box FDB 101 AC-90050

FRAX generator and ref cable, 9 m (30 ft) GC-30040

FRAX generator and ref cable, 18 m (60 ft) GC-30042

FRAX measure cable, 9 m (30 ft) GC-30050

FRAX measure cable, 18 m (60 ft) GC-30052

C-clamps GC-80010

E-clamp (single hand grip clamp) GC-80030
