The 4200A-CVIV Multi-Switch automatically switches between I-V and C-V measurements without re-cabling or lifting the prober tips. Unlike competing products, the four-channel 4200A-CVIV display provides local visual insight for quick test setup and easy troubleshooting when unexpected results occur.

Highlights

Move C-V measurement to any device terminal without re-cabling

User-configurable for low current capability

Personalize the names of output channels

View real-time test status

Stable Low-Current Measurements for I-V Characterization

With the 4201-SMU and 4211-SMU modules you can achieve stable low current measurements in a high capacitance system. With four models of source measure unit (SMU) to choose from, the 4200A-SCS can be customized to meet all of your I-V measurement needs. By offering field Installable Units and optional preamplifier modules, Keithley makes sure that you can make the most accurate low current measurements with little to no downtime.

Highlights

Add an SMU without sending the instrument back to the factory

Make femptoamp measurements

Up to 9 SMU channels

Optimized for long cables or large chucks

Integrated Solution with Analytical Probers and Cryogenic Controllers

The 4200A-SCS Parameter Analyzer supports many manual and semi-automated wafer probers and cryogenic temperature controllers, including MPI, Cascade MicroTech, Lucas Labs/Signatone, MicroManipulator, Wentworth Laboratories, LakeShore Model 336 cryogenic temperature controller.

Highlights

"Point and click" test sequencing

"Manual" prober mode tests prober functionality

Fake prober mode enables debugging without removing commands

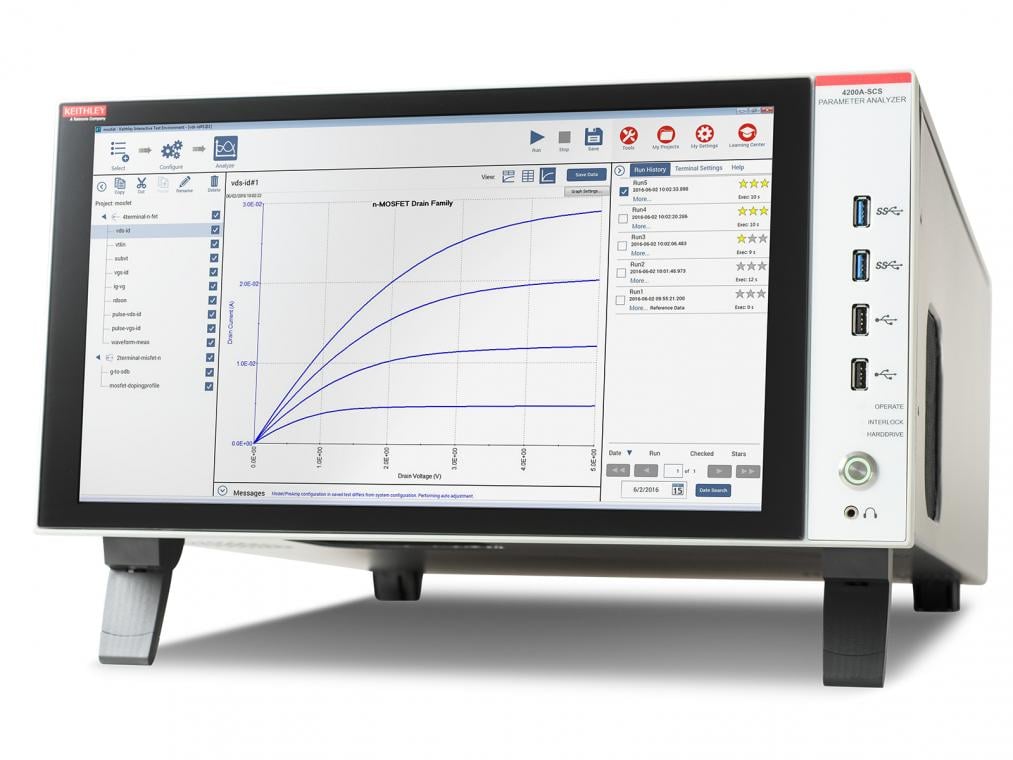

Accelerate research, reliability and failure analysis studies of semiconductor devices, materials and process development with the 4200A-SCS. The highest performance parameter analyzer, it delivers synchronizing current-voltage (I-V), capacitance-voltage (C-V) and ultra-fast pulsed I-V measurements.

Parametric insight, fast and clear.

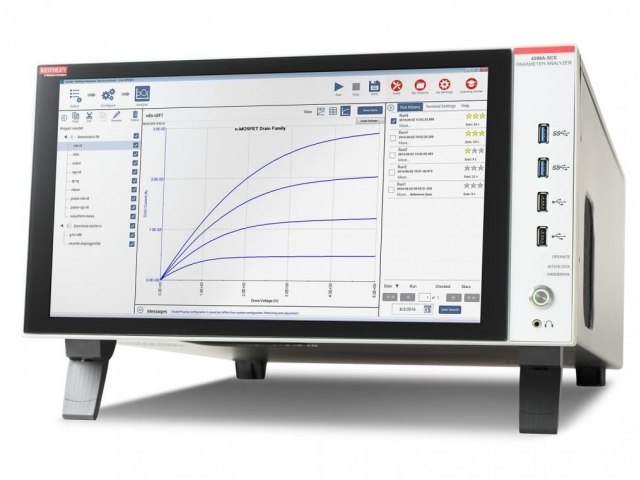

Advancing your bold discoveries has never been easier. The 4200A-SCS Parameter Analyzer reduces the time from setup to running characterization tests by up to 50%, allowing uncompromised measurement and analysis capability. Plus, embedded measurement expertise provides unparalleled test guidance and gives supreme confidence in the resulting measurements.

Highlights

Advanced measurement hardware for DC I-V, C-V, and pulsed I-V measurement types

Begin testing immediately with hundreds of user-modifiable application tests included in the Clarius software

Automated real-time parameter extraction, data graphing, analysis functions

Accurate C-V Characterization

Measure single-digit femtofarads with Keithley's newest capacitance-voltage unit (CVU), the 4215-CVU. By integrating a 1 V AC source into Keithley's industry-leading CVU architecture, the 4215-CVU offers low-noise capacitance measurements at frequencies from 1 kHz to 10 MHz.

Highlights

First C-V meter in its class capable of driving a 1 V AC source voltage

1 kHz frequency resolution from 1 kHz to 10 MHz

Measure capacitance, conductance, and admittance

Measure on up to four channels with the 4200A-CVIV Multiswitch

DatasheetModelDescriptionPricing

View Datasheet4200A-SCS-PKA

High Resolution IV4200A-SCS: Parameter Analyzer mainframe

4201-SMU: Two medium power SMUs for high capacitance setups

4200-PA: One preamplifier

8101-PIV: One test fixture with sample devicesRequest a Quote

View Datasheet4200A-SCS-PKB

High Resolution IV & CV4200A-SCS: Parameter Analyzer mainframe

4201-SMU: Two medium power SMUs for high capacitance setups

4200-PA: One preamplifier

4215-CVU: One high resolution multi-frequency C-V unit

8101-PIV: One test fixture with sample devicesRequest a Quote

View Datasheet4200A-SCS-PKC

High Power IV & CV4200A-SCS: Parameter Analyzer mainframe

4201-SMU: Two medium power SMUs for high capacitance setups

4211-SMU: Two high power SMUs for high capacitance setups

4200-PA: Two preamplifier

4215-CVU: One high resolution multi-frequency C-V unit

8101-PIV: One test fixture with sample devicesRequest a Quote

View Datasheet4200-BTI-A

Ultra-fast NBTI/PBTIFor sophisticated NBTI and PBTI measurements on leading-edge silicon CMOS technology Package 4200-BTI-A includes:

(1) 4225-PMU Ultra-Fast I-V Module

(2) 4225-RPM Remote Preamplifier/Switch Modules

Automated Characterization Suite (ACS) Software

Ultra-Fast BTI Test Project Module

Cabling
