2600B 2601B 2611B 2604B 2614B 2602B 2612B 2634B 2635B 2636B Sursmetru de precizie

Code: 2600B 2601B 2611B 2604B 2614B 2602B 2612B 2634B 2635B 2636B




Datasheet PDF, 2.27 Mb

Description

2600B Series SMU

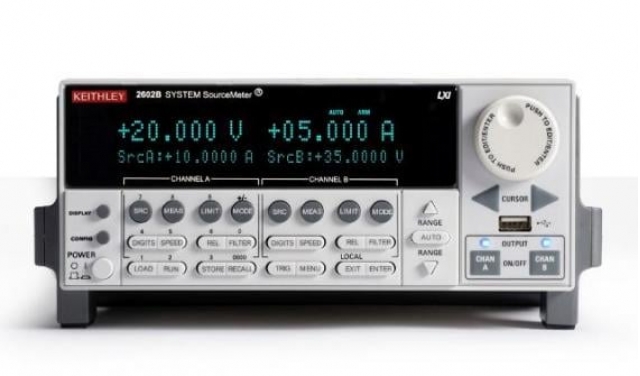

2601B, 2602B, 2604B System Sourcemeter SMU Instruments
The 2601B, 2602B, and 2604B are 40W DC / 200W Pulse SMUs with 10 A pulse, 3A to 100 fA and 40 V to 100 nV DC capabilities. They combine the capabilities of a precision power supply, true current source, 6½-digit DMM, arbitrary waveform generator, pulse generator, and electronic load – all into one tightly integrated instrument. The 2601B is a single model where the 2602B and 2604B are dual channel models.


Keithley’s Series 2600B System SMU instruments are the industry standard current-voltage source and measure solution for highly automated production test applications. Both dual- and single-channel models tightly integrate a precision power supply, true current source, DMM, and electronic load with pulse generating capabilities. Plus, TSP® technology runs complete test programs for automated system applications, and TSP-Link® technology enables daisy-chaining up to 64 channels for high volume parallel test.

Complete production test without sacrificing footprint
Meet all your production test needs with two completely isolated channels of wide dynamic source and measure within the same footprint. Each 40 W channel provides 6½-digit precision resolution source and measure from 10 A pulse to 0.1 fA and 200 V to 100 nV at less than 100 µs pulse width and within 0.1% of settled value.

Highlights

Up to 2 channels in the same footprint
Widest dynamic range of voltage and current
Highly accurate 100 µs pulse expanding DC production test capabilities

ModelChannelsMax Current Source/Measure RangeMax Voltage Source/Measure RangeMeasurement Resolution (Current / Voltage)PowerList Price
2601-
2601B110A40V100fA / 100nV200 W10.700,00 €
2611B110A200V100fA / 100nV200 W10.900,00 €
2604B210A40V100fA / 100nV200 W14.500,00 €
2614B210A200V100fA / 100nV200 W15.800,00 €
2602B210A40V100fA / 100nV200 W16.300,00 €
2612B210A200V100fA / 100nV200 W16.600,00 €
2635B110A200V0.1fA / 100nV200 W18.100,00 €
2634B210A200V1fA / 100nV200 W23.500,00 €
2636B210A200V0.1fA / 100nV200 W26.700,00 €



More products KEITHLEY

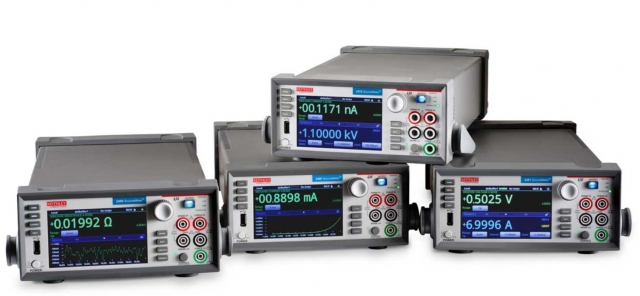

PRECISION SOURCE-METER KEITHLEY 2400

• Five instruments in one (IV Source, IVR Measure)
• Six models: 20 - 100W DC, 1000W pulsed, 1100V to 1uV, 10A to 10pA
• Source and sink (4-quadrant) operation
• 0.012% basic measure accuracy with 5½-digit resolution



USB MODULAR DIGITAL I/O 96-CHANNELS KEITLHEY KUSB-3160

• USB 2.0 and USB 1.1, true plug-and-play compatibility
• Up to 96 digital I/O lines, 64 I/O and 32 input, grouped into 12 8-bit ports



USB MODULAR DATA ACQUISITION UNIT USB 16-CHANNELS 500KSA/S KEITLHEY KUSB-3116

• USB 2.0 and USB 1.1, true plug-and-play compatibility
• 16 SE/ 8 DI analog input channels
• 16-bit resolution
• High and low programmable gains
• Input/output speeds up to 500kS/s
• Up to 33 digital I/O lines



DIGITAL SOURCE METER 6.5 DIGIT AIRBAG TEST SYSTEM KEITHLEY DMM 2000

• 6.5 digit DMM
• Single-instrument solution for continuity and hi-pot type leakage resistance measurements
• Programmable constant V source (50-500V) supports high speed, high resistance measurements
• Programmable constant I source (0-50mA) with dry circuit clamp helps prevent device stress or damage during low resistance measurements



PICOAMMETER AND VOLTAGE SOURCE 5.5 DIGIT KEITHLEY 6487

• 10fA resolution
• 5-1/2 digit resolution
• <200µV burden voltage
• measure currents from 20fA to 20mA
• source voltage from 200µV to 505V



DATA ACQUISITION CARD PCI 32-CHANNELS 250KSA/S KEITLHEY KPCI-3116

• 16-bit resolution
• Input speeds of up to 250kS/s
• Output speeds of up to 200kS/s
• Digital I/O scanning speeds of up to 3MHz
• 32 single-ended or 16 differential analog inputs
• 16 digital I/O lines
• 2 analog outputs, waveform quality, 200kS/s



DATA ACQUISITION CARD PCI 32-CHANNELS 1.25MSA/S KEITLHEY KPCI-3110

• 12-bit resolution
• Maximum sampling rate of 1.25MS/s
• 32 single-ended or 16 differential analog inputs
• 2 analog outputs, waveform quality, up to 500kS/s
• 16 high speed digital I/O lines, up to 3MHz

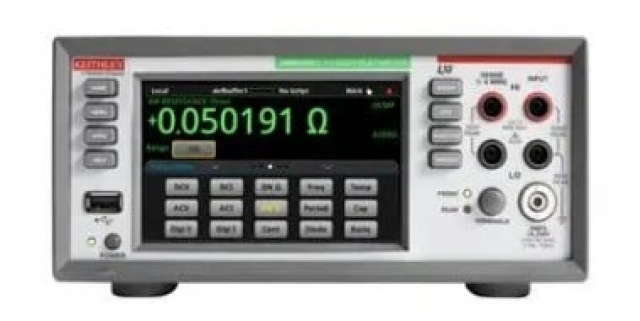

KEITHLEY DMM6500 6.5DIGIT MULTIMETER HIGH PRECISION
