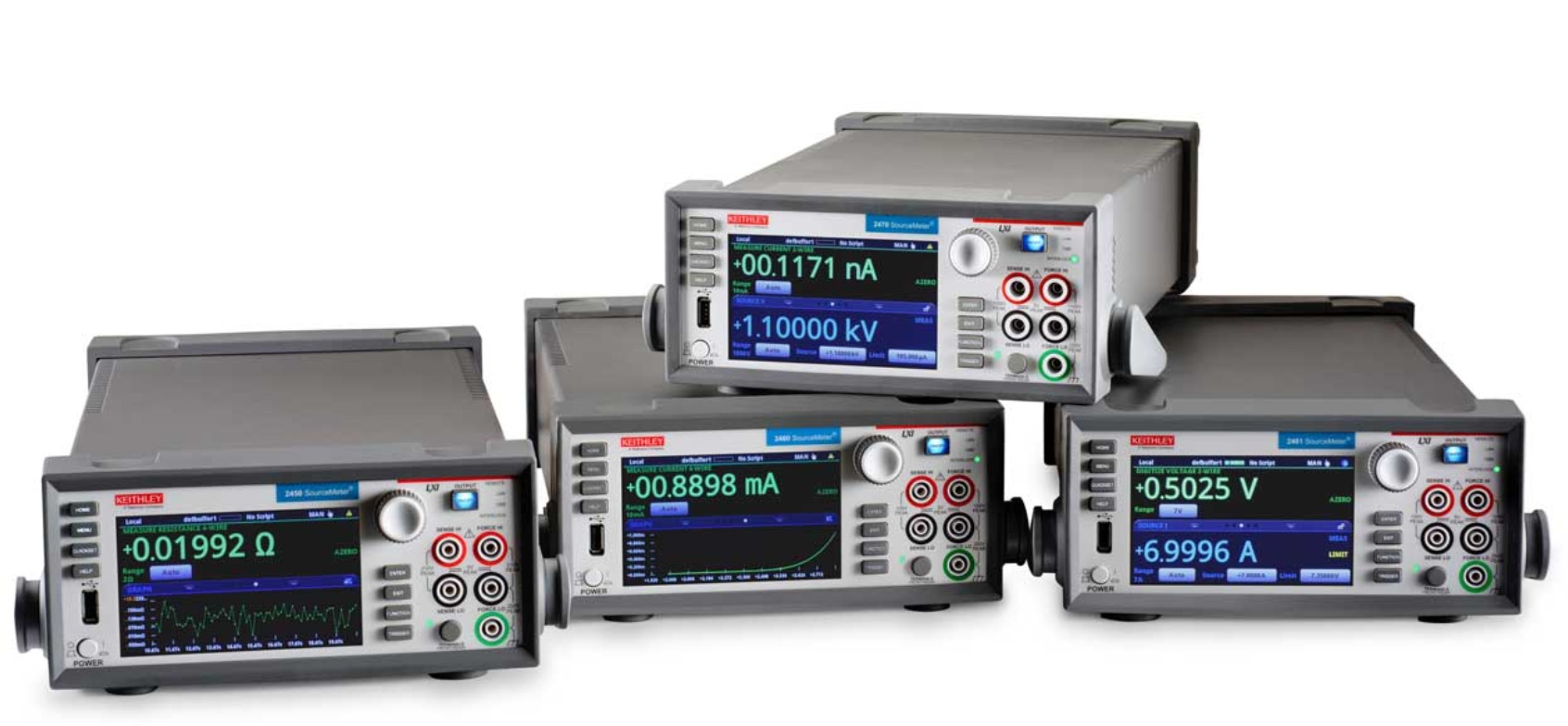

The Source Measure Unit (SMU) is an instrument that can precisely source voltage or current and simultaneously measure voltage and/or current. It combines the useful features of a digital multimeter (DMM), power supply, true current source, electronic load and pulse generator, all into a single, tightly synchronized instrument in a compact form factor. SMUs are considered more useful than the combination of any of the five instruments, due to the measuring instrument’s versatility and high accuracy performance.

More products KEITHLEY

DATA ACQUISITION CARD PCI 32-CHANNELS 1.25MSA/S KEITLHEY KPCI-3110

• 12-bit resolution
• Maximum sampling rate of 1.25MS/s
• 32 single-ended or 16 differential analog inputs
• 2 analog outputs, waveform quality, up to 500kS/s
• 16 high speed digital I/O lines, up to 3MHz

USB MODULAR DATA ACQUISITION UNIT USB 8-CHANNELS 50KSA/S KEITLHEY KUSB-3100

• USB 2.0 and USB 1.1, true plug-and-play compatibility
• 8 SE analog input channels
• 12-bit resolution
• Input/output speeds up to 50kS/s
• High and low programmable gains
• Up to 16 digital I/O lines

PICOAMMETER AND VOLTAGE SOURCE 5.5 DIGIT KEITHLEY 6487

• 10fA resolution
• 5-1/2 digit resolution
• <200µV burden voltage
• measure currents from 20fA to 20mA
• source voltage from 200µV to 505V

PULSED LASER DIODE TEST SYSTEM KEITHLEY 2520

• Simplifies laser diode LIV testing prior to packaging or active temperature control
• Integrated solution for in-process LIV production testing of laser diodes at the chip or bar level
• Sweep can be programmed to stop on optical power limit
• Programmable pulse on time from 500ns to 5ms up to 4% duty cycle
• Pulse capability up to 5A, DC capability up to 1A

DIGITAL MULTIMETER 6.5 DIGIT AND THD AUDIO ANALYZER KEITHLEY 2015

• 6.5 digit DMM
• THD, THD+Noise and SINAD measurements
• 20Hz-20kHz sine wave generator
• 4Vrms single-ended or 8Vrms differential output
• Identifies peak spectral components(2015-P model)

LOW VOLTAGE NANOVOLTMETER KEITHLEY 2182A

• Make low noise measurements at high speeds
• typically just 15 nV p-p noise at 1s response time
• 40..50 nV p-p noise at 60ms

KEITHLEY DMM7510 PRECISION MULTIMETER 7.5-DIGIT LABORATORY BENCH

• 0.0014% DCV accuracy (one year)
• 1,000,000 readings/s digitizer
• Touchscreen display
• DC voltage sensitivity: 10 nV
• Current sensitivity: 1 pA
• Resistance sensitivity: 0.1 µΩ

PCI BOARD DIGITAL I/O 32-CHANNELS OPTICALLY ISOLATED KEITHLEY KPCI-PIO32IOA

• 32 optically isolated solid-state relays and digital inputs
• Direct, non-polarized switching and sensing: DC up to 60VDC, AC up to 30Vrms
• High load current capability up to 350mA

PRECISION AC AND DC CURRENT SOURCE KEITHLEY 6221

• Source and sink (programmable load) 100fA to 100mA
• 10^14 O output impedance ensures stable current sourcing into variable loads
• Source AC currents from 2pA to 100mA for AC characterization of components and materials

KEITHLEY 2650 2651A 2657A HIGH POWER SOURCE-METER

• Highly flexible, four-quadrant voltage and current source/load coupled with precision voltage and current meter
• Offers best-in-class performance with 6½-digit resolution.
