Digital Internal Thread Height Measuring Instrument 2243-35

Code: 2243-35



Datasheet PDF, 0.39 Mb

Description

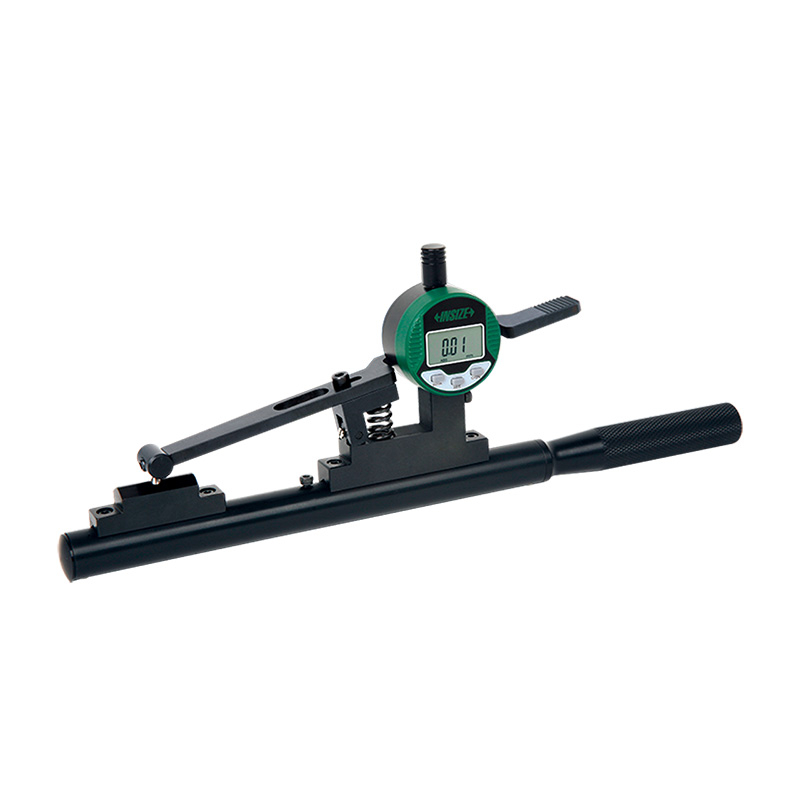

Digital Internal Thread Height Measuring Instrument
Code: 2243-35

  • Measure the height of internal thread with nominal diameter less than 5 1/2" (139.7mm)


Code:  2243-35
Range:  0-0.135"/0-3.5mm
Accuracy:  0.02mm
Resolution:  0.0005"/0.01mm
Inspection Elements:  thread height


Recommended options




More products INSIZE3

BLADE MICROMETER 3232-25A

• Meet DIN863-3
• Measure the groove diameter of shafts and keyways
• Non-rotating spindle

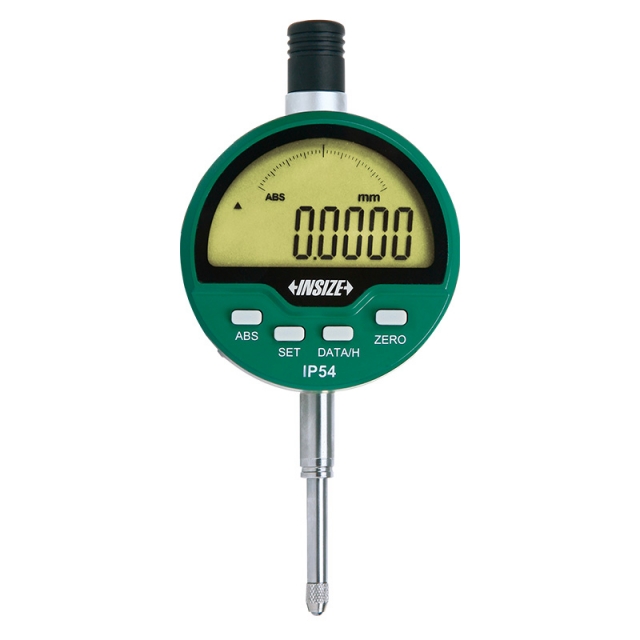

HIGH PRECISION DIGITAL INDICATOR 2136-10
