HT I-V500w Photovoltaic System Analyzer with I-V curve tracer 1500V 15A

Code: I-V500w I-V500 IV500w IV500 HV00500W IV-500w IV-500



Datasheet PDF, 2.03 Mb


Description

I-V Curve Tracer for maintenance and troubleshooting of photovoltaic systems.
Measurement of I-V Curve of one or more modules or of one whole string up to 1500V/10A
Measurement of open-circuit voltage and short-circuit current Voc/Isc
Database of 30.000 selectable photovoltaic modules
I-V500w allows field detection of I-V Curve an of the main characteristic parameters both of a single module and of strings of modules for PV installations up to a maximum of 1500V and 10A or 1000V and 15A. For measuring I-V Curve, I-V500w manages an internal database of the modules, which can be updated at any time by the user and comparison between the measured data with the rated values allows immediately evaluating whether the string or the module fulfills the efficiency parameters declared by the manufacturer. I-V Curve can be measured also by decentralizing measurement of irradiation and temperature by using the optional remote unit SOLAR02, using the radio frequency connection (RF) with the master unit.
Also for I-V500w, the display at the end of the test of I-V Curve is a clear indication about the compliance with the specifications declared by the panel manufacturer.

I-V Curve, Easy, Fast and Lightweight
No backpack or laptop needed, 128 points I-V Curve, 1500V max voltage, 15A* max current, VOC and ISC, AutoStart Test, Internal Module Database, HTANALYSISâ„¢ APP.

I-V CURVE AND MUCH MORE
With your mobile device, HTANALYSISâ„¢ helps you to understand the problems you may have in PV Installations.

CONNECT YOUR SENSORS WITHOUT ANY DISTANCE LIMITS.

You can connect your irradiance sensor and temperature probe directly on your I-V500w, but if you want to remotize the measurement you just need as remote unit the SOLAR-02. Once these two are paired you can walk far even for 1 km. When you come back near the I-V500w the SOLAR-02 will upload the recorded data from the sensors directly to the master unit.

AUTOSTART TEST.

Check String by String without disconnect any cable. Open the fuse box in the combiner box and start measure I-V Curve string by string, each measure (measure + data saving) needs no more then 15 seconds and no more then 1 people. I-V500w starts automatically to measure the I-V Curve when your test leads touches the positive and negative poles. All that you need is KITKELVIN Test Leads accessory.

MODULE DATABASE, FROM THE CLOUD TO YOUR I-V CURVE TRACER.

Connect via WiFi your tablet or smartphone and manage the modules in your I-V Curve tracer. You can add, modify or delete the modules stored in your device. All of those functions are available even on PC software TOPVIEW (included).

HTANALYSISâ„¢, HTCLOUDâ„¢ AND TOPVIEW.

You can have your measures on your PC directly from HTCLOUDâ„¢. All that you need is to take your smatphone or tablet in your hands, open the app HTANALYSISâ„¢ and connect your I-V Curve Tracer via WiFi. In few gestures you can upload the data on HTCLOUDâ„¢ and in REAL TIME you can get the data on your PC with TOPVIEW software (included).

Codmetel: HV00500W
Functions
I-V curve tracing of PV modules and strings1500V/10A - 1000V/15A
Quick IVCK test for measuring Voc and Isc on PV modules and stringsVOC 1500V / ISC 15A
Internal memory249 I-V Curves
Use of remote unit SOLAR-02 with USB RF connectionRF
Custom management of internal PV module database30 internal / 30.000 on software/app
Temperature measurement of cell and environment
Measurement of direct (front side) irradiation with reference cell
Summary table of main electric parameters
Provided PC interface with software for Windows
Integrated WiFi connection and compatibility with HTANALYSIS App
Backlit LCD display
Auto Power OFF
Protection categoryCAT III
Weight in grams (batteries included)1200
Size (LxWxH) (mm)235x165x75


Standard accessories

STANDARD ACCESSORIES
Calibration report
Calibration report
Quick Guide and Downloadable Manual
Quick Guide and Downloadable Manual
HT304K
HT304K

M304
M304
VA500
VA500

KITPVMC4
KITPVMC4

KITGSC4
KITGSC4

C2006 + Downloadable Software
C2006 + Downloadable Software

SP-5100
SP-5100


Recommended options

OPTIONAL ACCESSORIES
SOLAR02
SOLAR02

PT300N
PT300N

KITPVMC3
KITPVMC3

KITPVEXT25M
KITPVEXT25M

KITKELVIN
KITKELVIN


More products HT ITALIA

GSC60 MULTIFUNCTION TESTER FOR ELECTRICAL SAFETY TESTS AND POWER QUALITY ANALYSIS

• LECTRICAL SAFETY TESTING CEI 64-8
• Earth Resistance with voltammetric method with 2 or 3 points in TT, TN and IT systems
• NETWORK AND ENERGY CONSUMPTION ANALYSIS
• Measurement and recording of electrical parameters
• Voltages, Currents, Powers, Energies, cosphi, etc. in Single-phase and Three-phase systems

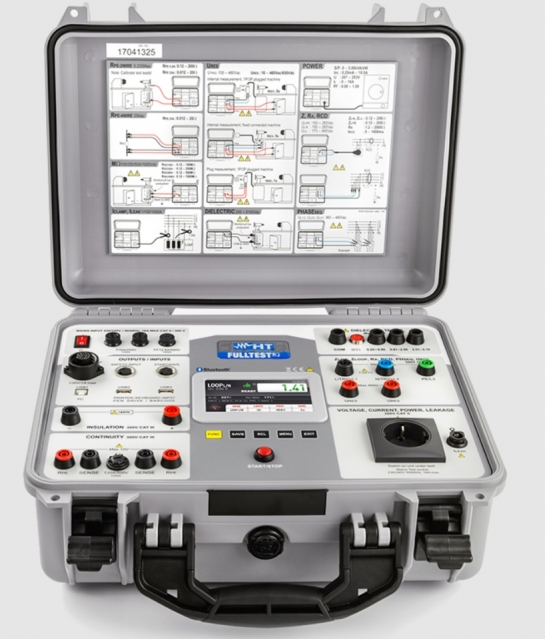

FULLTEST3 MULTIFUNCTION TESTER FOR SAFETY OF MACHINERY IEC/EN60204-1 AND LOW VOLTAGE SWITCHGEARS AND CONTROLGEARS IEC/EN61439-1-2
