Fluke 2042 Cable Trace Locator for

Code: Fluke 2042 2042T




Datasheet PDF, 0.16 Mb


Description

The multipurpose solution to cable location

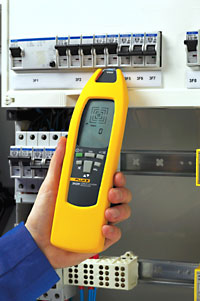

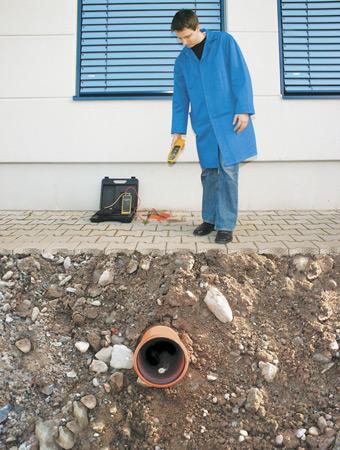

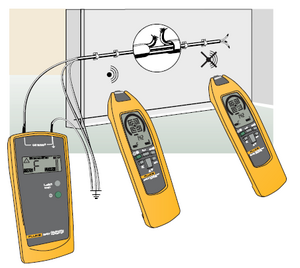

The Fluke 2042 is a professional general purpose cable locator. It is ideal for tracing cables in walls and underground, locating fuses/breakers on final circuits and locating interruptions and short-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes. The unit is supplied as a complete kit comprising of a transmitter and receiver in a purpose-made carry case. The receiver also incorporates a torch function for working in dimly lit locations.





  • For all applications (live or dead cables) without additional instruments

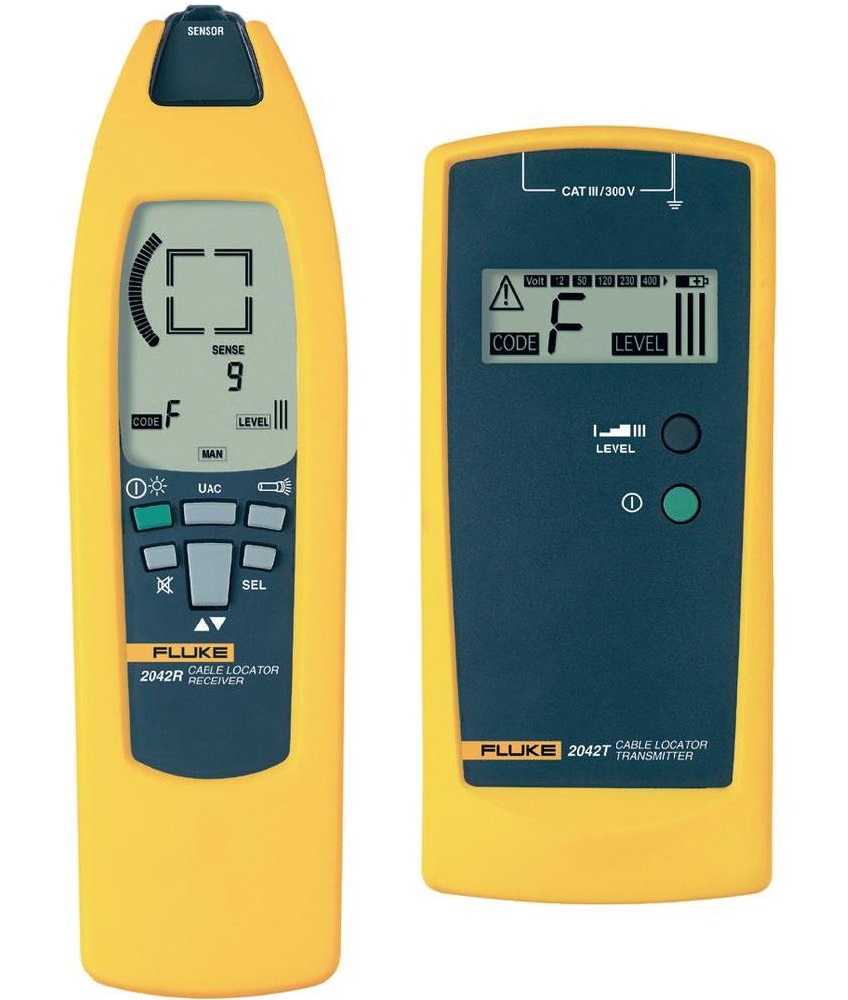

  • Set includes a transmitter and a receiver
  • Proven digitally coded sender signal guarantees clear signal identification
  • Transmitter with LC-display for transmitting level, transmitting code and external voltage
  • Receiver with a backlight LC-display for level of receiving signal, code of receiving signal and live voltage indication
  • Automatic or manual adjustment of receiving signal sensitivity
  • Acoustical receiving signal switchable
  • Auto-Power-Off
  • Additional torch lamp function for working in dark environments
  • Additional transmitters are available for extension of to distinguish between several signals



Safety Conformance
All inputs of the Fluke 2042 is protected to EN61010-1 CAT III 300V rating.

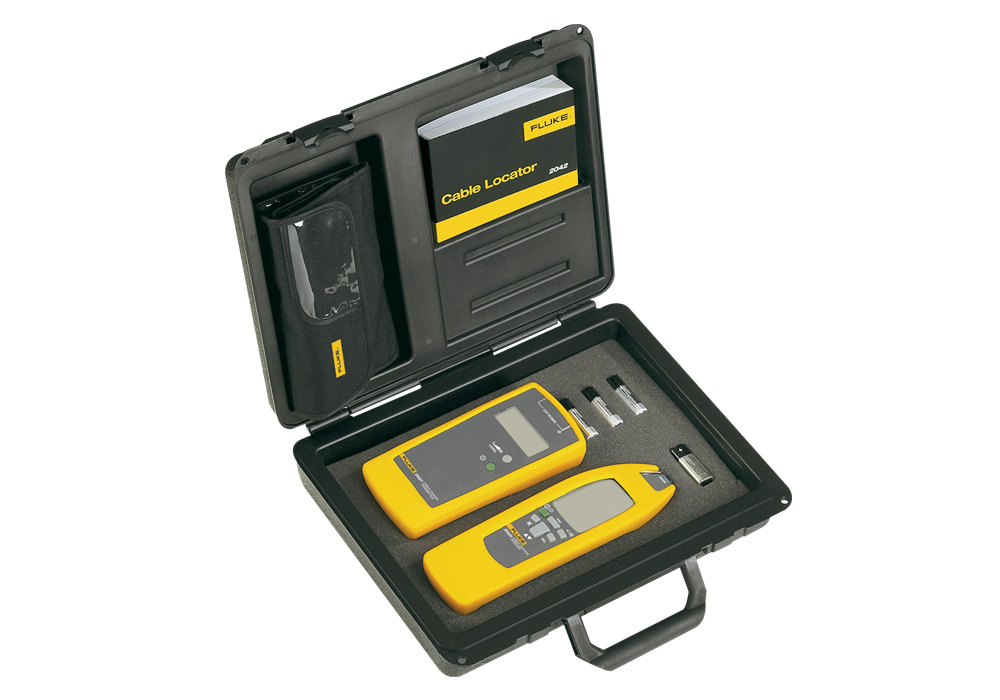

Standard accessories

Fluke 2042

Cable Locator

  • 4 test leads
  • battery 9 V, IEC 6LR61
  • 6 batteries 1.5 V, IEC LR^6
  • 2 crocodile clamps
  • 2 test probes
  • carrying case
  • user manual

Fluke 2042T

Spare/Additional Transmitter
