Fluke 700G/TRACK Datalogging Software for 700G Pressure Gauges

Code: Fluke 700G/TRACK




Datasheet PDF, 0.29 Mb


Description

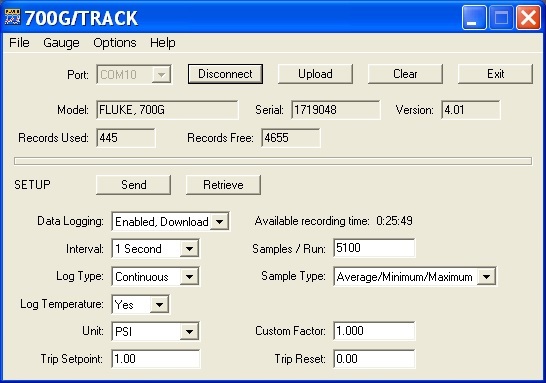

700G/TRACK Logging Software

• Use with 700G Series gauges to perform real time data logging to a PC

• Download logging configurations to the 700G Series gauges for a remote logging event

• Configure logging event reading rate, duration and measurement units

• Upload measurements logged remotely and display or export measurements

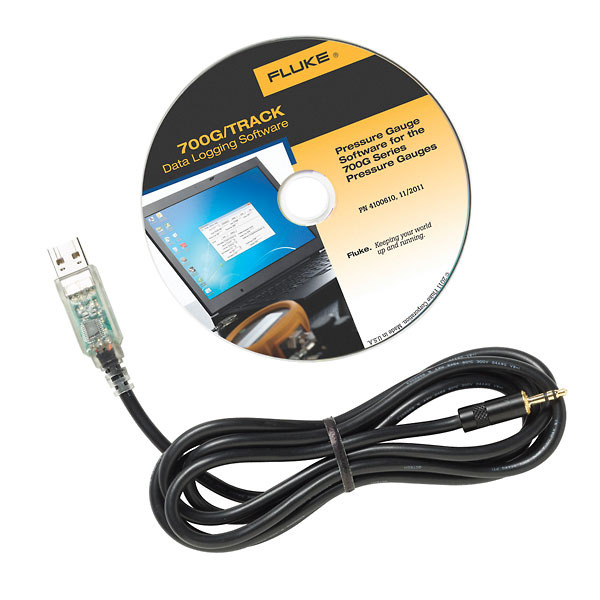

• Includes communication cable for connection to a PC







Standard accessories

Included accessories (Gauges)

Manual on CD-ROM in 14 languages

Traceable certificate of calibration

1/4? NPT to 1/4? ISO adapter



Fluke-700G01 Pressure Gauge, +-10 inH2O    -20 mbar to 20 mbar

Fluke-700G02 Pressure Gauge, +-30 inH2O    -70 mbar to 70 mbar

Fluke-700G04 Pressure Gauge, +-15 PSIG  -.97 bar to 1 bar

Fluke-700G05 Pressure Gauge, 30 PSIG   -.97 bar to 2 bar

Fluke-700G06 Pressure Gauge, 100 PSIG  -.83 bar to 6.9 bar

Fluke-700G27 Pressure Gauge, 300 PSIG  -.83 bar to 20 bar

Fluke-700G07 Pressure Gauge, 500 PSIG -.83 bar to 34 bar

Fluke-700G08 Pressure Gauge, 1000 PSIG  -.97 bar to 69 bar

Fluke-700G10 Pressure Gauge, 2000 PSIG  -.97 bar to 140 bar

Fluke-700G29 Pressure Gauge, 3000 PSIG  -.97 bar to 200 bar

Fluke-700G30 Pressure Gauge, 5000 PSIG  -.97 bar to 340 bar

Fluke-700G31 Pressure Gauge, 10000 PSIG -.97 bar to 690 bar

Fluke-700GA4 Pressure Gauge, 15 PSIA 0 to 1 bar absolute

Fluke-700GA5 Pressure Gauge, 30 PSIA  0 to 2 bar absolute

Fluke-700GA6 Pressure Gauge, 100 PSIA  0 to 6.9 bar absolute

Fluke-700GA27 Pressure Gauge, 300 PSIA  0 to 20 bar absolute

Fluke-700RG05 Pressure Gauge, Reference, 30 PSIG  -0.97 to +2 bar

Fluke-700RG06 Pressure Gauge, Reference, 100 PSIG  -0.83 to 6.9 bar

Fluke-700RG07 Pressure Gauge, Reference, 500 PSIG  -0.83 to 34 bar

Fluke-700RG08 Pressure Gauge, Reference, 1000 PSIG  -0.97 to 69 bar

Fluke-700RG29 Pressure Gauge, Reference, 3000 PSIG  -0.97 to 200 bar

Fluke-700RG30 Pressure Gauge, Reference, 5000 PSIG  -0.97 to 340 bar

Fluke-700RG31 Pressure Gauge, Reference, 10000 PSIG  -0.97 to 690 bar





700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR



Media compatibility

• 10 inH2O, 1, 15, 30 psi: any clean dry non-corrosive gas

• 100, 300, 500, 1000 psi: any liquids or gases compatible with 316 stainless steel and above 1000 psi: any non-flammable, non-toxic,

non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel.







Recommended options

700G/TRACK Data logging software and cable

Fluke-700HTPK Hydraulic test pump kit, 0 to 10000 PSI/690 BAR

Fluke-700PTPK Pneumatic test pump kit, 0 to 600 PSI/40 BAR
