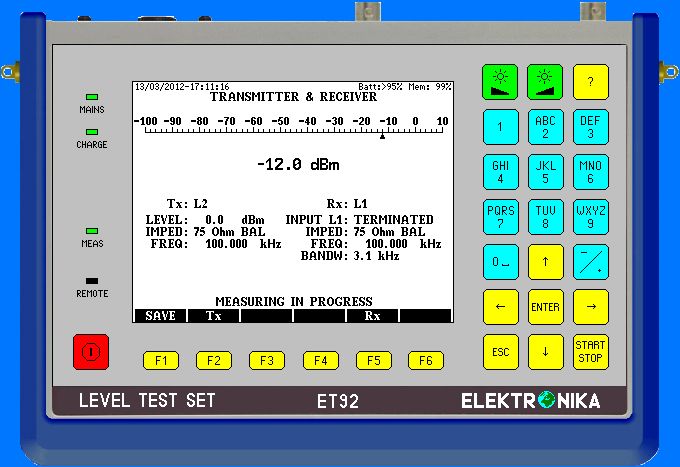

The LEVEL TEST SET ET 92 is a hand held battery operated, multifunction measuring instrument, intended for the test of Carrier Frequency Systems, Power Line Carrier, Tone, and FSK Communications Systems. In selective receiving mode five special bandwidths are provided for the measurement of noise, carrier leak, crosstalk and non-linear distortion. Numerous useful software options are provided to make ET 92 more effective.

Features:

Comfortable Frequency Setting Modes
Comfortable Frequency Tracking Modes
100Hz to 6 MHz Level Generator
100Hz to 6 MHz Level Meter
Spectrum Analyzer
Event Counter
Comfortable End to End Measurements
High Resolution Spectrum Analyzer
USB Ports for Result and Setup Transfer
Memory for Test Setups
