xDSL Service Tester & Troubleshooter EX 30M

Code: ELEKTRONIKA EX30M EX-30M




Datasheet PDF, 0.08 Mb

Description

EX 30M is a handheld, cost-effective test set to check DSL services and the copper cable capability. The "golden" reference modem of EX 30M can be remote controlled by an android application through Bluetooth connection.



The modem of EX 30M is able to qualify ADSL or VDSL lines installed and connected to the DSLAM. Having synchronized with DSLAM EX 30M provides useful information about the training process and the state of line:

• Actual bit rate (downstream / upstream)

• Line capacity

• SNR / Hlog / QLN / bit allocation / per tone

• Transmitted power

• Line attenuation

• Line alarms (LOS, LOF, LOP, LOM)

• Line errors (FEC, CRC, HEC)

• Ping test / trace route



The EX 30M "Golden" modem supports the most commonly used connection types




More products ELEKTRONIKA

DIGITAL LINE TESTER EDCT 2A

• CAS status analysis
• Auto-configuration function
• Storage of set-ups and results
• Voice channels monitoring through built in speaker
• External clock input



XDSL LINE QUALIFIER ELQ 2+

• TDR for fault location
• Load coil detection facility
• DC-AC bridge option
• 2.2 MHz frequency range for fix-frequency and spectrum measurements
• Longitudinal voltage protection



DATA LINE ANALYSER ELEKTRONIKA ELA 10

• Service telephone facility
• Loop holding and dialing (pulse and DTMF) for dial-up circuit testing
• Acoustic pair detection facility
• AC-DC Voltage measurement
• Memory for phone numbers
• In-service talk/listen and voice monitoring



TELEPHONE & EXCHANGE TESTER ETT 10

• Hand-held programmable instrument with microprocessor control
• Testing of subscriber lines, exchanges and telephone sets
• Hand-held programmable instrument with microprocessor control
• Ring generator for testing telephone sets
• Battery for feeding the telephone line with DC current



2,4 MHZ LEVEL TEST SET ET 91

• Psophometer
• Autmatic End to End Measurements
• High Resolution Spectrum Analyzer
• Measuring Bridge
• Memory Locations for Test Setups



VDSL LINE QUALIFIER ELQ 35

• Service Telephone Function
• PC Supported Spectrogram
• Long Time Micro Interruption Measurement
• Long Time Impulse Noise Measurement



LAN TESTER ELT 10

• Simple, menu controlled operation
• Intelligent measurement port
• Storage of setups and results/statistics
• Results can be logged on PC via USB
• Software upgrade via USB



TELEPHONE, EXCHANGE & DSLAM TESTER ETET 30

• SIX INSTRUMENTS IN ONE
• DMM LINE TESTER
• EXCHANGE SIMULATOR
• TELEPHONE SIMULATOR
• GOLDEN MODEM
• SPECTRUM ANALYZER
• TDR



CABLE FAULT LOCATOR ELEKTRONIKA ECFL30

• Capacitance Measurements
• DC Fault Location Methods
• AC Fault Location Methods
• Graaf Fault Location Method
• TDR Measurements

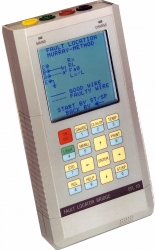

CABLE FAULT LOCATOR EFL 10
