Helps understand theories on the Microstrip Line Theory and Microwave Elements Design

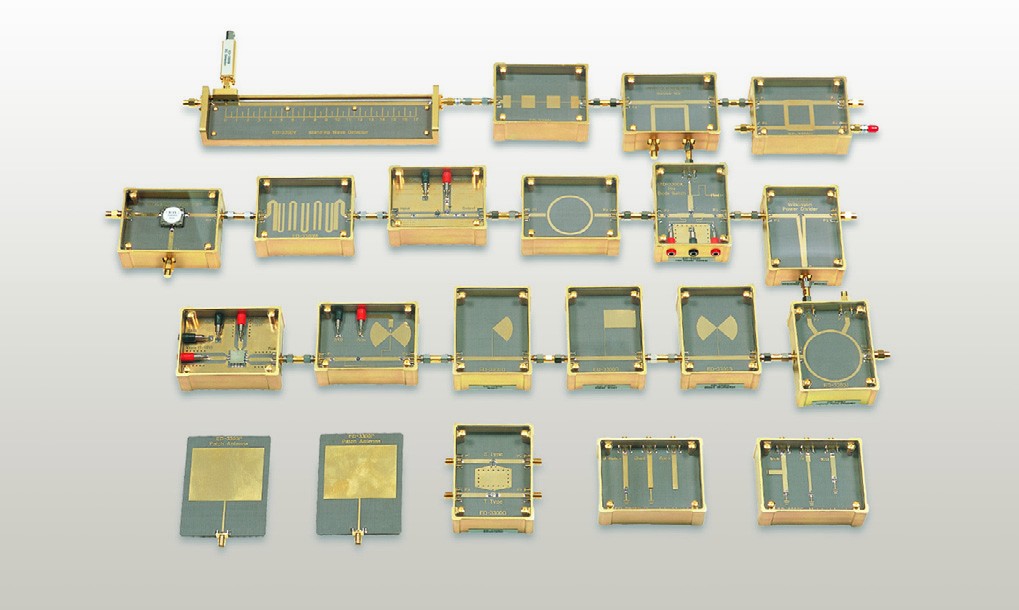

Composed of 22 types of modules such as VCO using Coupler, Divider, Circulator, Attenuator and Filter
SWR Detector, Modulation, Transmission/Reception, Detector, Self-Oscillation functions

More products ED

NETWORK TRAINING SYSTEM SERIES ED-NET4-X

• Step by step courses on the networks theories to train the engineers
• CISCO Router based training will help obtain CCNA, CCNP, CCIE certificates
• Functions and characteristics of network system(LAN Card, Router, L2 Switching Hub, L3 Switching Hub)
• 19Rack type structure for effective network configuration
• Optimized learning system for the Router based on one on one training(OPTION)

EMBEDDED SOFTWARE DESIGN MULTI PLATFORM ED-270M

• Foundation for the Ubiquitous System Build
• Intel PXA 270 high performance processors
• 6.4TFT LCD, Ethernet 3Port, Serial 3Port, PCMCIA/CF/MMC interfaces
• FPGA Chip Altera Cyclone 4,000 LEs(12,000 LEs Option) for SoC courses
• Processor Core Board & CMOS Image Sensor

PC BASED POWER ELECTRONICS TRAINER ED-1430

• 5 experimental modules for power electronics covering basic theory and applied experiments
• Capable of real-time measurements on PC by linking it to CBIS-1400 model
• By connecting PC to the Docking station, contact control is implemented on MMI(HMI) based software
• Report on experimental results & electronic manual on PC

SQUIRREL CAGE INDUCTION MOTOR/ DC GENERATOR MG-5212

• Start and load characteristics of squirrel cage induction motor
• Alteration of the rotative directions of squirrel cage Induction Motor
• Slip speed and torque of induction motor
• Induction motor’s no-load power factor and load power facto

DAQ(DATA ACQUISITION) TRAINER ED-4110

• Remote mode by PC and Local mode by manual operation on the panel
• Graphical display of diagrams on panel for AD/DA conversion procedures
• DSO embodiment by A/D Converter for collection and analysis of analog data on PC
• Storage of measured data and generation of 5 wave forms required for experiments through D/A Converter

FACTORY AUTOMATION TRAINER ED-4031

• Comprehension of basic production automation processes such as transfer, fabrication, classification, inspection and storage
• Convenient wiring and pipe arrangement with a label of each component such as sensors and actuators
• PLC training system function(various types of sequence actions through a change in PLC control program
• Counter/timer function and motor control by PLC or without PLC(electrical method)
• Aluminum profile worktable & control modules for easy mounting

PC BASED ANALOG COMMUNICATION TRAINER ED-1460

• Interlocking system package with CBIS-1400 and DS-1410 Models (Options)
• Experiments on a measurable low frequency bandwidth
• Realistic experiments on modulation and demodulation
• Verification of the output waveform on PC engaged with CBIS-1400 Model

DIGITAL COMMUNICATION TRAINER ED-2970

• Modularized by the function of digital communication circuits
• FSK, ASK, PSK, QPSK and digital communication principles
• 12 types of modules including a power supply unit

BASIC ELECTRICITY & ELECTRONICS TRAINER ED-1010

• Various types of circuit experiments with 17 basic modules plus 3 optional modules
• Main console(power supply) and storage cabinet

ED PSA-3000 SPECTRUM ANALYZER 9 KHZ..3 GHZ

• High-performance digital synthesizer method
• Wide Frequency Coverage : 9 kHz ~ 3.0 GHz
• Superior Resolution : Minimum 1 Hz
• Compact & Portable size
• Pre Amp as standard
• Wide Input Dynamic Range : -130 ~ 20 dBm
• Various and Convenient Interfaces : USB, LAN
