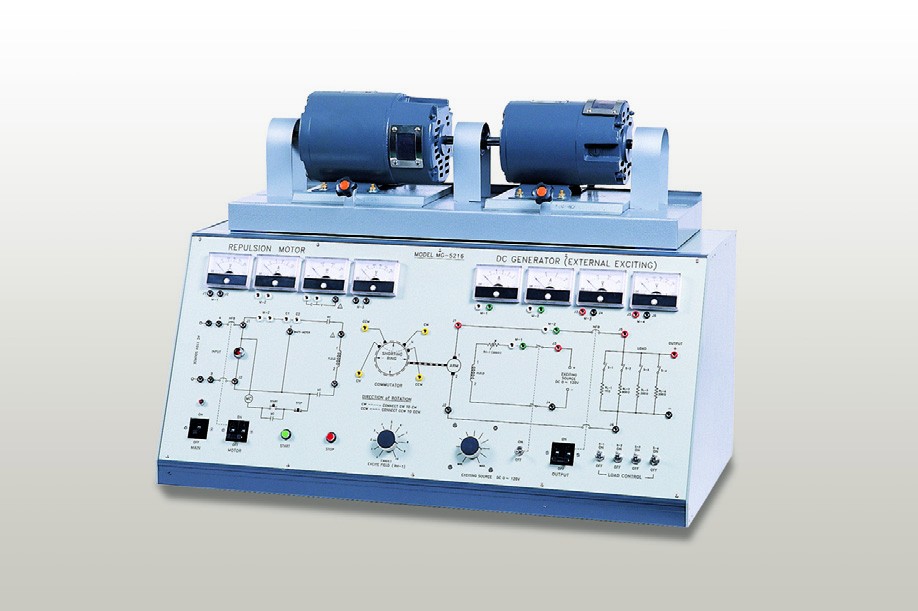

Motor / Generator Trainer Unit MG-5216

Code: MG-5216




Datasheet PDF, 0.51 Mb

Description

MOTOR SECTION

  • Winding Type : Repulsion Start, 2 Field Stator
  • Speed : 1750 RPM
  • Input Voltage : AC 220V, 60Hz
  • Input Current : 5A(110V), 2.5A(220V)
  • Number of Poles : 4 poles
  • Horsepower : HP
  • Direction of Rotation : CW, CCW
  • Indication Meter : 1-voltage, 2-current, 1-RPM(digital), 1-watt
  • Overload Trip : 7A
  • Shunt Rheostat : 0 ~ 300?, 50W
  • Exciting Power : DC 0 ~ 120V, 1A
  • Indication Meter : 2-current, 2-voltage
  • Overload Trip : 2A
  • Load Resistance : 48?~480?, 500W



GENERAL CHARACTERISTICS

  • Main Input Voltage : AC 220V, single phase
  • Rating : 30 minutes
  • Dimension : 960(W) x 670(H) x 480(D)mm
  • System Weight : 91 kg



GENERATOR SECTION

  • Winding Type : Shunt(Separator)
  • Speed : 1750 RPM
  • Output Power : 120V, 1A
  • Number of Poles : 2 poles
  • Field Excitation : Separately excited



ACCESSORIES

  • Patch Cord(ø4 Plug) : 1set
  • AC Power Cord : 1ea
  • Experimental Manual : 1ea
