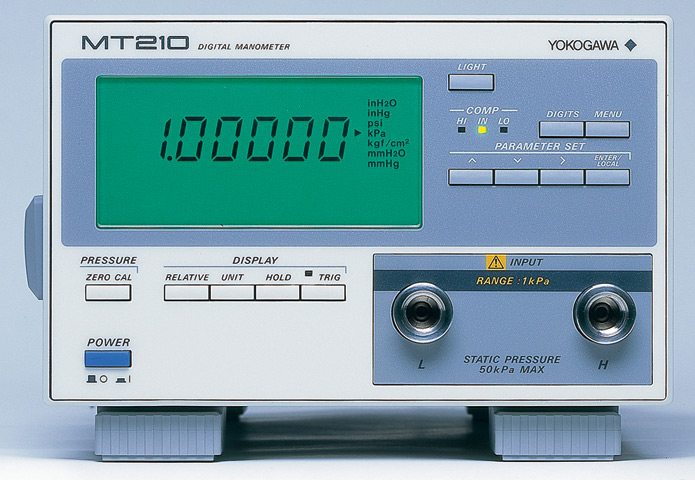

YOKOGAWA Manometru digital MT210 MT210F

Cod: YOKOGAWA MT210 MT210F




Brosura produs PDF, 0.68 Mb

Descriere

The MT210/210F series of digital manometers, produced by combining YOKOGAWA's best pressure measurement technologies, offers excellent accuracy, reliable operation, and a variety of applications. These measuring tools provide the perfect solutions for a wide range of technologies.



Features:

  • High accuracy:
    ±0.01%, with a maximum allowable input of 500 kPa (130 kPa-range model)
  • A wide range of pressures:
    Offering low differential pressure of 1 kPa to a high gauge pressure of 3000 kPa
  • Three measurement modes:
    Normal speed, medium speed, and high speed (MT210F series)
  • Options:
    D/A conversion output, comparator output, and external trigger input (optional)
    GP-IB and RS-232 interfaces, l12-V DC power supply, lBattery operation (optional)
