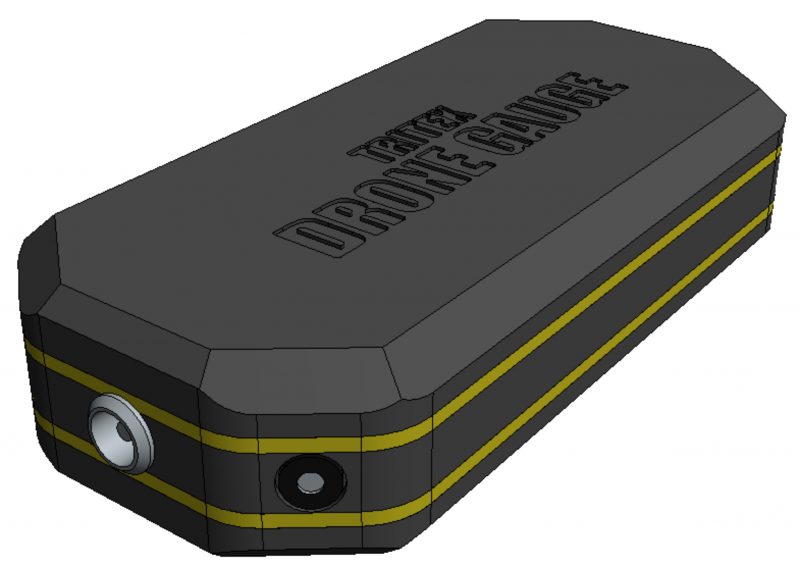

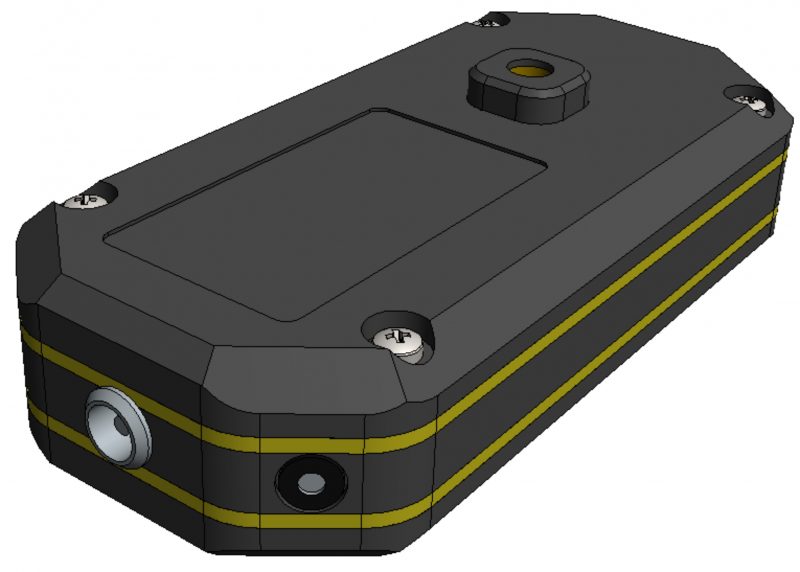

Tritex Multigauge 6000 Drone Thickness Gauge

Descriere

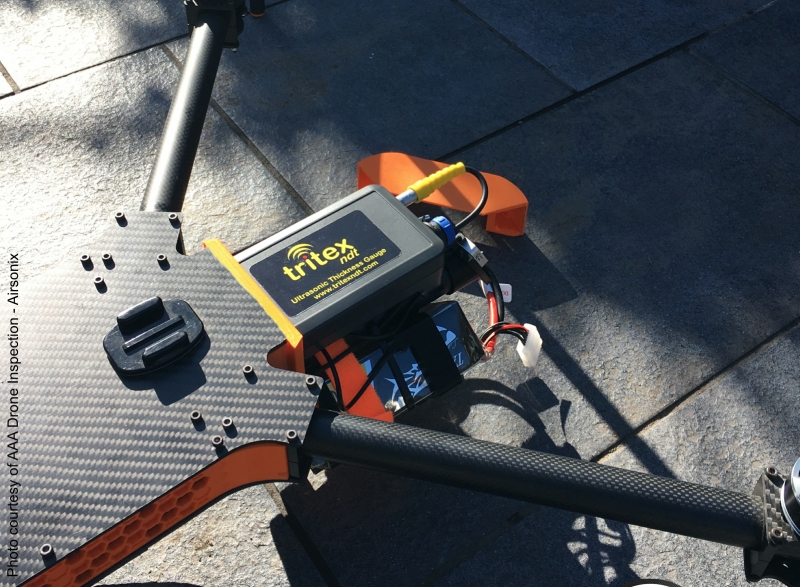

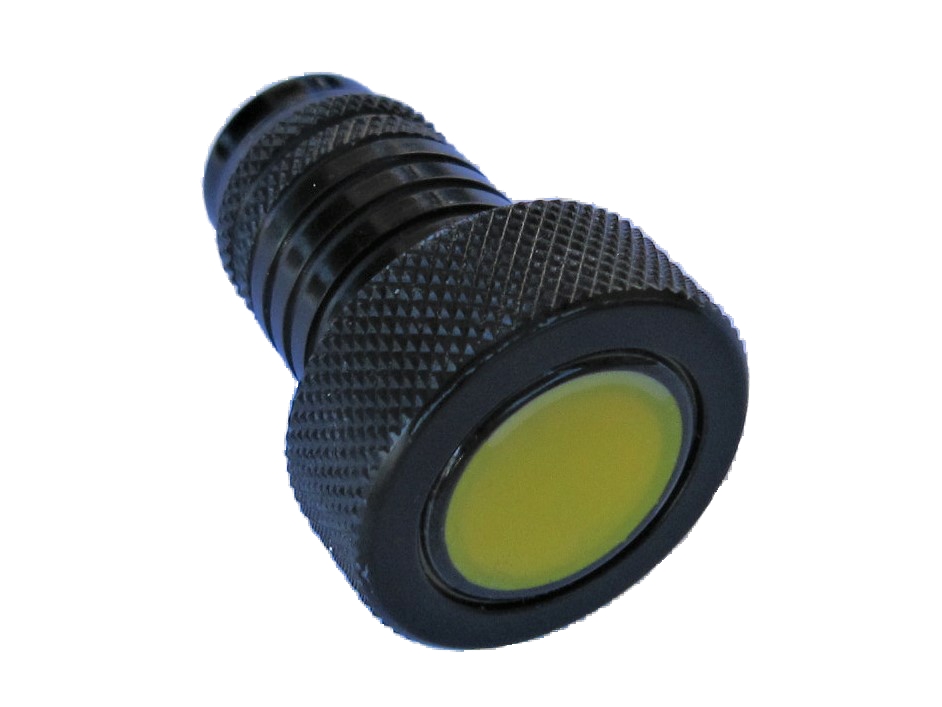

The Multigauge 6000 Drone Thickness Gauge has been specifically designed to mount onto drones or unmanned aerial vehicles (UAV). The measurements are transmitted wirelessly in real time to a PC or laptop up to 500 metres away. The lightweight drone thickness gauge is also supplied with a plastic probe to further reduce weight.

Multiple Echo technology ignores coatings up to 6mm thick, therefore just the metal substrate is measured. All probes have Intelligent Probe Recognition (IPR), which automatically adjusts settings in the gauge at the same time as transmitting recognition data � the result is a perfectly matched probe and gauge for enhanced performance. Additionally, the Automatic Measurement Verification System (AMVS) ensures only true measurements are displayed, even on the most heavily corroded metals.

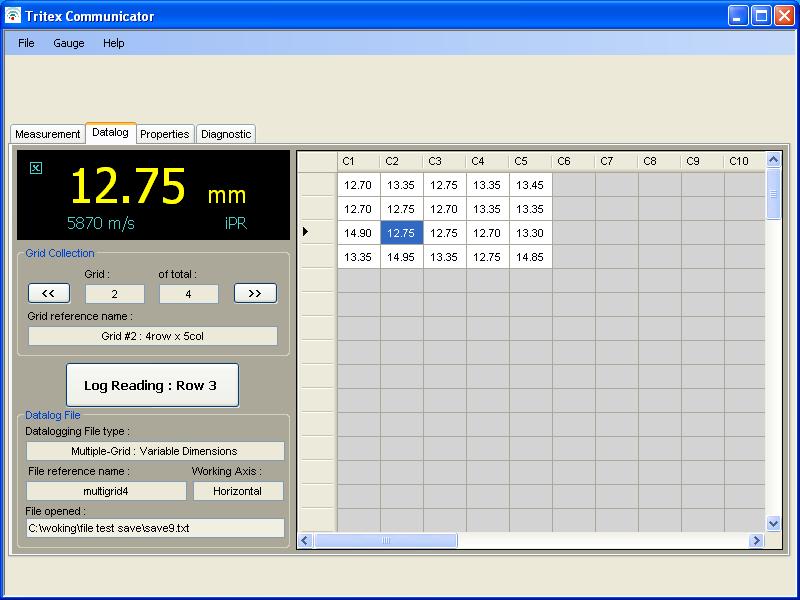

Dedicated software, called Communicator, acts as the interface between the Multigauge 6000 Drone Thickness Gauge and the PC allowing storage of measurements from the gauge in either a grid or string format, which can be used later in other proprietary programs.

Features:

• Easily mounts onto most drone and UAV types.
• Ignores coatings up to 6 mm thick using Multiple Echo. Coating Plus+ ignores coatings up to 20 mm.
• Automatic Measurement Verification System (AMVS).
• Wirelessly transmits measurements up to 500m.
• No couplant required. Dry membrane.
• Lightweight.
• No zeroing required.
• 10Vdc � 32Vdc input supply.
• Lightweight Single crystal soft faced probe.
• Easy calibration.
• Intelligent Probe Recognition (IPR).
• Echo strength indicator.
• 3 year warranty.
