Product number	Productname	ISO Class certifier and Adapters
33-991	LanTEK II-350	TIA/EIA Cat. 6, ISO Class E certifier w/ Cat. 6 adapters
33-992	LanTEK II-500	TIA/EIA Cat. 6, ISO Class E certifier w/ Cat. 6_Aadapters
33-993	LanTEK II-1000	TIA/EIA Cat. 7_A, ISO Class F/F_A certifier w/ Cat. 6_Aadapters

Frequency range of 500 MHz
LAN cable certification to ISO Class EA / Category 6A standard

Fast test speeds - 11-second Class D/Cat 5e and 14-second Class E/Cat 6 autotest times that include full graphical data storage
Patented test method - certify with off-the-shelf patch cords eliminating the need for expensive permanent link adapters

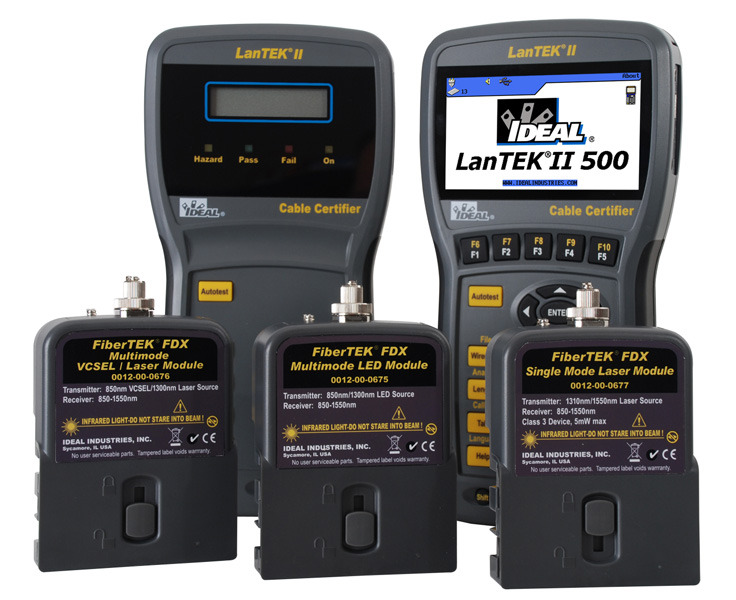

Unique FiberTEK® FDX modules - fastest and easiest fibre certification
DualMODE function - certify to two different standards with one press of the Autotest button
Maximum reporting power with the new IDEAL DataCENTER (IDC) software
Enormous memory capacity - save an astonishing 1,700 ISO Category 6 / Class E results with graphs
Smart lithium battery technology - amazing 18 hours of field use
11 cm widescreen display - superb with 160° viewing angle
Accuracy independently verified by ETL
Contents:
LanTEK® II Display and Remote Handset, two smart lithium ion batteries, two 110-240V power adapters
with US/EU/UK plugs, lockable semi-rigid carrying case, Cat6_A F/FTP patch cords, USB cable, IDEAL
DataCENTER data management and reporting software, two headsets, hanging straps, calibration, and ETL accuracy certificate, quick reference guide, user manual on CD.

Accesorii standard

33-991 LanTEK II-350: TIA/EIA Cat. 6, ISO Class E certifier w/ Cat. 6 adapters

33-992 LanTEK II-500: TIA/EIA Cat. 6A, ISO Class EA certifier w/ Cat. 6A adapters

33-993 LanTEK II-1000: TIA/EIA Cat, 7A, ISO Class F/FA certifier w/ Cat. 6A adapters

Contents:

LanTEK® II Display
Remote Handset
2 x smart lithium ion batteries
2 x 110-240V power adapters with US/EU/UK plugs,
lockable semi-rigid carrying case,
Cat. 6A F/FTP patch cords,
USB cable,
IDEAL DataCENTER data management and reporting software,
2 x headsets,
hanging straps,
calibration and ETL accuracy certificate,
quick reference guide,
user manual on CD.

Optiuni recomandate

33-990-FA01 FiberTEK® FDX Multimode (850/1300nm) kit with LED light sources for standard multi-mode fiber, 850nm LED, 1300nm LED

33-990-FA02 FiberTEK® FDX Multimode (850/1300nm) kit with VCSEL/laser light sources for laser optimized fiber, 850nm VCSEL, 1300nm FP laser

33-990-FA03 FiberTEK® FDX Single mode (1310/1550nm) kit with laser light sources for single mode fiber, 1310nm FP laser, 1550nm FP laser

33-990-FA04 FiberTEK® FDX Combination MM/SM kit with LED MM sources and laser SM sources (33-990-FA01 & 33-990-FA03)

33-990-FA05 FiberTEK® FDX Combination MM/SM kit with VCSEL/laser MM sources and laser SM sources (33-990-FA02 & 33-990-FA03)

Contents:

2 x FiberTEK® FDX modules,
semi-rigid carrying case,
SC, FC, ST adapters for modules (2 ea),
SC-SC patch cords (MM kits: 3 x 62.5µm, 3 x 50 µm; SM kits: 3 x 9 µm) compliant to ISO/IEC 14763-3 standard,
quick reference guide,
electronic operation manual.

Alte produse TREND NETWORKS

TESTER GIGABIT RETEA CABLU FIBRA OPTICA IDEAL INDUSTRIES SIGNALTEK II FO

• Suitable for both copper and fibre
• Full Gigabit bi-directional load testing
• Additional Ethernet troubleshooting capabilities
• Wiremapping by pin as well as pair
• Reporting of test results
• Load test through hubs and switches

TESTER CABLU VOCE, VIDEO IDEAL INDUSTRIES VDV II R158000

• VDV II performs standard tests for copper cabling
• Coax, 6Pin (RJ11/12), 8Pin (RJ45) Connectors for Copper Cable Testing
• Wiremap for Miswires, Split Pairs, Shorts and Opens
• Analog Tone Generator
• Voltage Protection
• Shielded Cable Testing
• Single Screen Results

TESTER TRANSMISII DATE GIGABIT IDEAL INDUSTRIES SIGNALTEK CT

• Cartografiere avansata a retelei folosind TDR
• Efectuarea testului de performanta Gigabit conform standardului IEEE802.3ab
• Generarea automata de rapoarte in format PDF.
• Incarcarea rapoartelor pe stick USB direct, fara necesitatea utilizarii unui PC/Laptop.

TESTER DSL IDEAL INDUSTRIES UNIPRO GBIS G.SHDSL

• Physical tests of the copper pairs
• G.SHDSL Synchronisation tests
• Measurement of G.SHDSL performance
• Comparison with acceptance targets
• ATM / EFM Encapsulation /Bonding
• Up to 4 pairs G.SHDSL /G.SHDSLbis

TESTER RETELE CABLU LAN SI WIFI IDEAL INDUSTRIES LANXPLORER PLUS

• WIFI: Display of numbers of access points, available SSIDs, channels used and signal strength
• Generation of wiremaps
• Length measurement
• Recognition of PoE and PoE+ voltage
• Support of 10/100/1000 Ethernet
• Automatical DHCP recognition
• Variable Ping function for URL and IP adresses

SURSA LUMINA ROSIE LOCALIZARE VIZUALA DEFECTE IN FIRBA OPTICA IDEAL INDUSTRIES VFF5

• Finds Breaks, Faulty Splices and Crimps Poor Components or Connections
• Low-Cost, Basic Fiber Test Tool
• High Output, Class 2, 670nm Laser Diode
• Includes Carrying Case, Lens Cap, Batteries, Lanyard, and Instruction Sheet,
• Rugged, Rubber Coated Metal Housing
• 2.5mm Universal Adapter

KIT TESTARE FIBRA OPTICA: POWERMETRU + SURSA LUMINA IDEAL INDUSTRIES 33-928 FIBERMASTER

• Power Meter: 850, 1300/1310, 1490 and 1550 wavelength measurement capability
• Light Source: 850 nm light source (33-928 kit)

TESTER CABLU VOCE VIDEO IDEAL INDUSTRIES VDV II PRO R158003

• Coax, 6Pin (RJ11/12), 8Pin (RJ45) Connectors for Copper Cable Testing
• Wiremap for Miswires, Split Pairs, Shorts and Opens
• Analog Tone Generator
• Hub Blink
• Cable Length
• Distance to Open / Short (TDR)
• PoE Detection with Voltage Information
• Media Service Detection
• Ethernet Detection with Network Rate and Duplex Information

TESTER GIGABIT RETELE LAN - IDEAL NETWRKS SIGNALTEK NT

• Tester retea LAN - Ideal Network SIGNALTEK NT
• Testarea de performan?a Gigabit pe cabluri pasive ?i re?ele active
• Genereaza rapoarte de testare la standardul IEEE 802.3ab
• Simuleaza trafic de re?ea video VoIP / CCTV / Web/ IP
• Teste viteza de conectare, ID port, ping, trace route, IPv4 / IPv6
• Testarea avansata PoE / PoE +

TESTER RETELE CABLU LAN ETHERNET POE+ IDEAL INDUSTRIES LANXPLORER

• Generation of wiremaps
• Length measurement
• Recognition of PoE and PoE+ voltage
• Support of 10/100/1000 Ethernet
• Automatical DHCP recognition
• Variable Ping function for URL and IP adresses
• Trace Route function

Certificator CAT6A retele cablu LAN cf.ISO Clasa EA Ideal Industries LanTEK II-500 33-992PRODUS OBSOLET ( * SCOS DIN UZ )

Certificator CAT6A retele cablu LAN cf.ISO Clasa EA Ideal Industries LanTEK II-500 33-992
PRODUS OBSOLET ( * SCOS DIN UZ )
