Identificator faza selectie cablu de tensiune Seba PVS 100

Cod: Seba-KMT PVS-100




Brosura produs PDF, 1.13 Mb


Descriere

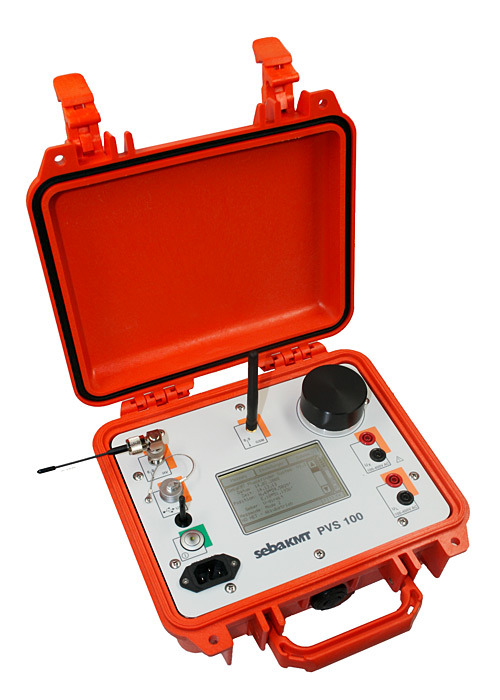

PVS 100

The exact knowledge of the phase assignment in the area of power distribution is an essential requirement for the safe and reliable power network operation. This covers all voltage levels from a low voltage distribution to high voltage transmission systems. A phase identification or verification is required for the determination of load distribution, the control of the phase assignment of old or new installation and prior to switching to avoid damages and outages. The phase identification with the PVS 100 enhances the safety of power distribution systems and prevents accidents.

Key benefits:

  • Clear determination of the phase assignment in respect to a reference phase
  • Determination of the phase by GPS synchronisation and GSM connection
  • Offline measurement without data connection by post synchronisation possible
  • Easy entry and correction of transformer vector groups
  • Reliable function in all voltage levels
  • Easiest operation





  • Identifies the phase at all voltage levels in real time
  • Functions with and without a permanent data connection
  • Easy to operate
  • Eliminates safety risks
  • Saves time and money



All the advantages at a glance

Direct phase indication with a GSM/GPS connection or with an available low voltage connection

Extremely easy input of phase shifts/vector groups by using the zero key

Can operate independently of GSM or GPS reception with synchronisation

of the stored readings

Internal memory for 10 days of continuous operation

Li-Ion battery for 10 hours of operation

Data transfer via USB

Operation via LCD touch screen

Intuitive operating software

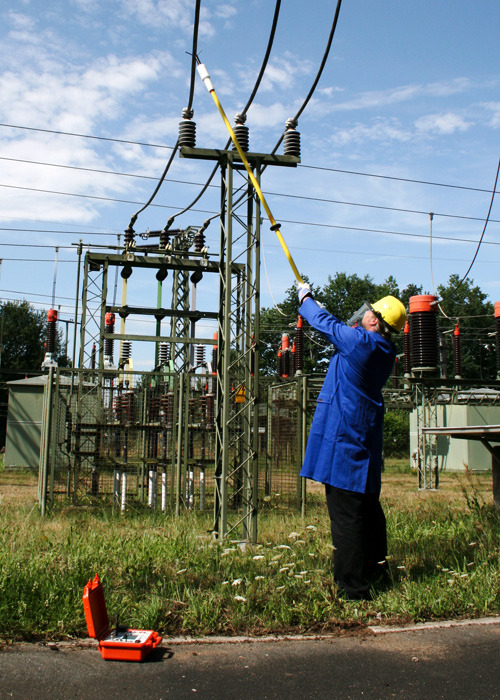

High voltage sensor with bidirectional wireless transmission to PVS 100

and direct visual signalling









Accesorii standard

Phase verification system,

full set

»» 2 x PVS 100 incl. GPS outdoor unit

»» High voltage sensor with probe tips

»» Insulating rod 110 kV

»» 2 x cable set

»» Tripod for GPS module with holder

»» PVS probe for capacitive taps

»» Charger for HVS 120-36 and PVS probe

»» 2 GSM aerials with holder

»» 2 cases/trolleys for PVS 100

Phase verification system,

additional device

»» 1 x PVS 100 incl. GPS outdoor unit

»» High voltage sensor with probe tips

»» I nsulating rod 110 kV

»» Cable set

»» Tripod for GPS module with holder

»» PVS probe for capacitive taps

»» Charger for HVS 120-36 and PVS probe

»» GSM aerial with holder

»» 1 case/trolley for PVS 100
