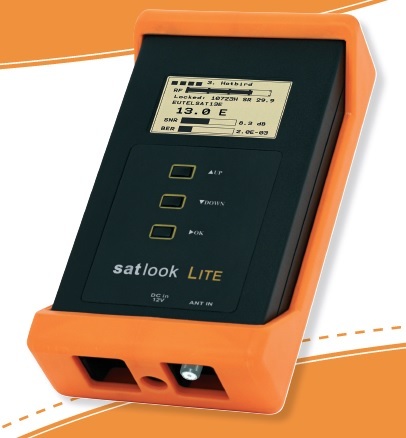

Tester satfinder cautare si aliniere antene TV satelit SATLOOK Lite

Cod: SATLOOK Lite




Brosura produs PDF, 0.86 Mb

Descriere

• Very handy and easy to use Satellite-TV meter.

• "EasyFind"- satellite identification for super fast installations.

• Very sensitive, easy to maximize weak and strong signals

• Digital BER and S/N-ratio

• Spectrum-analyzer 920-2150 MHz with zoom function

• Super bright LCD display with backlite

• Readout NIT -tells Satellite ID and TV/Radio-channel info

• DiSEqC according to level 1.0, 1.1 and 1.2

• LNB voltage 13/18V, 22KHz tone switch

• Easy to connect with PC for upgrades.

• Built in, rechargeable battery

• Nice & small, less then 1kg incl. battery.

• CE- approved, Made in Sweden





Technical specification:

Input frequency: 920-2150MHz.

Sat-TV min level in: About 35 dBuV (noise).

Sat-TV max level in: About 100 dBuV.

Input impedance: 75 Ohm, F-connector

Measuring method: EasyFind satellite-search.

BER (bit error rate) S/N (signal/noise-ratio)

Spectrum analyzer

Max-level: Thermometer scale showing max.

Maxhold function.

BER and S/N showing max values.

Pitch-tone, highest tone on loudspeaker.

Satellite-identification: Yes, by reading out the NIT in thebitstream. Info about the TV and Radio channels.

Satellite locks on: FEC, Symbol-rate Frecuency,13/18v, 22kHz.

Presentation: On LCD with backlite.

Power out: Yes, 13-18V.

22 kHz tone: Yes, on/off.

DiSEqC: Yes, 1.0 and 1.1.

Upgrade software: Yes.

Battery: Built in, rechargable LiP-type.

Operational: About 1 hour fully charged.

Weight: Less then 1kg incl.battery.

Accessories: Power-supply of 230V12V,1.2A, Car-charger



Alte produse SCANDINAVIA

EASYSPLICER APARAT SUDURA FIBRA OPTICA - KIT COMPLET

• EasySplicer Aparat sudura fibra optica - KIT complet -> 1190 EUR + TVA
•
• Suduri pe fibra optica foarte simple si rapide cu EasySplicer
• Pentru ambele moduri: Singlemode si Multimode
• Timpi de sudare sub 7 secunde
• Estimarea pierderilor
• Test de tragere dupa efectuarea sudurii
• Cuptor integrat
• Simplu de utilizat si transportat
• Perfect pentru instalari FTTH



EASYSPLICER OTDR OPTICAL TIME DOMAIN REFLECTOMETER FIBER OPTIC TEST TOOL

• • Professional instrument for measuring loss and finding faults in fiber networks
• • Optical Time-Domain Reflectometer
• • Measure distance from 0 to 60km, in resolution of 1m
• • Measure dB loss with a resolution of 0.01 dB
• • Auto mode for super easy operation (and Expert Mode for Experts)
• • 4.3 inch, multicolor LED touchscreen
• • Comes in sturdy carrying-case with launce cable and 4x adapter cables
• • VFL, OPM and OLS, two wavelengths - 1310nm and 1550nm
• • RJ45 cable tracker and distance readout (up to 300m)

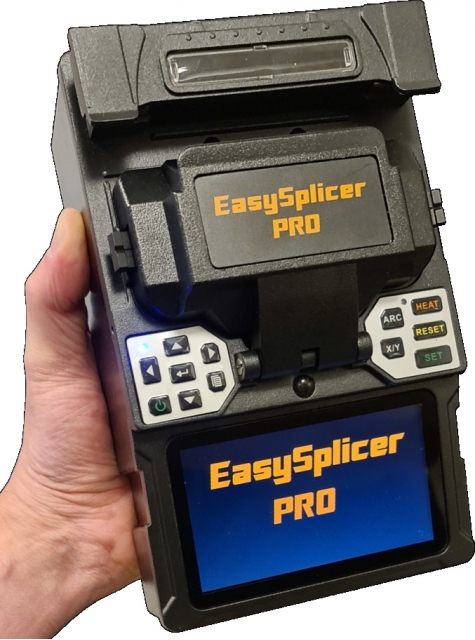

SB SCANDINAVIA EASYSPLICER PRO - APARAT DE SUDURA FIBRA OPTICA CORE POSITIONING
