Signalstrength is presented on the LCD-display. In analog mode it shows a single channel or six channels at the same time. You can also choose to view the signal in spectrum mode.

In digital mode it displays the BER (bit error rate) and C/N carrier/noice ratio).

MER is also available.

Furtermore DIGIAIR Pro T2/C present pitchtones (the higher tone the stronger signal) on a loudspeaker.

DIGIAIR Pro T2/C is very sensitive and can detect even the weakest signals.

DIGIAIR Pro T2/C can feed Voltage (5/12 Volt) to external active antennas this feature is short-circuit protected by an automatic fuse.

DIGIAIR Pro T2/C is charged via an external DC power-source of 10 -18 volt.

The DIGIAIR Pro T2/C operates with 8xAA rechargeable batteries. The unit will work for at least 2 hours with fully charged batteries.

Even though the DIGIAIR Pro T2/C has a lot of functions it is still very easy to use and has a very compact design.

Input frequency: 45-860 MHz.

Input level: 30-80 dBuV.

Input impedance: 75 Ohm, F-connector.

Short circuit protection: Automatic fuse on antennainput.

Measuring method: in digital Three bars showing PreBER, PostBER(bit error rate) and C/N(carrier/noice ratio).

in analog One bar showing dBuV in high resolution or 6 bars showingstrength of 6 channels.

Spectrum display.

Pitch tone indication from beeper.

Signal-level readout: digital BER's and C/N values.

Analog dBuV with maxhold-function.

Power out: 0V, 5V,12V and 24V on/off.

Power supply/charger: 10 -18V DC (Centerpin +).

Display: Back-lighted 128x64 Pixels LCD.

Power consumption: 500mA.

Battery: 8x AA rechargeable batteries of1200mA each.

Weight: 0.3 kg.

Dimensions: 185 x 115 x 50 mm.

Accessories: Powersupply 12V DC, 1ARubber-case.Power supply.Car charger

Alte produse SCANDINAVIA

TESTER TV TERESTRIAL SI CABLU, ANALOG SI DIGITAL DVB-T, DVB-T2, DVB-C DIGIAIR PRO T2/C

• for exact alignment andadjustment of terrestrial antennas (DVB-T, DVB-T2 and DVB-C)
• both analog (dBuV, dBm, dBmV) and digital (BER, C/N, MER)
• Frequency range of 45-860MHz
• Made in Sweden

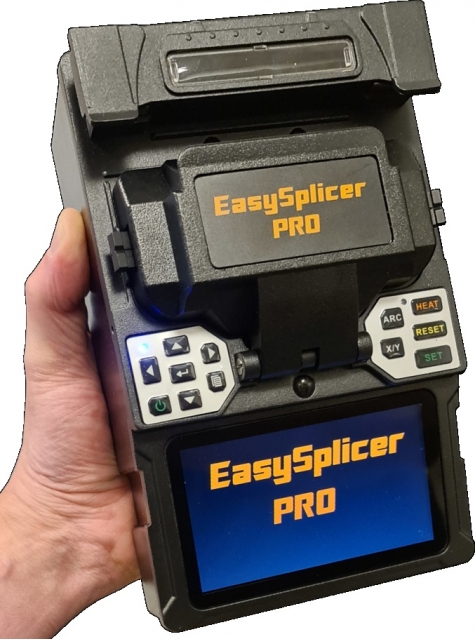

SB SCANDINAVIA EASYSPLICER PRO - APARAT DE SUDURA FIBRA OPTICA CORE POSITIONING

• � Splicing method: Core positioning (X/Y).
• � Fiber Types: SMF, MMF 50/125�m, 62.5/125�m fiber.
• � 250�m primary and 900�m secondary coated fiber.
• � Fiber Handling: Fiber holders, 3 pairs (250, 900 and loose tube).
• � Optional for any cable-type (drop-cable, 2mm, 3mm,
• � Splice on connectors and so on.
• � Calibration: Automatic (temperature and air pressure) or manually.
• � Splice Programs: 40 groups.

EASYSPLICER APARAT SUDURA FIBRA OPTICA - KIT COMPLET

• EasySplicer Aparat sudura fibra optica - KIT complet -> 1190 EUR + TVA
•
• Suduri pe fibra optica foarte simple si rapide cu EasySplicer
• Pentru ambele moduri: Singlemode si Multimode
• Timpi de sudare sub 7 secunde
• Estimarea pierderilor
• Test de tragere dupa efectuarea sudurii
• Cuptor integrat
• Simplu de utilizat si transportat
• Perfect pentru instalari FTTH

TESTER SATFINDER CAUTARE SI ALINIERE ANTENE TV SATELIT SATLOOK LITE

• Very handy and easy to use Satellite-TV meter.
• �EasyFind�- satellite identification for super fast installations.
• Very sensitive, easy to maximize weak and strong signals
• Digital BER and S/N-ratio
• Spectrum-analyzer 920-2150 MHz with zoom function
• Super bright LCD display with backlite

EASYSPLICER OTDR OPTICAL TIME DOMAIN REFLECTOMETER FIBER OPTIC TEST TOOL

• � Professional instrument for measuring loss and finding faults in fiber networks
• � Optical Time-Domain Reflectometer
• � Measure distance from 0 to 60km, in resolution of 1m
• � Measure dB loss with a resolution of 0.01 dB
• � Auto mode for super easy operation (and Expert Mode for Experts)
• � 4.3 inch, multicolor LED touchscreen
• � Comes in sturdy carrying-case with launce cable and 4x adapter cables
• � VFL, OPM and OLS, two wavelengths - 1310nm and 1550nm
• � RJ45 cable tracker and distance readout (up to 300m)

TESTER NIVEL SEMNAL TV ANALOG SI DIGITAL DVB-T DIGIAIRPRO

• for exact alignment and adjustment of terrestrial antennas DVB-T
• for both analog (dBuV) and digital (BER and SNR)
• Frequency range of 45-860MHz.
• The meter to use for easy Digital terrestial installations.
• Very sensitive, easy to maximize weak and strong signals.
• Signal level reads out in dBuV

TESTER SEMNAL TV PRIN CABLU ANALOG SI DIGITAL DIGIAIRPRO CATV

• Perfect for digital CATV installations (QAM), DVB-C
• For both analog (dBuV) and digital (MER and BER)
• Handy spectrum-analyzer for frequency 45-860MHz.
• Easy digital readout of MER, BER and Constellation diagram.
• QAM16, QAM32, QAM64, QAM128 & QAM256.
• Analog signal level reads out in dBuV, dBmV and dBm with maxhold function.

TESTER TV PROFESIONAL CU ANALIZA DE SPECTRU SATLOOK HD COLOR

• Spectrum-analyzer 950-2150MHz.
• DVB/S S/2 -receiver 920-2150MHz.
• Super bright 5� 16:9 TFT-LCD color display.
• Automatic Satellite identification.
• Readout of NIT - gives SAT ID and TV/Radio-channel info.
• Digital BER and S/N-ratio (DVB-S, S/2).
• QPSK and 8PSK constellation diagram.
• DVB-S (Free to Air) and SAT-analog TV-picture.
