9 kHz to 1.5, 3.2, or 7.5 GHz Frequency Range
Displayed Average Noise Level (DANL) normalized to 1 Hz ranging from -135 dBm to -161 dBm typical
-80 to -98 dBc/Hz @10 kHz offset Phase Noise
Total Amplitude Uncertainty from <1.5 dB to <0.8 dB nominal
100 or 10 Hz Minimum Resolution Bandwidth (RBW) available

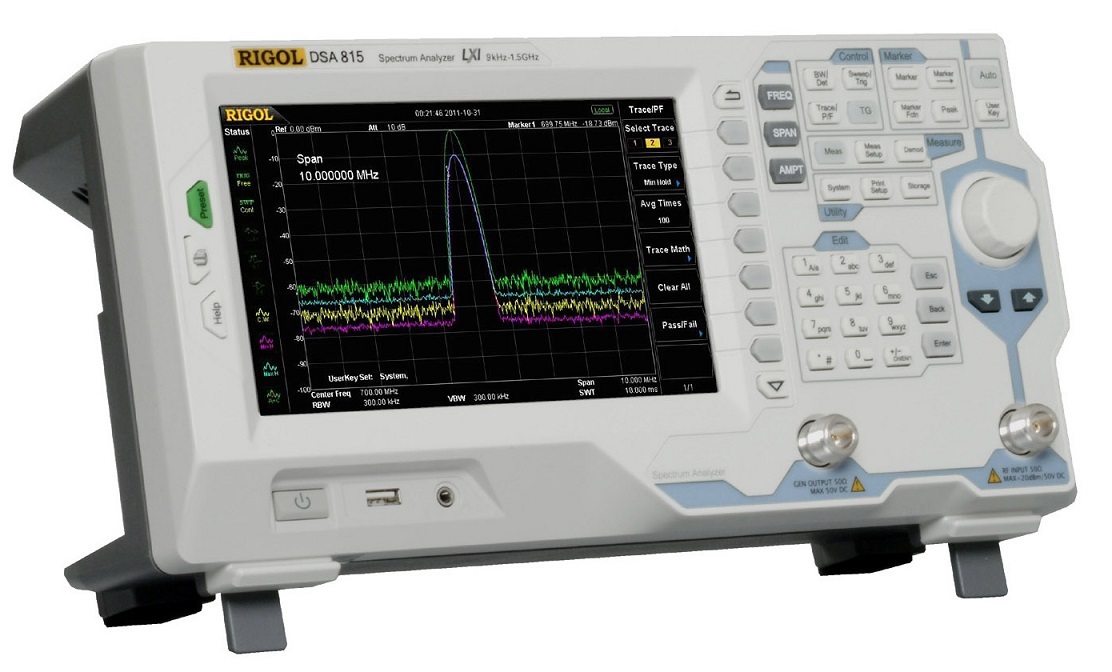

Rigol's new DSA800 series spectrum analyzers redefine the product category by setting new standards for performance and price. The DSA800 family features a unique widescreen display, compact design and easy-to-use interface and operations, making it ideal for benchtop or field apps in RF and wireless testing and production. The new spectrum analyzer offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The DSA815 also distinguishes between signals with a frequency difference as little as 100 Hz. The DSA832 and DSA875 have RBW settable down to 10 Hz and a DANL (displayed average noise level) down to -161 dBm (typical). In addition, Rigol offers great options including an EMI filter and quasi-peak detector kit, and tracking generator for all of these models. A Preamplifier is standard on the DSA815, but is an option on the DSA832 or DSA875. Whether your application is radio verification at 455 MHz or monitoring the 3rd harmonic of 2.4 GHz signals find the right spectrum analyzer in the updated DSA800 family.

DSA815	DSA815-TG	DSA832	DSA832-TG	DSA875	DSA875-TG
Frequency
Frequency Range	9 kHz to 1.5 GHz		9 kHz to 3.2 GHz		9 kHz to 7.5 GHz
Frequency Resolution	1 Hz
SSB Phase Noise	20° to 30°, fc=1GHz
Carrier Offset
10kHz	<-80dBc/Hz		<-98dBc/Hz
100kHz	<-100dBc/Hz (typ.)		<-100dBc/Hz (typ.)
1MHz	<-115dBc/Hz (typ.)		<-120dBc/Hz (typ.)
Bandwidths
Resolution Bandwidth (-3dB)	100 Hz to 1 MHz, in 1-3-10 sequence		10 Hz to 1 MHz, in 1-3-10 sequence
Displayed Average Noise Level(DANL)	0 dB RF Attenuation, RBW=VBW=100Hz, Sample Detector, Trace Average = 50, Tracking generator OFF, normalized to 1Hz, 20° to 30° ,input terminated 50O, PA On
5 MHz to 1.5GHz	<-150dBm, <-155dBm (typ.)		<-157dBm, <-161dBm (typ.)
1.5 GHz to 3.2 GHz
3.2 GHz to 6 GHz					<-153dBm, <-157dBm (typ.)
6 GHz to 7.5 GHz					<-148dBm, <-152dBm (typ.)
