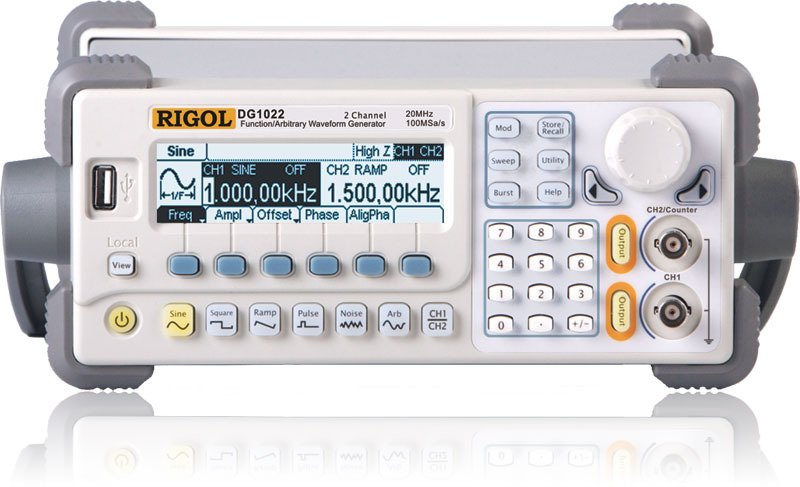

Rigol DG1022A Generator semnal arbitrar 25MHz 2-canale

Cod: RIGOL DG1022A



Brosura produs PDF, 0.22 Mb

Descriere

DG1022A       25 MHz, (2) ch, 14 bit, 100MS/s

DG1022          20 MHz, (2) ch, 14 bit, 100MS/s





  • Generators up to 25 MHz (5 MHz max square wave)
  • 2 output channels
  • Advanced Direct Digital Synthesis(DDS) technology
  • Monochrome LCD display
  • 3.5 standard waveforms and DC outputs. 48 preset arbitrary waveforms, 10 groups of 4kpts arbitrary waveforms.
  • Multi modulation functions: AM, FM, PM, FSK, and linear/logarithm Sweep and Pulse train waveform outputs
  • Connectivity: USB Host, USB Device.





Model

DG1022

DG1022A

Maximum Output Frequency

20 MHz (5 MHz square wave)

25 MHz (5 MHz square wave)

Output Channels

2

2

Sample Rate

100 MSa/s

100 MSa/s

Arbitrary Waveform Length

CH1

2 pts - 4kpts

2 pts - 4kpts

CH2

2pts - 1kpts

2pts - 1kpts

Resolution

1 µHz

1 µHz

Amplitude

CH1

2 mVpp ~ 10 Vpp(50 O),4 mV ~ 20 Vpp(High Z)

2 mVpp ~ 10 Vpp(50 O),4 mV ~ 20 Vpp(High Z)

CH2

2 mVpp ~ 3 Vpp(50 O),4 mV ~ 6 Vpp(High Z)

2 mVpp ~ 3 Vpp(50 O),4 mV ~ 6 Vpp(High Z)

Vertical Resolution

CH1

14 bits

14 bits

CH2

10 bits

10 bits

Standard Interface

USB Host & Device

USB Host & Device
