Inregistrator perturbatii putere si captura anomalii retea electrica Weis FR100

Cod: Weis FR100

Brosura produs

PDF, 0.81 Mb

Descriere

Weis is a specialist company with over 40 years of experience in the commissioning, testing & maintenance of switchgear and power network fault monitoring within the Power Utility Industry.

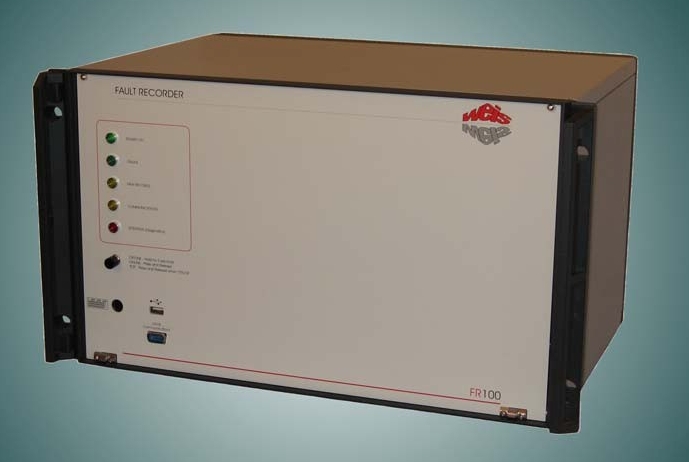

The Fault Recorder (FR100) is an essential substation preventative maintenance tool and aid for power utilities with ever increasing demands for more reliable low cost energy and on-time maintenance.

The high speed, high resolution recording and flexible triggering modes make the Weis Fault Recorder ideal for capturing power network faults / disturbances. It can be used for verifying protection / breaker operation as well as monitoring power quality.

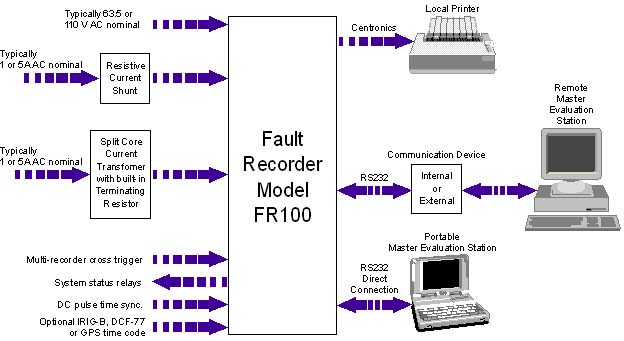

The FR100 is typically part of an integrated monitoring network with multiple FR’s located within substations over a region, and a Windows™ based Master Evaluation Station normally located at the regional control centre running Weis Communication, Configuration and Analysis software. Communications between the Master Evaluation Station and the FR’s is normally by plug-in data modems using the local telephone exchange, but other networks can be supported.

An optional built in screen and external keyboard with trackball may be provided for local configuration and analysis.

8 TO 32 ANALOGUE CHANNELS
16 TO 128 DIGITAL CHANNELS
MULTI-RECORDER CROSSTRIGGERING TO FORM LARGER SYSTEMS
SIMULTANEOUS SAMPLING UP TO192 SAMPLES PER CYCLE ON ALL CHANNELS
12-BIT A/D RESOLUTION

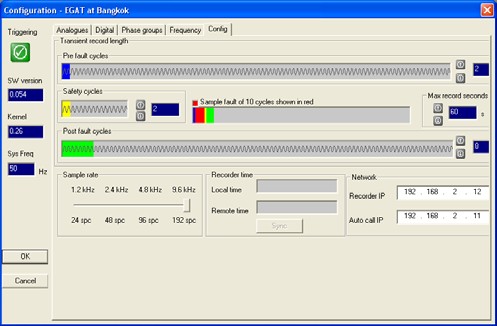

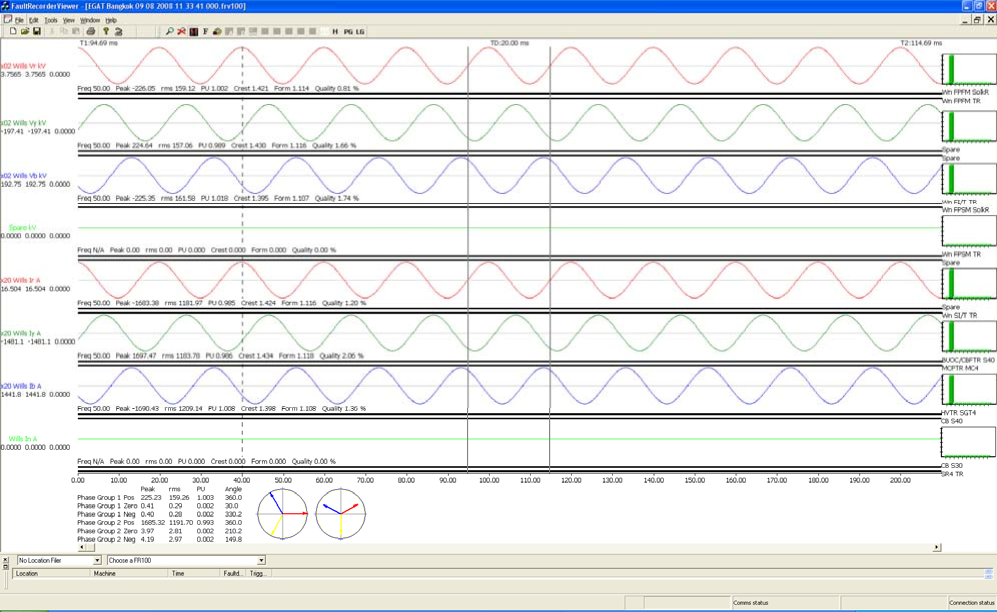

FAULT RECORDER VIEWER 32-BIT SOFTWARE FOR COMMUNICATION, CONFIGURATION AND ANALYSIS

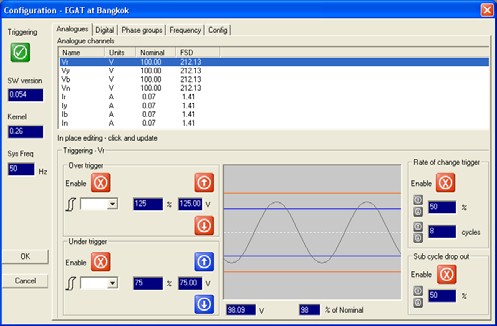

SOFTWARE TRIGGERS AVAILABLE ON ALL CHANNELS SIMULTANEOUSLY
ANALOGUE: OVER, UNDER, RATE of CHANGE, SINEWAVE QUALITY
DIGITAL: ON ALARM WITH RETURN to NORMAL OPTION
ADDITIONAL SOFTWARE ANALOGUE TRIGGERS AVAILABLE
ONE SET OF ZERO SEQUENCE & NEGATIVE SEQUENCE PER 4 CHANNELS
ONE SET OF FREQUENCY OVER, UNDER & RATE of CHANGE PER CHASSIS
DC PULSE OR OPTIONAL IRIG-B (TIME CODE), DCF77 (RADIO) OR GPS (SATALITE) TIME SYNCHRONISATION
6U HIGH 19" RACK MOUNTING
SUITABLE FOR PORTABLE APPLICATIONS WITH OPTIONAL CARRY CASE

Optiuni recomandate

FR100 Fault Recorder 8A/16D

FR100 Fault Recorder 16A/32D

FR100 Fault Recorder 24A/48D

FR100 Fault Recorder 32A/64D

Built-in PC Option

External Printer

Shunt - Please specify value

Alte produse NEC

Brand: Weis

TRUSA MINUT PENTRU MASURAREA TIMPILOR DE COMUTATIE ACTIONARE WEIS SA100S

• Contact Resistance Threshold: 15 - 10,000 ohms
• Digital Resolution: 100µSec
• Up to a sequence of 3 operations detailing 3-phase information: Peak coil current, operate times and operate time spread (main / resistive), bounce time.
• Test times: Close, Open, Trip Free, Close-Open, Open-Close, Open-Close-Open.
• Coil operate times: Initial delay, trip coil "on-time", close coil "on-time", delay time between closing and opening, delay time between opening and closing.
• Backlit 4 line x 40 character LCD display, Alpha / numeric keypad
• Built in printer, RJ45 network port, RS232, Audible buzzer, PS2 socket, VGA port
• extremely light-weight & quick tool to check basic Circuit Breaker Timing
• intended for use in Power Station, Substation & industrial environments

Brand: Weis

TESTER RELEE DE PROTECTIE INJECTIE SECUNDAR WEIS RT100

• designed for the testing of protective relay equipment
• for use in high voltage substations and industrial environments
• Output parameters are displayed on a large backlit LCD display
• True RMS AC Measurement

Brand: Weis

SURSA PUTERE CURENT-TENSIUNE AC/DC WEIS PS200

• AC Power: 0..280V AC, 50A peak
• DC Power: 0..280V DC, 50A peak
• variable power source, mainly for Switchgear Testing
• nstrument intended for use in Power Station, Substation & industrial environments
• ideal alternative power source for testing the breaker
• minimum operating voltage testing of breaker coils

Brand: Weis

SIMULATOR DE TEST INRERUPATOARE SI CONTACTE REZISTIVE WEIS SS100

• can be performed coil operation, current measurement, main contact timing
• resistive contact timing, travel and velocity measurements, trip free testing
• dynamic timing with both ends earthed
• parallel contact switching resistor measurement
• Simulation of contact timing with 3 Main and 3 Resistive breaks

Brand: Weis

SURSA DE PUTERE AC/DC TESTARE INTRERUPATOARE SI COMUTATOARE DE CONTACT WEIS PS100

• AC Power: 0..280V AC, 30A peak
• DC Power: 0..280V DC, 30A peak
• variable power source, mainly for Switchgear Testing
• nstrument intended for use in Power Station, Substation & industrial environments
• ideal alternative power source for testing the breaker
• minimum operating voltage testing of breaker coils

Brand: Weis

MICROHMMETRU MASURARE REZISTENTE MICI CU CURENT INALT 600A WEIS MM600

• typically 600A DC current output, limited to 750A DC, dependant on loop impedance
• Resistance Range: 0 to 199.9µ? or 0 to 1999µ?
• Resolution: 0.1 or 1µO (range dependant)
• self powered with Internal sealed rechargeable batteries

Brand: Weis

INREGISTRATOR PERTURBATII PUTERE SI CAPTURA ANOMALII RETEA ELECTRICA WEIS FR100

• 8 TO 32 ANALOGUE CHANNELS
• 16 TO 128 DIGITAL CHANNELS
• 12-BIT A/D RESOLUTION
• FAULT RECORDER VIEWER 32-BIT SOFTWARE FOR COMMUNICATION, CONFIGURATION AND ANALYSIS

Brand: Weis

MICROHMMETRU REZISTENTE MICI 200A WEIS MM200

• 100A or 200A pure DC current output
• Resistance Range: 0 to 199.9µ? or 0 to 1999µ?
• Resolution: 0.1 or 1µO (range dependant)
• self powered with Internal sealed rechargeable batteries

Brand: Weis

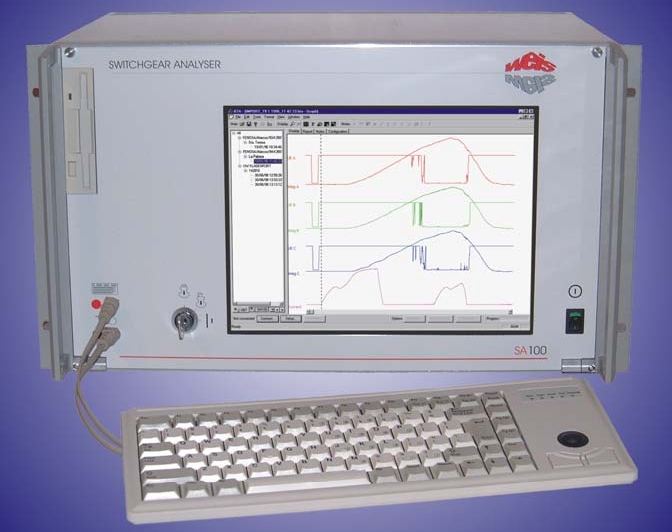

ANALIZOR DE INRERUPATOARE WEIS SA100
