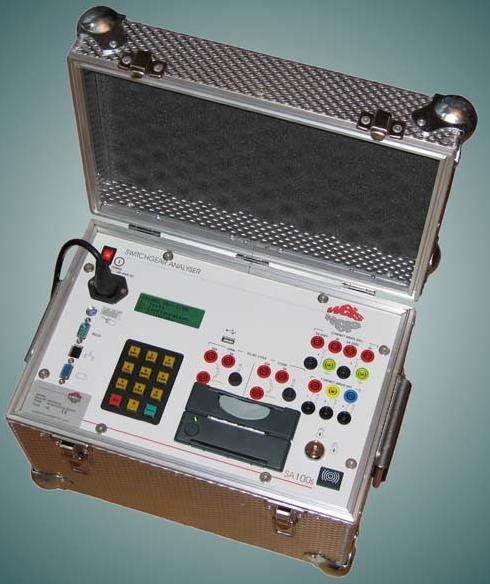

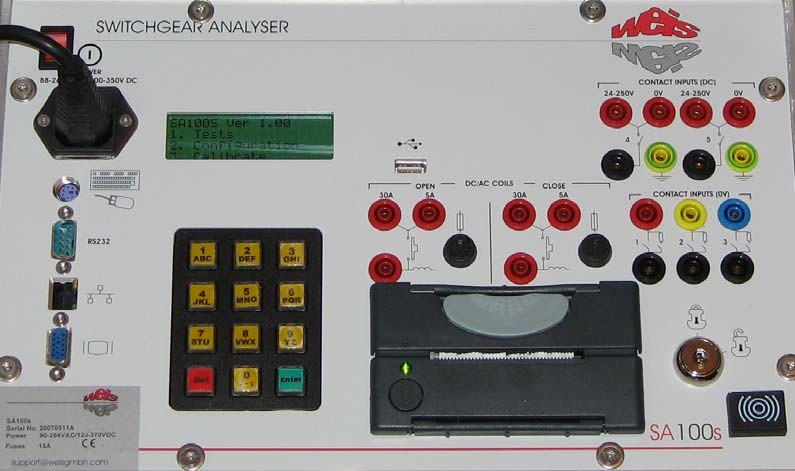

Trusa minut pentru masurarea timpilor de comutatie actionare Weis SA100s

Cod: Weis SA100s



Brosura produs PDF, 0.36 Mb


Descriere

  • extremely light-weight & quick tool to check basic Circuit Breaker Timing
  • intended for use in Power Station, Substation & industrial environments
  • Contact Threshold: 15 - 10,000 ohms
  • Digital Resolution: 100µSec
  • Backlit 4 line x 40 character LCD display, Alpha / numeric keypad
  • Built in printer, RJ45 network port, RS232, Audible buzzer, PS2 socket, VGA port

The SA100s Switchgear Analyser is an extremely light-weight & quick tool to check basic Circuit Breaker Timing and is an instrument intended for use in Power Station, Substation & industrial environments.

As the latest addition to our SA100 series, the s version is based on well established and proven technology used worldwide. Results are printed out and viewable on a built-in display, which also serves as a backup should printer paper not be immediately available.


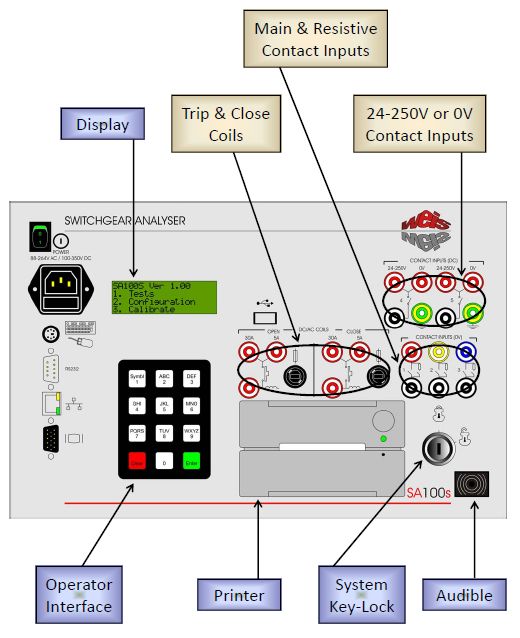

INPUTS

Analogue: 1 x Independently controlled trip (open) and close coil current inputs.

Analogue Accuracy: <0.5% of fullscale.

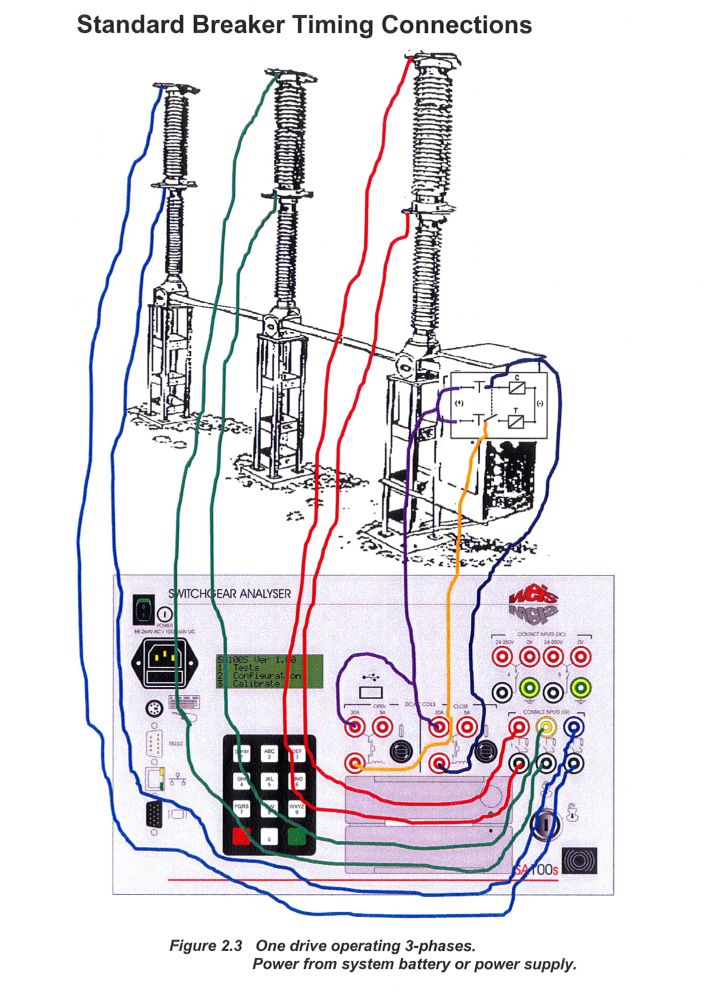

Digital: 6 x Contact status inputs providing timing of up to 3 main contacts and 3 resistive contacts (‘dry’ contacts).

2 x User configurable input for ‘wet’ or ‘dry’ contact timing (24 - 250V DC or 0V DC).

Contact Threshold: 15 - 10,000 ohms.

Digital Resolution: 100µSec.

Connectors: 4mm safety socket.



OUTPUTS

Coil Operation: Solid state outputs for trip (open) and close.

Coil Peak Current: 5A (accuracy 2.5mA) or 30A (accuracy 15mA) AC/DC measurement ranges selectable via input sockets.

Other measurement ranges possible via optional external shunt; for example 50A Peak (up to 75mS

duration) or 100A Peak (up to 50mS duration).

Coil Max. Voltage: 400V peak.



RECORDING

Resolution: 12 bit A/D (1:4096) and 10 kHz sampling rate.

Recording Time: Selectable up to 1 second.

Synchronisation: All inputs sampled simultaneously.

Start trigger: Coil current or selectable on any digital input.



GENERAL SYSTEM

Backlit 4 line x 40 character LCD display. Built in printer. Alpha / numeric keypad. RJ45 network port. RS232 serial port.

Audible buzzer. Safety keyswitch to enable / disable coil operation. PS2 socket. VGA port.



REAL-TIME CLOCK

Range: Time, date, leap year and day of the year with internal battery backup. 100mS resolution.



PROGRAMMING - SETTABLE PARAMETERS

User strings: Site name, breaker number, breaker type, line name and operator name.

Test times: Close, Open, Trip Free, Close-Open, Open-Close, Open-Close-Open.

Coil operate times: Initial delay, trip coil "on-time", close coil "on-time", delay time between closing and opening, delay time between opening and closing.



COMPUTED RESULTS

Up to a sequence of 3 operations detailing 3-phase information:

Peak coil current, operate times and operate time spread (main / resistive), bounce

time.



OPERATING VOLTAGES

Prime Power: 100 to 370V DC, 90 to 264V AC auto-sensing via IEC power connection. Burden <20 VA.



ENVIRONMENTAL

Operating Temp.: -20ºC to +70ºC (-4ºF to +158ºF)

Humidity: 0 to 97% RH non-condensing.

Isolation: 2kV rms for 1 minute (channel to channel, channel to earth).

Surge Withstand: To IEC 801-5. 1.2/50µS.

(Transient) Common Mode: Severity level class 4. Series Mode: Severity level class 3.

Fast Transient Burst: To IEC 801-4 level 3.

RFI Immunity: To IEC801-3 level 3. 10V/m 26-1000MHz.

Emissions: To EN50081-1: 1992.



MECHANICAL DETAILS

Enclosure: Reinforced aluminium, 370mm(W) x 245mm(H) x 180mm(D).

Weight: <4kg



Also available within our range of switchgear test equipment:

  • SA100, Switchgear Analyser
  • SA100 R, Switchgear Analyser
  • PS100, Power Supply
  • MM100, Micro-ohm Meter
  • RT100, Secondary Injection Relay Test Set
  • SA200, Automated Factory Test System
