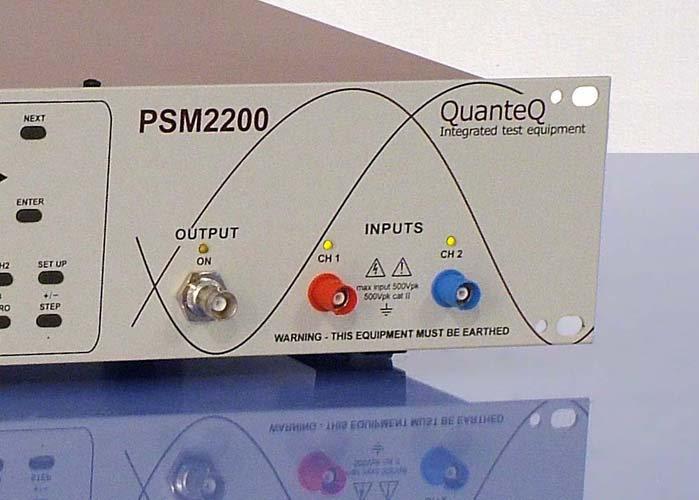

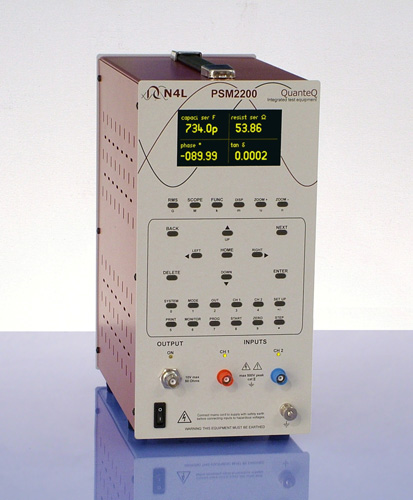

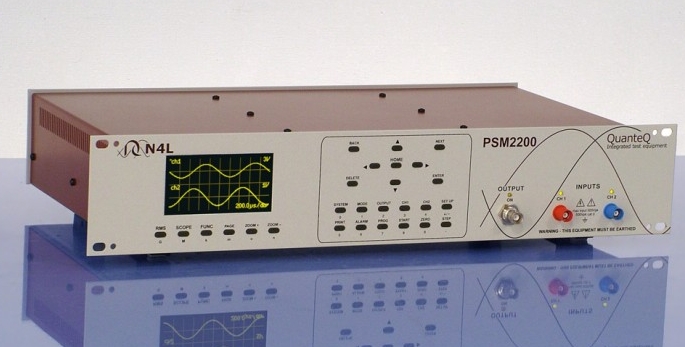

	PSM2200 High voltage	PSM1700 General purpose	PSM1735 High frequency

Frequency range	100µHz to 2.4MHz	10µHz to 1MHz	10µHz to 35MHz
Input type	Isolated 500 Vpk	Floating differential	Full differential
Inputs	2	2	2
Maximum range	500 Vpk	100 Vpk	10 Vpk
Minimum range	10 mVpk	10 mVpk	1 mVpk
Outputs	1	1	1
Maximum output level	10 V dc and ac pk	10 V dc and ac pk	10 V dc and ac pk
Gain accuracy at < 1 kHz	0.02 dB	0.02 dB	0.01 dB
Gain accuracy at < 100 kHz	0.3 dB	0.2 dB	0.1 dB
Gain accuracy at < 1 MHz	1.2 dB	1.1 dB	0.14 dB
Phase accarcy at < 1 kHz	0.05°	0.02°	0.01°
Phase accuracy at < 100 kHz	0.7°	0.3°	0.06°
Phase accuracy at < 1MHz	5°	3°	0.15°
Signal generator	Sine, triangle, square, sawtooth	Sine, triangle, square, sawtooth	Sine, square
Auto G/P margin		x	x
High speed sweep		x	x
Display
Type	EL	LCD	LCD
Resolution	160 x 80	320 x 240	320 x 240
Interface
RS232	x	x	x
GPIB	option	option	option
LAN		option	option
Compatible accessories
LCR Active Head		x	x
Impedance Analysis Interface		x	x
Injection Transformer	x	x	x
Power Meter Adapter	PSM2	PSM1	PSM1
High Current Precision Shunt	x	x	x

Accesorii standard
