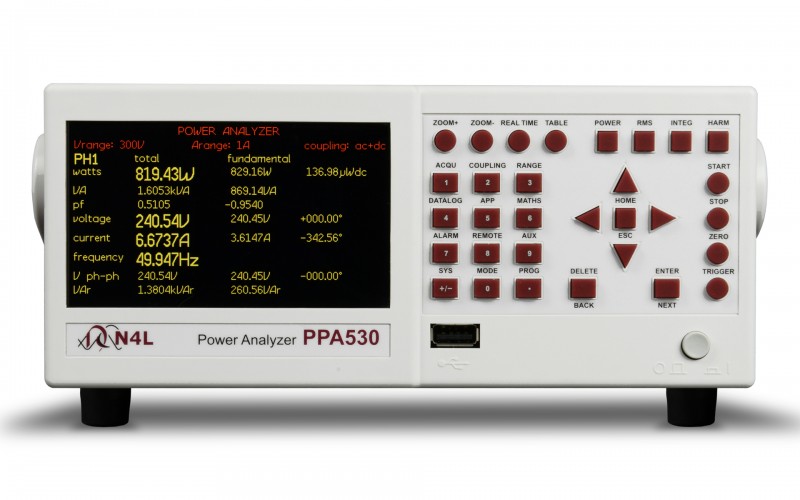

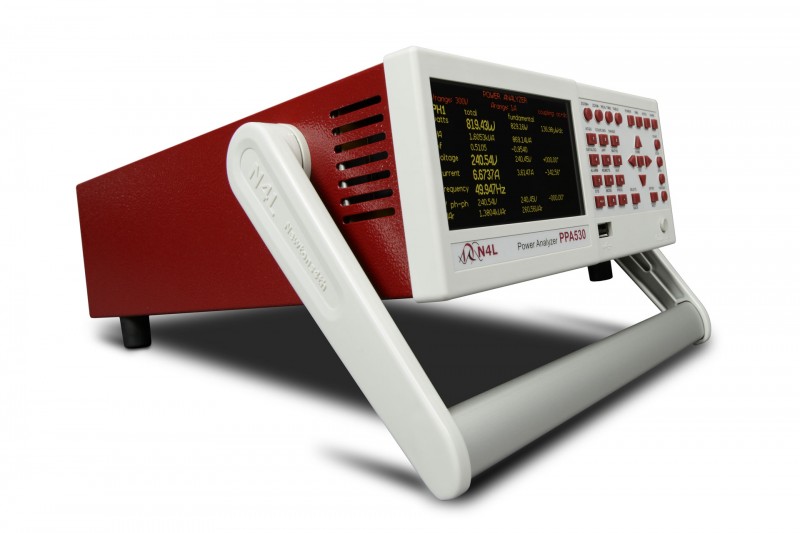

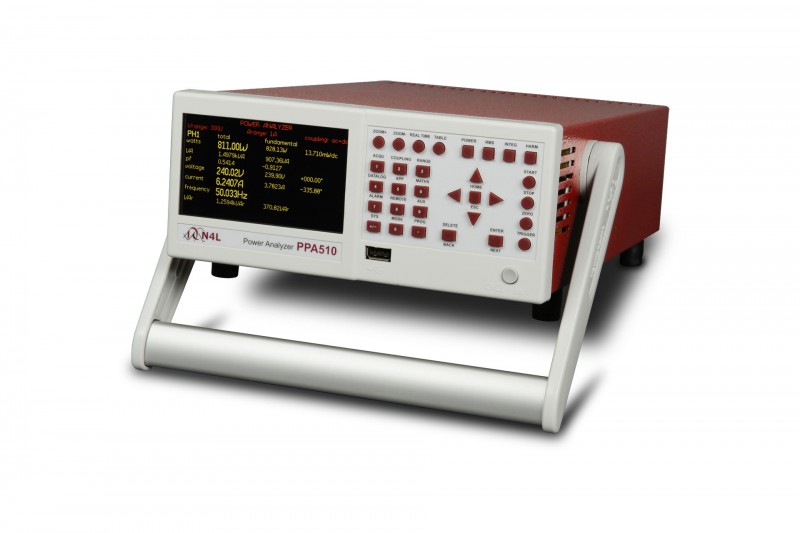

Analizor calitate putere 1,2 sau 3 faze DC..500kHz N4L PPA500

Cod: N4L PPA500


Brosura produs 1 PDF, 11.52 Mb


Descriere

  • 0.05% Basic accuracy
  • Frequency range DC and 10mHz to 500kHz
  • High precision internal shunts
  • Superior accuracy to any external shunt
  • 10 millidegree phase accuracy – Necessary for low power factor applications
  • 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input
  • Unique x10 gain mode for Standby Power measurement
  • High speed sampling on all channels
  • True real time analysis with no measurement gap
  • 1, 2 or 3 phase versions
  • High contrast full colour graphic display
  • Simple BNC connection of N4L shunts for high current applications
  • RS232, USB, LAN, Extension and Auxiliary ports


Accesorii standard

  • Leads Power,
  • RS232, USB Connection Cables
  • 20A (Std version) or 30A (HC version) 1.5m long 4mm stackable terminals. 1x red, 1x yellow and 2x black per phase
  • Connection Clips 4mm terminated aligator clips - 1x red, 1x yellow and 2x black per phase
  • Instruction Manual
  • User manual
  • Communications manual
  • Other Documents: Calibration certificate, Quick start guide
