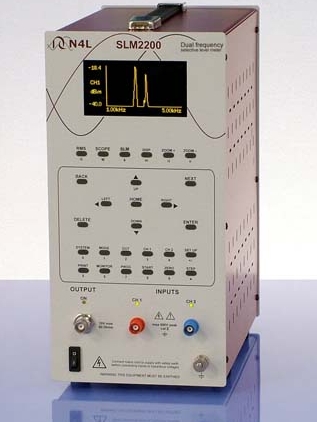

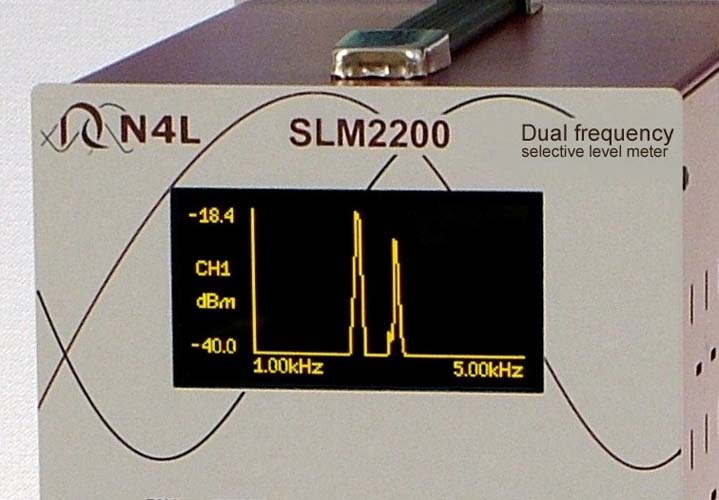

Power metru selectiv de nivel inalta tensiune 10mHz..2MHz N4L SLM2200

Cod: N4L SLM2200


Brosura produs 1 PDF, 0.18 Mb


Descriere

  • Frequency range 10mHz to 2MHz
  • Dual frequency SLM mode
  • RMS Voltmeter
  • Floating differential inputs – 500 Vpk
  • Oscilloscope mode
  • FSK Simulation

Comparison Chart




SLM1700
Economy

SLM2200
Isolated HV input

SLM3505
Colour portable

Measurement
channels:

Frequency range

10mHz to 1MHz

10mHz to 2MHz

5Hz to 5MHz

Inputs

2

2

1 x 10Vpk 1MO
1 x 10Vpk with
(3 x selectable O)
1 x 100Vpk 50O
1 x 300Vpk 1M O
1 x unbalanced pair

Input design

Single ended differential floating to ±100V

±500V pk isolated

±300Vpk isolated

Generator:

Low level

10V pk

10V pk

10Vpk

Hi level





2W into 50O (35Vpk)

Waveforms

sine, triangle, square, sawtooth, DC

sine, triangle, square, sawtooth, FSK,
harmonics DC

sine, square, triangle, white noise

Functions:

Selective Level Meter

x

x

x

RMS Voltmeter

x

x

(ac only)

Signal generator

x

x

x

Impedance analyzer

x



x

Oscilloscope

x

x

x

VSWR





x

Hardware:

Display

Mono LCD

Electroluminescent

Colour LCD

Data storage memory

124k

124k

1GB

USB memory stick port





x

RS232

x

x

x

GPIB

x

x



LAN

x



x

USB comms





x

Universal Line Power

x

x

Via Adaptor

Internal battery operation





x

12 Volt external power input





x



Alte produse N4L

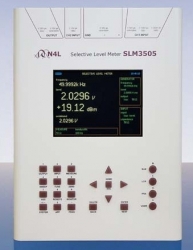

POWER METRU PORTABIL DE NIVEL SI PRECIZIE 5HZ..5MHZ N4L SLM3505
