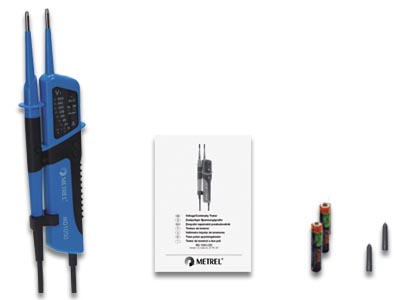

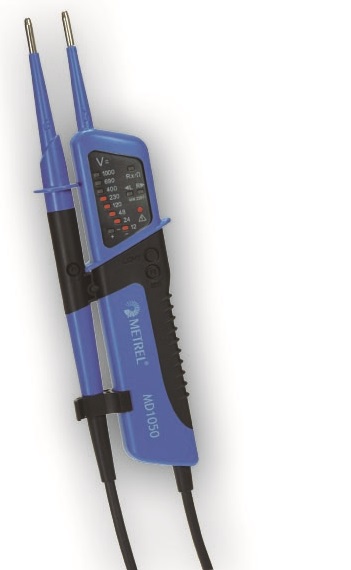

Tester tensiune 1000V si continuitate Metrel MD 1050

• PAT Demoboard is intended for demonstration of electrical equipment safety management.
• Presentation of safety management of electrical equipment in seminars, courses.
• Presentation of typical safety problems on electrical equipment.
• Practical demonstration of measuring instruments (performing tests, making right connections, analysing measured results).
• Continuity of equipotential bonding
• Insulation resistance
• Leakage current
• Touch leakage current
• Polarity of cables
• Functional operation



• Functional and visual inspection;
• Earth bond resistance;
• Insulation resistance;
• Substitute leakage current;
• Differential leakage current test;
• Touch leakage test;
• IEC cord polarity test;



• meets overvoltage category CAT IV 1000 V
• TRMS AC, DC voltage measurement;
• TRMS AC, DC current measurement;
• Capacitance measurement;
• Resistance measurement;
• Diode test;
• Frequency measurement;
• Electric field detection;
• Continuity test (acoustic signaling);
• Temperature measurement.



• Testing of single and 3-phase ARC Welding equipment.
• Professional 3-phase portable appliance testing.
• Professional 3-phase machine testing
• Testing of Open-Circuit Voltage at ARC Welding Units in accordance to EN 60974-4.
• All tests on 3-phase electrical equipment can be carried out including live leakage test, power, polarity, RCD and Active polarity.
• Simple connection to the PAT/MACHINE tester with automatic detection



• Insulation resistance with DC voltage
• Continuity of PE conductors with 200 mA test current with polarity change
• Continuity of PE conductors with 7 mA test current (continuous measurement) without RCD tripping
• Line impedance
• Loop impedance
• Loop impedance with Trip Lock RCD function
• TRMS voltage and frequency
• Phase sequence
• RCD testing (general and selective, type AC, A and B)
• Earth resistance (3-wire method).



• Earth bond / continuity resistance (200 mA, 10 A)
• Insulation resistance
• Insulation resistance of isolated accessible conductive parts
• Substitute leakage current
• Substitute leakage current of isolated accessible conductive parts
• Differential leakage current
• Touch leakage current
• IEC cord polarity test



• Bidirectional resistance measurement from 1 µO up to 199,9 O
• test current up to 2 A
• High overvoltage protection (CAT III / 600 V)
• Internal protection cicuit
• 50 Hz / 60 Hz ripple detection and rejection.
• more than 800 measurements of 500 mO load 8 2 A test current & 15 s measurement duration
• Pre-programmed limits with PASS/FAIL evaluation of measurement result
• Up to 1500 test results with timestamp can be stored in internal memory.
• PC SW HVLink PRO enables downloading, review, analyses and printing of test results.



• Voltage testing up to 1000 V
• Automatic AC/DC recognition
• Continuity buzzer and led to indicate resistances below 500 k?
• Phase & Rotating Field Test
• RCD trip testing
• Diode Test
• Auto Power Off



• Simulation of common electrical installation usually met in an individual house or apartment
• Various test methods supported by different test instruments can be presented.
• Acceptable or faulty parameters can be preset by five »fault« switches.
• Some real elements of electrical installation are placed on the front panel like RCD protection device, ON/OFF switch



• Adjustable test voltage from 250 V to 5000 V in 50 V steps.
• Resistance measuring range 5 T?.
• Adjustable measuring time from 1 second to 90 minutes.
• Automatic PI, DAR and DD index calculation and capacitance measurement up to 50µF.
• Automatic load discharge after completed measurement.
• Guard terminal for elimination of insulation surface currents.
• AC and DC voltage measurement up to 600 V.
